Search › Model › SXE10

SXE10

Toyota ALTEZZA-ALTEZZA-GITA · 1998 · 6,439 parts · 230 categories

6,439 items

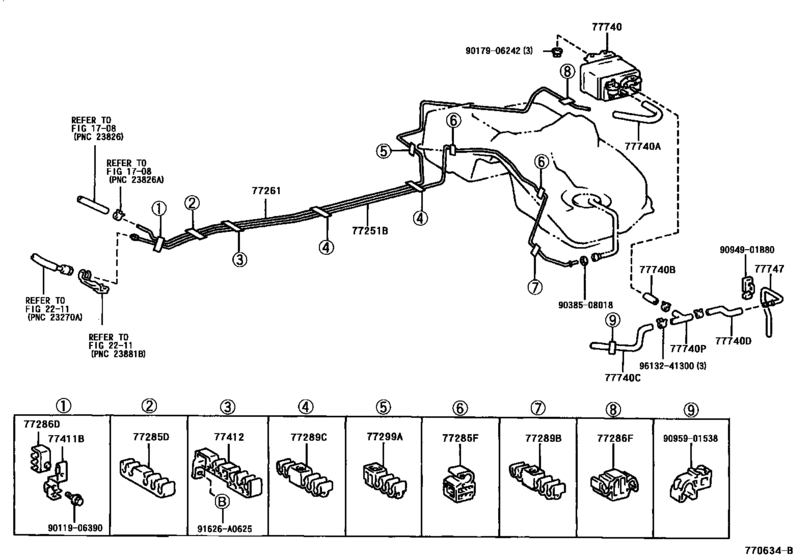

Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10) 40

#	OEM	Part name
77251	77251-53010	Tube, Fuel Main
77261	77261-53010	Tube Sub-Assy, Fuel Emission
77261	77261-53011	Tube Sub-Assy, Fuel Emission
77261	77261-53050	Tube Sub-Assy, Fuel Emission
77285	77285-51010	Clamp, Fuel Tube, No.1
77285	77285-53010	Clamp, Fuel Tube, No.1
77286	77286-30100	Clamp, Fuel Tube, No.1
77286	77286-53010	Clamp, Fuel Tube W/grommet, No.1
77289	77289-30050	Clamp, Fuel Tube, No.4
77289	77289-51010	Clamp, Fuel Tube, No.4
77299	77299-51010	Clamp, Brake Tube, No.5
77411	77411-22030	Support, Fuel Tube Grommet, No.1
77412	77412-53010	Support, Fuel Tube Grommet, No.2
77740	77740-22460	Canister Assy, Charcoal
77740	77740-51010	Canister Assy, Charcoal
77740	23829-46140	Hose, Fuel, No.1(For Charcoal Canister)
77740	23829-46300	Hose, Fuel, No.1(For Charcoal Canister)
77740	23826-70020	Hose, Fuel, No.2(For Charcoal Canister)
77740	95328-07006	Hose, Fuel, No.2(For Charcoal Canister)
77740	23829-46320	Hose, Fuel, No.2(For Charcoal Canister)
77740	95328-07004	Hose, Fuel Vapor Feed, No.1
77740	23829-74120	Hose, Fuel, No.2(For Charcoal Canister)
77740	23829-46230	Hose, Fuel, No.3(For Charcoal Canister)
77740	23829-46270	Hose, Fuel, No.1(For Charcoal Canister)
77740	23829-46280	Hose, Fuel, No.3(For Charcoal Canister)
77740	23829-46310	Hose, Fuel, No.4(For Charcoal Canister)
77740	23829-70020	Hose, Fuel, No.4(For Charcoal Canister)
77740	90413-07002	Way, 3(For Charcoal Canister)
77747	77747-51010	Pipe, Charcoal Canister, No.1
77747	77747-53010	Pipe, Charcoal Canister, No.1
77747	77747-53020	Pipe, Charcoal Canister, No.1
91626	91626-A0625	New Genuine Part
9094901	90949-01B80	Clamp, Tube
9011906390	90119-06390	BOLT WWASHER
9017906242	90179-06242	Direct
9017906242	90179-06274	Nut
9038508018	90385-08018	New Genuine Part
9095901538	90959-01538	New Genuine Part
9613241300	96132-41300	Clip, No.4(For Idle-Up Hose)
9613241300	96132-51300	Clip(For Ventilation Hose No.2)

OEM	Part name	Category
23826-70020	Hose, Fuel, No.2(For Charcoal Canister)	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
23829-46140	Hose, Fuel, No.1(For Charcoal Canister)	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
23829-46230	Hose, Fuel, No.3(For Charcoal Canister)	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
23829-46270	Hose, Fuel, No.1(For Charcoal Canister)	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
23829-46280	Hose, Fuel, No.3(For Charcoal Canister)	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
23829-46300	Hose, Fuel, No.1(For Charcoal Canister)	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
23829-46310	Hose, Fuel, No.4(For Charcoal Canister)	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
23829-46320	Hose, Fuel, No.2(For Charcoal Canister)	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
23829-70020	Hose, Fuel, No.4(For Charcoal Canister)	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
23829-74120	Hose, Fuel, No.2(For Charcoal Canister)	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
77251-53010	Tube, Fuel Main	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
77261-53010	Tube Sub-Assy, Fuel Emission	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
77261-53011	Tube Sub-Assy, Fuel Emission	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
77261-53050	Tube Sub-Assy, Fuel Emission	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
77285-51010	Clamp, Fuel Tube, No.1	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
77285-53010	Clamp, Fuel Tube, No.1	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
77286-30100	Clamp, Fuel Tube, No.1	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
77286-53010	Clamp, Fuel Tube W/grommet, No.1	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
77289-30050	Clamp, Fuel Tube, No.4	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
77289-51010	Clamp, Fuel Tube, No.4	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
77299-51010	Clamp, Brake Tube, No.5	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
77411-22030	Support, Fuel Tube Grommet, No.1	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
77412-53010	Support, Fuel Tube Grommet, No.2	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
77740-22460	Canister Assy, Charcoal	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
77740-51010	Canister Assy, Charcoal	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
77747-51010	Pipe, Charcoal Canister, No.1	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
77747-53010	Pipe, Charcoal Canister, No.1	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
77747-53020	Pipe, Charcoal Canister, No.1	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
90119-06390	BOLT WWASHER	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
90179-06242	Direct	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
90179-06274	Nut	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
90385-08018	New Genuine Part	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
90413-07002	Way, 3(For Charcoal Canister)	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
90949-01B80	Clamp, Tube	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
90959-01538	New Genuine Part	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
91626-A0625	New Genuine Part	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
95328-07004	Hose, Fuel Vapor Feed, No.1	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
95328-07006	Hose, Fuel, No.2(For Charcoal Canister)	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
96132-41300	Clip, No.4(For Idle-Up Hose)	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
96132-51300	Clip(For Ventilation Hose No.2)	Fuel Tank & Tube ([10.1998 - 05.2001] (9810-0105)SXE10)
