Search › Model › SXE10
SXE10

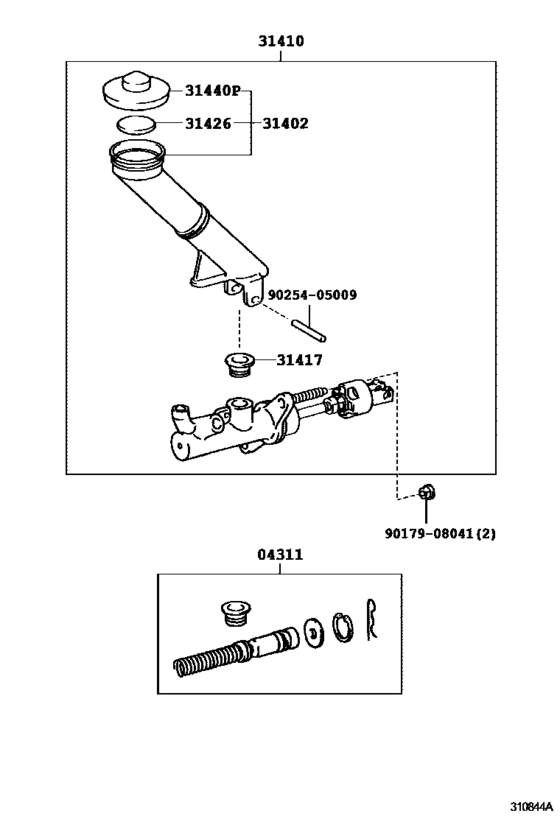

Clutch Master Cylinder ([05.2001 - ] (0105- )MTM) 9
| # | OEM | Part name |
|---|---|---|
| 4311 | 04311-12110 | Cylinder Kit, Clutch Master |
| 31402 | 31402-53010 | Reservoir Sub-Assy, Clutch Master Cylinder |
| 31410 | 31410-53010 | Cylinder Assy, Clutch Master |
| 31417 | 31417-35010 | Grommet |
| 31426 | 31426-22020 | Float, Clutch Master Cylinder Reservoir |
| 31440 | 47230-20040 | Cap, Clutch Master Cylinder Reservoir Filler |
| 9017908041 | 90179-08041 | NUT |
| 9017908041 | 90179-08017 | NUT |
| 9025405009 | 90254-05009 | New Genuine Part |
| OEM | Part name | Category |
|---|---|---|
| 04311-12110 | Cylinder Kit, Clutch Master | Clutch Master Cylinder ([05.2001 - ] (0105- )MTM) |
| 31402-53010 | Reservoir Sub-Assy, Clutch Master Cylinder | Clutch Master Cylinder ([05.2001 - ] (0105- )MTM) |
| 31410-53010 | Cylinder Assy, Clutch Master | Clutch Master Cylinder ([05.2001 - ] (0105- )MTM) |
| 31417-35010 | Grommet | Clutch Master Cylinder ([05.2001 - ] (0105- )MTM) |
| 31426-22020 | Float, Clutch Master Cylinder Reservoir | Clutch Master Cylinder ([05.2001 - ] (0105- )MTM) |
| 47230-20040 | Cap, Clutch Master Cylinder Reservoir Filler | Clutch Master Cylinder ([05.2001 - ] (0105- )MTM) |
| 90179-08017 | NUT | Clutch Master Cylinder ([05.2001 - ] (0105- )MTM) |
| 90179-08041 | NUT | Clutch Master Cylinder ([05.2001 - ] (0105- )MTM) |
| 90254-05009 | New Genuine Part | Clutch Master Cylinder ([05.2001 - ] (0105- )MTM) |
