SXA16

Toyota RAV4-VANGUARD · 1996 · 4,508 parts · 184 categories

← Back to categories

4,508 items

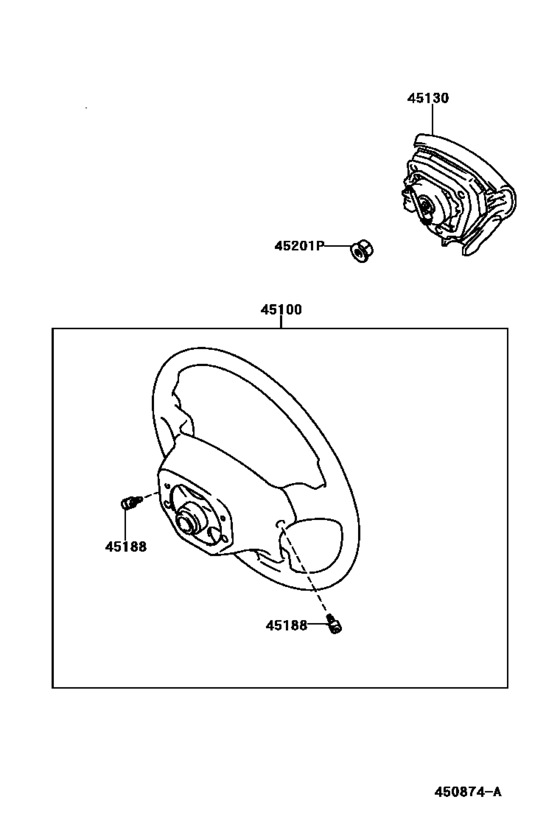

Steering Wheel ([09.1997 - ] 3-SPOKE, W(*80) (9709- )) 9

#	OEM	Part name
45100	45100-42040-C0	Wheel Assy, Steering
45100	45100-42060-C0	Wheel Assy, Steering
45100	45100-42070-C0	Wheel Assy, Steering
45130	45130-14360-C0	Button Assy, Horn
45130	45130-42070-C0	Button Assy, Horn
45188	90148-60007	Screw, Steering Wheel Pad Attaching
45188	90148-60026	Screw, Steering Wheel Pad Attaching
45188	90148-60036	Screw, Steering Wheel Pad Attaching
45201	90179-12071	Nut, Steering Wheel Set

OEM	Part name	Category
45100-42040-C0	Wheel Assy, Steering	Steering Wheel ([09.1997 - ] 3-SPOKE, W(*80) (9709- ))
45100-42060-C0	Wheel Assy, Steering	Steering Wheel ([09.1997 - ] 3-SPOKE, W(*80) (9709- ))
45100-42070-C0	Wheel Assy, Steering	Steering Wheel ([09.1997 - ] 3-SPOKE, W(*80) (9709- ))
45130-14360-C0	Button Assy, Horn	Steering Wheel ([09.1997 - ] 3-SPOKE, W(*80) (9709- ))
45130-42070-C0	Button Assy, Horn	Steering Wheel ([09.1997 - ] 3-SPOKE, W(*80) (9709- ))
90148-60007	Screw, Steering Wheel Pad Attaching	Steering Wheel ([09.1997 - ] 3-SPOKE, W(*80) (9709- ))
90148-60026	Screw, Steering Wheel Pad Attaching	Steering Wheel ([09.1997 - ] 3-SPOKE, W(*80) (9709- ))
90148-60036	Screw, Steering Wheel Pad Attaching	Steering Wheel ([09.1997 - ] 3-SPOKE, W(*80) (9709- ))
90179-12071	Nut, Steering Wheel Set	Steering Wheel ([09.1997 - ] 3-SPOKE, W(*80) (9709- ))
