SXA16

Toyota RAV4-VANGUARD · 1996 · 4,508 parts · 184 categories
SXA16 ×

← Back to categories

4,508 items

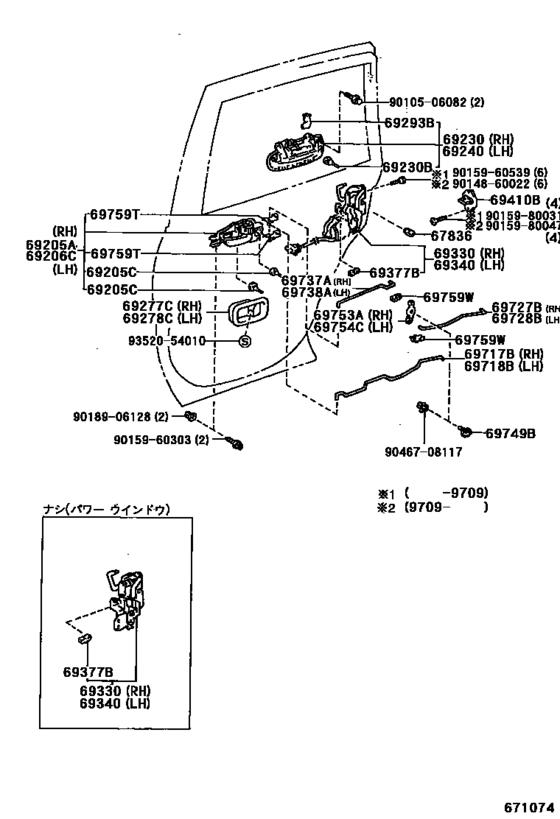

Rear Door Lock & Handle ([04.1995 - ] (9504- )SXA11,15,16) 98
#OEMPart name
67836 67836-42010 Cover, Rear Door Lock Child Protection, Rh
69205 69205-42010-B1 Handle Sub-Assy, Door Inside, Rh
69205 90541-04018 Cushion(For Front Door Inside Handle)
69205 90541-04020 Cushion(For Front Door Inside Handle)
69206 69206-42010-B1 Handle Sub-Assy, Door Inside, Lh
69230 69230-42010 Handle Assy, Rear Door Outside, Rh
69230 69230-12140 Handle Assy, Rear Door Outside, Rh
69230 69230-42020-A0 Handle Assy, Rear Door Outside, Rh
69230 69230-42020-A1 Handle Assy, Rear Door Outside, Rh
69230 69230-12150-A0 Handle Assy, Rear Door Outside, Rh
69230 69230-42020-A2 Handle Assy, Rear Door Outside, Rh
69230 69230-42020-A3 Handle Assy, Rear Door Outside, Rh
69230 69230-42020-B0 Handle Assy, Rear Door Outside, Rh
69230 69230-12150-B5 Handle Assy, Rear Door Outside, Rh
69230 69230-42020-B1 Handle Assy, Rear Door Outside, Rh
69230 69230-42020-C0 Handle Assy, Rear Door Outside, Rh
69230 69230-42020-D0 Handle Assy, Rear Door Outside, Rh
69230 69230-12150-D2 Handle Assy, Rear Door Outside, Rh
69230 69230-42020-D1 Handle Assy, Rear Door Outside, Rh
69230 69230-42020-D2 Handle Assy, Rear Door Outside, Rh
69230 69230-42020-D3 Handle Assy, Rear Door Outside, Rh
69230 69230-42020-D4 Handle Assy, Rear Door Outside, Rh
69230 69230-42020-F0 Handle Assy, Rear Door Outside, Rh
69230 69230-42020-G0 Handle Assy, Rear Door Outside, Rh
69230 69230-12150-Q4 Handle Assy, Rear Door Outside, Rh
69230 69230-42020-G1 Handle Assy, Rear Door Outside, Rh
69230 69230-42020-H0 Handle Assy, Rear Door Outside, Rh
69230 69230-42020-H1 Handle Assy, Rear Door Outside, Rh
69230 69230-42020-J0 Handle Assy, Rear Door Outside, Rh
69230 69230-42020-J4 Handle Assy, Rear Door Outside, Rh
69230 69230-42020-J1 Handle Assy, Rear Door Outside, Rh
69230 69230-12150-R2 Handle Assy, Rear Door Outside, Rh
69230 69230-42020-J2 Handle Assy, Rear Door Outside, Rh
69230 69230-42020-J3 Handle Assy, Rear Door Outside, Rh
69230 90541-04014 Cushion, Console Box
69240 69240-42010 Handle Assy, Rear Door Outside, Lh
69240 69240-12140 Handle Assy, Rear Door Outside, Lh
69240 69240-42020-A0 Handle Assy, Rear Door Outside, Lh
69240 69240-42020-A1 Handle Assy, Rear Door Outside, Lh
69240 69240-12150-A0 Handle Assy, Rear Door Outside, Lh
69240 69240-42020-A2 Handle Assy, Rear Door Outside, Lh
69240 69240-42020-A3 Handle Assy, Rear Door Outside, Lh
69240 69240-42020-B0 Handle Assy, Rear Door Outside, Lh
69240 69240-12150-B5 Handle Assy, Rear Door Outside, Lh
69240 69240-42020-B1 Handle Assy, Rear Door Outside, Lh
69240 69240-42020-C0 Handle Assy, Rear Door Outside, Lh
69240 69240-42020-D0 Handle Assy, Rear Door Outside, Lh
69240 69240-12150-D2 Handle Assy, Rear Door Outside, Lh
69240 69240-42020-D1 Handle Assy, Rear Door Outside, Lh
69240 69240-42020-D2 Handle Assy, Rear Door Outside, Lh
69240 69240-42020-D3 Handle Assy, Rear Door Outside, Lh
69240 69240-42020-D4 Handle Assy, Rear Door Outside, Lh
69240 69240-42020-F0 Handle Assy, Rear Door Outside, Lh
69240 69240-42020-G0 Handle Assy, Rear Door Outside, Lh
69240 69240-12150-Q4 Handle Assy, Rear Door Outside, Lh
69240 69240-42020-G1 Handle Assy, Rear Door Outside, Lh
69240 69240-42020-H0 Handle Assy, Rear Door Outside, Lh
69240 69240-42020-H1 Handle Assy, Rear Door Outside, Lh
69240 69240-42020-J0 Handle Assy, Rear Door Outside, Lh
69240 69240-42020-J1 Handle Assy, Rear Door Outside, Lh
69240 69240-12150-R2 Handle Assy, Rear Door Outside, Lh
69240 69240-42020-J2 Handle Assy, Rear Door Outside, Lh
69240 69240-42020-J3 Handle Assy, Rear Door Outside, Lh
69240 69240-42020-J4 Handle Assy, Rear Door Outside, Lh
69277 69277-22070-B1 Bezel, Front Door Inside Handle, Rh
69277 69277-22070-B0 Bezel, Front Door Inside Handle, Rh
69278 69278-22030-B1 Bezel, Front Door Inside Handle, Lh
69293 69293-12030 Snap, Front Door Outside Handle
69293 69293-12040 Snap, Front Door Outside Handle
69330 69050-42011 Lock Assy, Rear Door, Rh
69330 69330-42011 Lock Assy, Rear Door, Rh
69340 69060-42011 Lock Assy, Rear Door, Lh
69340 69340-42011 Lock Assy, Rear Door, Lh
69377 69759-20040 Snap, Auxiliary Catch Release Lever Control Link
69377 69759-20050 Snap(For Rear Door Lock)
69410 69410-87001 Plate Assy, Front Door Lock Striker
69410 69410-AA020 Plate Assy, Front Door Lock Striker
69717 69713-42010 Link, Rear Door Lock Remote Control, Rh
69718 69714-42010 Link, Rear Door Lock Remote Control, Lh
69727 69727-42020 Link, Rear Door Inside Locking, No.2 Rh
69728 69728-42020 Link, Rear Door Inside Locking, No.2 Lh
69737 69737-42010 Link, Rear Door Inside Locking , Rh
69738 69738-42010 Link, Rear Door Inside Locking , Lh
69749 69749-32030 Clamp, Front Door Lock Link
69753 69753-20060 Bellcrank, Door Lock Control
69759 69759-14050 Snap(For Rear Door Inside Handle)
69759 69759-24070 Snap(For Rear Door Inside Handle)
69759 69759-24030 Snap, Door Inside Handle Link
9010506082 90105-06082 BOLT
9014860022 90148-60022 BOLT
9014860022 90148-A0005 Hexalobular Screw
9015960303 90159-60303 SCREW
9015960539 90159-60539 New Genuine Part
9015980031 90159-80031 SCREW WWASHER
9015980047 90159-80047 New Genuine Part
9018906128 90189-06128 GROMMET SCREW
9046708117 90467-08117 Clamp, Rear Door Lock
9352054010 93520-54010 Screw
