SXA16

Toyota RAV4-VANGUARD · 1996 · 4,508 parts · 184 categories
SXA16 ×

← Back to categories

4,508 items

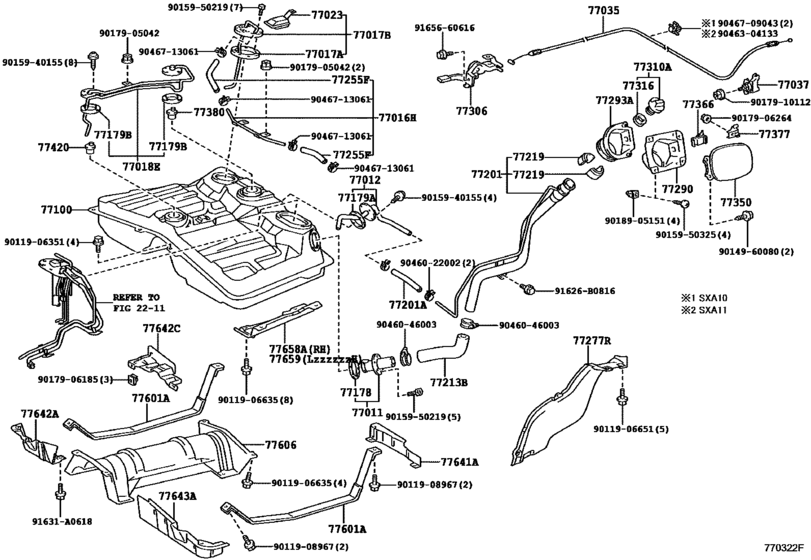

Fuel Tank & Tube ([04.1994 - ] (9404- )) 118
#OEMPart name
77011 77011-10060 Pipe Sub-Assy, Fuel Tank Filler, Lower
77012 77012-42020 Tube Sub-Assy, Fuel Tank Breather
77016 77016-42020 Tube Sub-Assy, Fuel Return Vent
77017 77169-14010 Gasket, Fuel Pump Bracket
77017 77017-42020 Tube Sub-Assy, Fuel Tank Vent
77018 77018-42040 Tube Sub-Assy, Fuel Tank Evaporation Vent
77023 77023-32030 Filter Sub-Assy, Fuel Suction Tube
77035 77035-42070 Cable Sub-Assy, Fuel Lid Lock Control
77037 77037-14020 Lock Sub-Assy, Fuel Filler Opening Lid
77100 77001-42041 Tank Assy, Fuel
77100 77001-42051 Tank Assy, Fuel
77100 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77100 95337-06020 Hose, Differential Pressure Control
77100 95333-06040 Hose
77178 77178-20030 Gasket, Fuel Tank Filler Pipe, Lower
77179 77179-20040 Gasket, Fuel Tank Breather Tube
77179 77179-26010 Gasket, Fuel Tank Evap/vent Tube
77179 77179-26011 Gasket, Fuel Suction Tube Set, No.1
77201 77201-42020 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-42061 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-42060 Pipe Sub-Assy, Fuel Tank Inlet
77201 95311-13022 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77213 77213-42010 Hose, Fuel Tank To Filler Pipe
77213 77213-42030 Hose, Fuel Tank To Filler Pipe
77213 77213-42040 Hose, Fuel Tank To Filler Pipe
77219 77219-32030 Cover, Fuel Tank Filler Pipe
77251 77251-42060 Tube, Fuel Main
77255 95333-08011 Hose, Fuel(For Fuel Return)
77261 77261-42010 Tube, Fuel Tank To Canister
77266 77266-42010 Protector, Fuel Tube, No.1
77277 77277-42011 Protector, Fuel Tank Filler Pipe
77277 77255-42020 Tube, Fuel Return, No.1
77277 90447-12085 Hose, Fuel, No.1(For Return Tube, No.1)
77278 95334-06022 Hose, Fuel
77281 77281-42010 Clamp, Fuel Hose(For Rear Fuel Main)
77285 77285-42010 Clamp, Fuel Tube, No.1
77290 77290-42010 Shield Assy, Fuel Tank Filler Pipe
77293 77293-32020 Shield, Fuel Tank Filler Pipe, No.3
77295 77295-42010 Clamp, Fuel Tube W/grommet, No.1
77306 77306-32010 Lever Sub-Assy, Fuel Lid Lock Open
77310 77310-35070 Cap Assy, Fuel Tank
77310 77310-48010 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77350 77350-42020 Lid Assy, Fuel Filler Opening
77366 77360-22020 Spring, Fuel Filler Opening Lid Hinge
77377 77377-20050 Retainer, Fuel Filler Opening Lid Lock
77380 77380-26010 Valve Assy, Fuel Cut Off
77415 77415-30020 Support, Fuel Tube Grommet, No.5
77420 77420-26010 Valve Assy, Fuel Cut Off, No.2
77601 77601-42040 Band Sub-Assy, Fuel Tank, No.1
77606 77606-42010 Protector Sub-Assy, Fuel Tank, No.1
77641 77641-42010 Protector, Fuel Tank, No.1
77642 77642-42010 Protector, Fuel Tank, No.2
77642 77642-42020 Protector, Fuel Tank, No.2
77643 77643-42010 Protector, Fuel Tank, No.3
77658 77658-42010 Protector, Fuel Tank Edge, No.1
77659 77659-42010 Protector, Fuel Tank Edge, No.2
77740 77740-42060 Canister Assy, Charcoal
77751 77751-20351 Bracket, Charcoal Canister Base
77754 77754-42020 Hose, Charcoal Canister Outlet, No.1
77754 77754-42030 Hose, Charcoal Canister Outlet, No.1
77779 77779-42010 Tube, Charcoal Canister Outlet
91515 91515-G0625 New Genuine Part
91515 91511-G0622 BOLT, FLANGE
91626 91626-B0816 New Genuine Part
91626 91651-B0814 Bolt with washer
91631 91631-A0618 New Genuine Part
91632 91632-G0625 New Genuine Part
91632 91631-G0625 New Genuine Part
1730874410 17308-74410 Hose Sub-assy, Vacuum(for Idle-up)
2586174090 25861-74090 Bracket, Vacuum Switching Valve
2586174110 25861-74110 Bracket, Vacuum Switching Valve
9011906351 90119-06351 New Genuine Part
9011906635 90119-06635 New Genuine Part
9011906651 90119-06651 BOLT WWASHER
9011908848 90119-08848 New Genuine Part
9011908967 90119-08967 New Genuine Part
9011908967 90129-08001 BOLT WWASHER
9014960080 90149-60080 New Genuine Part
9015940155 90159-40155 SCREW WWASHER
9015950048 90159-50048 Bolt
9015950219 90159-50219 BOLT
9015950219 90159-A0057 New Genuine Part
9015950325 90159-50325 New Genuine Part
9017905042 90179-05042 NUT
9017906185 90179-06185 CLIP BUMPER
9017906264 90179-06264 NUT, WWASHER
9017910112 90179-10112 New Genuine Part
9017910112 90179-10186 New Genuine Part
9018905151 90189-05151 New Genuine Part
9033330002 90333-30002 Cover, Front Floor Hole
9040214004 90402-14004 Nut, Union(For Oil Cooler Tube)
9046022002 90460-22002 CLAMP
9046022002 90460-22001 CLAMP
9046046003 90460-46003 Clamp (For Fuel Filler Pipe)
9046046003 90460-46005 Clamp (For Fuel Filler Pipe)
9046304133 90463-04133 New Genuine Part
9046400523 90464-00523 New Genuine Part
9046400549 90464-00549 New Genuine Part
9046709043 90467-09043 Clamp, Hood Lock Control Cable
9046711009 90467-11009 Clamp Or Clip, Hose(For Water By-Pass Hose)
9046711009 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
9046713061 90467-13061 Crip (For Fuel Tank Filler Pipe)
9046713063 90467-13063 New Genuine Part
9048015023 90480-15023 Grommet
9091012122 90910-12122 Valve Assy, Air Control
9091012144 90910-12144 Valve Assy, Vacuum Switching
9091710079 90917-10079 Valve, Check, No.1
9094901956 90949-01956 New Genuine Part
9095901239 90959-01239 New Genuine Part
9095901448 90959-01448 CLAMP
9099992002 90999-92002 Air Hose (300 mm)
9162660616 91626-60616 New Genuine Part
9162660616 91621-J0612 BOLT W-WASHER
9165660616 91656-60616 BOLT
9165660616 91651-60616 BOLT
9613241100 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100 96132-51100 Clip (For Hose)
