Search › Model › SXA15

SXA15

Toyota RAV4-VANGUARD · 1996 · 4,104 parts · 183 categories

4,104 items

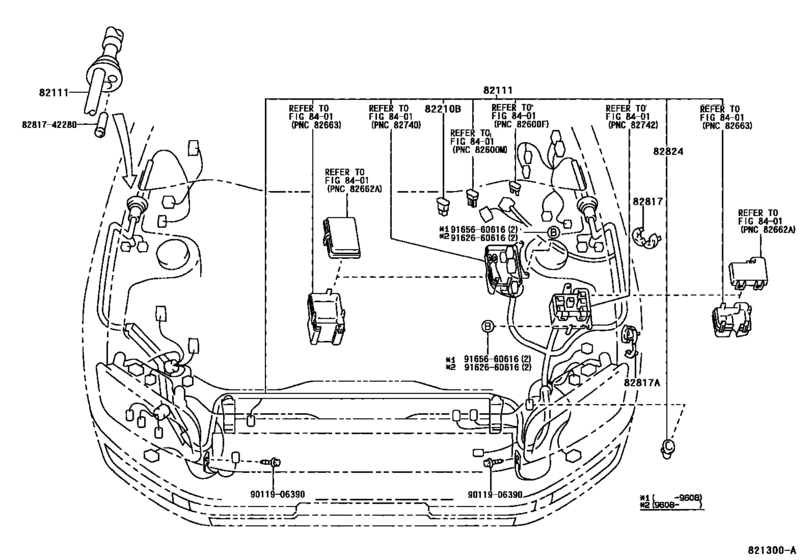

Wiring & Clamp ([11.1995 - ] ENGINE ROOM WIRE (9511- )) 23

#	OEM	Part name
82111	82111-42800	Wire, Engine Room Main
82111	82111-42810	Wire, Engine Room Main
82111	82111-42820	Wire, Engine Room Main
82111	82111-42830	Wire, Engine Room Main
82111	82111-42860	Wire, Engine Room Main
82111	82111-42861	Wire, Engine Room Main
82111	82111-42870	Wire, Engine Room Main
82111	82111-42871	Wire, Engine Room Main
82111	82111-42880	Wire, Engine Room Main
82111	82111-42881	Wire, Engine Room Main
82111	82111-42890	Wire, Engine Room Main
82111	82111-42891	Wire, Engine Room Main
82210	90982-08202	Fusible Link
82210	90982-08246	Fusible Link
82817	82817-32010	Protector, Wiring Harness, No.1
82817	82817-42100	Protector, Wiring Harness, No.2
82824	82824-20050	Connector, Wiring Harness
8281742280	82817-42280	Protector, Wiring Harness, No.1
9011906390	90119-06390	BOLT WWASHER
9162660616	91626-60616	New Genuine Part
9162660616	91621-J0612	BOLT W-WASHER
9165660616	91656-60616	BOLT
9165660616	91651-60616	BOLT

OEM	Part name	Category
82111-42800	Wire, Engine Room Main	Wiring & Clamp ([11.1995 - ] ENGINE ROOM WIRE (9511- ))
82111-42810	Wire, Engine Room Main	Wiring & Clamp ([11.1995 - ] ENGINE ROOM WIRE (9511- ))
82111-42820	Wire, Engine Room Main	Wiring & Clamp ([11.1995 - ] ENGINE ROOM WIRE (9511- ))
82111-42830	Wire, Engine Room Main	Wiring & Clamp ([11.1995 - ] ENGINE ROOM WIRE (9511- ))
82111-42860	Wire, Engine Room Main	Wiring & Clamp ([11.1995 - ] ENGINE ROOM WIRE (9511- ))
82111-42861	Wire, Engine Room Main	Wiring & Clamp ([11.1995 - ] ENGINE ROOM WIRE (9511- ))
82111-42870	Wire, Engine Room Main	Wiring & Clamp ([11.1995 - ] ENGINE ROOM WIRE (9511- ))
82111-42871	Wire, Engine Room Main	Wiring & Clamp ([11.1995 - ] ENGINE ROOM WIRE (9511- ))
82111-42880	Wire, Engine Room Main	Wiring & Clamp ([11.1995 - ] ENGINE ROOM WIRE (9511- ))
82111-42881	Wire, Engine Room Main	Wiring & Clamp ([11.1995 - ] ENGINE ROOM WIRE (9511- ))
82111-42890	Wire, Engine Room Main	Wiring & Clamp ([11.1995 - ] ENGINE ROOM WIRE (9511- ))
82111-42891	Wire, Engine Room Main	Wiring & Clamp ([11.1995 - ] ENGINE ROOM WIRE (9511- ))
82817-32010	Protector, Wiring Harness, No.1	Wiring & Clamp ([11.1995 - ] ENGINE ROOM WIRE (9511- ))
82817-42100	Protector, Wiring Harness, No.2	Wiring & Clamp ([11.1995 - ] ENGINE ROOM WIRE (9511- ))
82817-42280	Protector, Wiring Harness, No.1	Wiring & Clamp ([11.1995 - ] ENGINE ROOM WIRE (9511- ))
82824-20050	Connector, Wiring Harness	Wiring & Clamp ([11.1995 - ] ENGINE ROOM WIRE (9511- ))
90119-06390	BOLT WWASHER	Wiring & Clamp ([11.1995 - ] ENGINE ROOM WIRE (9511- ))
90982-08202	Fusible Link	Wiring & Clamp ([11.1995 - ] ENGINE ROOM WIRE (9511- ))
90982-08246	Fusible Link	Wiring & Clamp ([11.1995 - ] ENGINE ROOM WIRE (9511- ))
91621-J0612	BOLT W-WASHER	Wiring & Clamp ([11.1995 - ] ENGINE ROOM WIRE (9511- ))
91626-60616	New Genuine Part	Wiring & Clamp ([11.1995 - ] ENGINE ROOM WIRE (9511- ))
91651-60616	BOLT	Wiring & Clamp ([11.1995 - ] ENGINE ROOM WIRE (9511- ))
91656-60616	BOLT	Wiring & Clamp ([11.1995 - ] ENGINE ROOM WIRE (9511- ))
