Search › Model › SXA15
SXA15

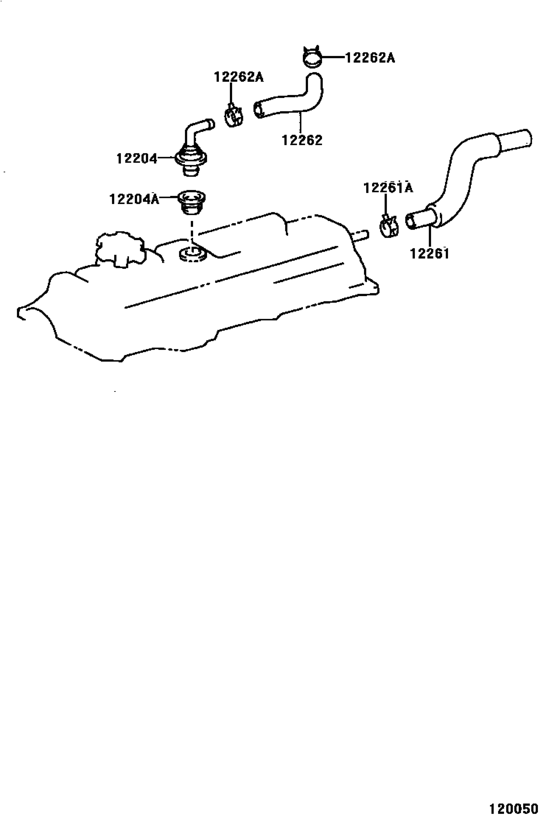

Ventilation Hose ([09.1997 - ] (9709- )) 6
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-74030 | Valve Sub-Assy, Ventilation |
| 12204 | 90480-18001 | Grommet(For Ventilation System) |
| 12261 | 12260-74050 | Hose, Ventilation |
| 12261 | 12261-74141 | Hose, Ventilation |
| 12261 | 90467-14043 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12262-74100 | Hose, Ventilation, No.2 |
| OEM | Part name | Category |
|---|---|---|
| 12204-74030 | Valve Sub-Assy, Ventilation | Ventilation Hose ([09.1997 - ] (9709- )) |
| 12260-74050 | Hose, Ventilation | Ventilation Hose ([09.1997 - ] (9709- )) |
| 12261-74141 | Hose, Ventilation | Ventilation Hose ([09.1997 - ] (9709- )) |
| 12262-74100 | Hose, Ventilation, No.2 | Ventilation Hose ([09.1997 - ] (9709- )) |
| 90467-14043 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([09.1997 - ] (9709- )) |
| 90480-18001 | Grommet(For Ventilation System) | Ventilation Hose ([09.1997 - ] (9709- )) |
