Search › Model › SXA15

SXA15

Toyota RAV4-VANGUARD · 1996 · 4,104 parts · 183 categories

4,104 items

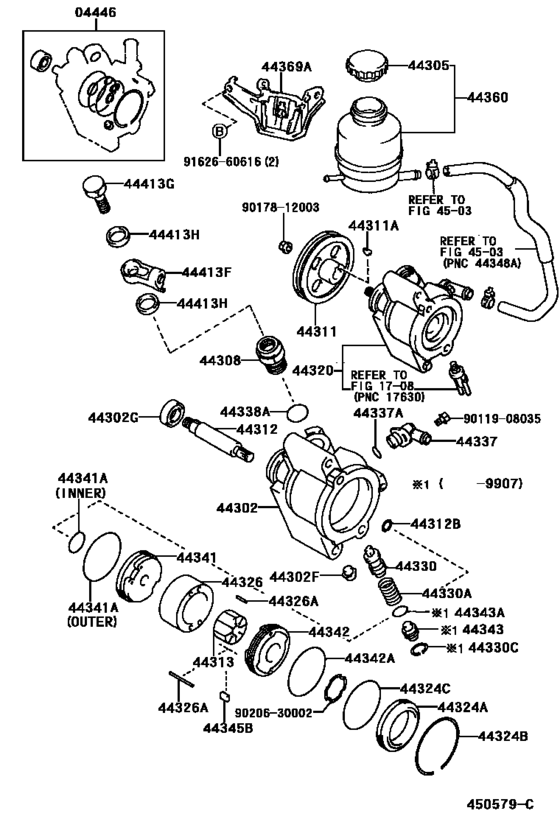

Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- )) 71

#	OEM	Part name
4446	04446-20031	Gasket Kit, Power Steering Pump
44302	44302-20030	Housing Sub-Assy, Vane Pump, Front
44302	90410-05035	Seat, Union(For Valve Body Housing)
44302	90311-18007	Seal, Oil, No.2(For Vane Pump Housing)
44305	44305-28020	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-28051	Cap Sub-Assy, Vane Pump Oil Reservoir
44308	44308-35040	Union Sub-Assy, Pressure Port
44311	44311-20060	Pulley, Vane Pump
44311	44311-42010	Pulley, Vane Pump
44311	90280-05008	Key, Woodruff(For Distributor Drive Gear)
44312	44312-12030	Shaft, Vane Pump
44312	90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)
44313	44313-22040	Rotor, Vane Pump
44313	44313-22050	Rotor, Vane Pump
44313	44313-22060	Rotor, Vane Pump
44313	44313-22070	Rotor, Vane Pump
44313	44313-22080	Rotor, Vane Pump
44320	44320-42012	Pump Assy, Vane
44320	44320-42060	Pump Assy, Vane
44324	44324-12031	Housing Sub-Assy, Vane Pump, Rear
44324	90521-62002	Ring, Snap, No.1(For Vane Pump Housing)
44324	90301-53006	Ring, O(For Pump Housing Rear)
44324	90301-53007	Ring, O(For Pump Housing Rear)
44326	44325-30100	Ring, Cam(For Vane Pump)
44326	44325-30110	Ring, Cam(For Vane Pump)
44326	44325-30120	Ring, Cam(For Vane Pump)
44326	44325-30130	Ring, Cam(For Vane Pump)
44326	44325-30140	Ring, Cam(For Vane Pump)
44326	90250-04047	Pin, Straight(For Vane Pump Cam Ring)
44326	90250-04049	Pin, Straight(For Vane Pump Cam Ring)
44330	44330-35131	Valve Assy, Flow Control
44330	44330-32670	Valve Assy, Flow Control
44330	44330-35141	Valve Assy, Flow Control
44330	44330-32680	Valve Assy, Flow Control
44330	44330-35151	Valve Assy, Flow Control
44330	44330-32690	Valve Assy, Flow Control
44330	44330-35161	Valve Assy, Flow Control
44330	44330-32700	Valve Assy, Flow Control
44330	44330-35171	Valve Assy, Flow Control
44330	44330-32710	Valve Assy, Flow Control
44330	44330-35181	Valve Assy, Flow Control
44330	44330-32720	Valve Assy, Flow Control
44330	90501-12103	Spring, Compression(For Flow Control Valve)
44330	96151-01700	Ring, Snap(For Flow Control Valve)
44337	44337-22060	Union, Power Steering Suction Port
44337	90301-11016	Ring, O(For Power Steering Suction Port)
44338	90301-19013	Seal, Oil, No.1(For Vane Pump Housing)
44338	90301-19018	Ring, O(For Pressure Port Union)
44341	44341-32010	Plate, Vane Pump Side, Front
44341	90301-25001	Ring, O(For Vane Pump Front Side Plate)
44341	90301-25008	Ring, O(For Vane Pump Front Side Plate)
44341	90301-52001	Ring, O(For Pump Housing Rear)
44342	44342-32010	Plate, Vane Pump Side, Rear
44343	44343-12040	Seat, Flow Control Spring
44343	90301-13012	Ring, O(For Flow Control Spring Seat)
44345	44345-12010	Plate, Vane Pump
44345	44345-12020	Plate, Vane Pump
44345	44345-12030	Plate, Vane Pump
44345	44345-12040	Plate, Vane Pump
44345	44345-12050	Plate, Vane Pump
44360	44360-42011	Reservoir Assy, Vane Pump Oil
44369	44390-42011	Bracket, Oil Reservoir, No.1
44413	44413-10040	Tube, Pressure Feed, No.2
44413	44413-16060	Tube, Pressure Feed, No.2
44413	96341-41603	Bolt, Union(For Rear Stabilizer Contorol Tube)
44413	90430-16242	Gasket, W/head Straight Screw Plug
9011908035	90119-08035	New Genuine Part
9017812003	90178-12003	Nut(For Vane Pump Pulley)
9020630002	90206-30002	New Genuine Part
9162660616	91626-60616	New Genuine Part
9162660616	91621-J0612	BOLT W-WASHER

OEM	Part name	Category
04446-20031	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44302-20030	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44305-28020	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44305-28051	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44308-35040	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44311-20060	Pulley, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44311-42010	Pulley, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44312-12030	Shaft, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44313-22040	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44313-22050	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44313-22060	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44313-22070	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44313-22080	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44320-42012	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44320-42060	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44324-12031	Housing Sub-Assy, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44325-30100	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44325-30110	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44325-30120	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44325-30130	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44325-30140	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44330-32670	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44330-32680	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44330-32690	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44330-32700	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44330-32710	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44330-32720	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44330-35131	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44330-35141	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44330-35151	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44330-35161	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44330-35171	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44330-35181	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44337-22060	Union, Power Steering Suction Port	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44341-32010	Plate, Vane Pump Side, Front	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44342-32010	Plate, Vane Pump Side, Rear	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44343-12040	Seat, Flow Control Spring	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44345-12010	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44345-12020	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44345-12030	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44345-12040	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44345-12050	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44360-42011	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44390-42011	Bracket, Oil Reservoir, No.1	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44413-10040	Tube, Pressure Feed, No.2	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
44413-16060	Tube, Pressure Feed, No.2	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
90119-08035	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
90178-12003	Nut(For Vane Pump Pulley)	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
90206-30002	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
90250-04047	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
90250-04049	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
90280-05008	Key, Woodruff(For Distributor Drive Gear)	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
90301-11016	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
90301-13012	Ring, O(For Flow Control Spring Seat)	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
90301-19013	Seal, Oil, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
90301-19018	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
90301-25001	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
90301-25008	Ring, O(For Vane Pump Front Side Plate)	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
90301-52001	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
90301-53006	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
90301-53007	Ring, O(For Pump Housing Rear)	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
90311-18007	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
90410-05035	Seat, Union(For Valve Body Housing)	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
90430-16242	Gasket, W/head Straight Screw Plug	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
90501-12103	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
90520-10003	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
90521-62002	Ring, Snap, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
91621-J0612	BOLT W-WASHER	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
91626-60616	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
96151-01700	Ring, Snap(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))
96341-41603	Bolt, Union(For Rear Stabilizer Contorol Tube)	Vane Pump & Reservoir (Power Steering) ([11.1995 - ] (9511- ))

Source: Public OEM parts-catalog data
Variants: 2 / 10
Category: 183
Collected: 2026-08-02
