Search › Model › SXA15

SXA15

Toyota RAV4-VANGUARD · 1996 · 4,104 parts · 183 categories
SXA15 ×

← Back to categories

4,104 items

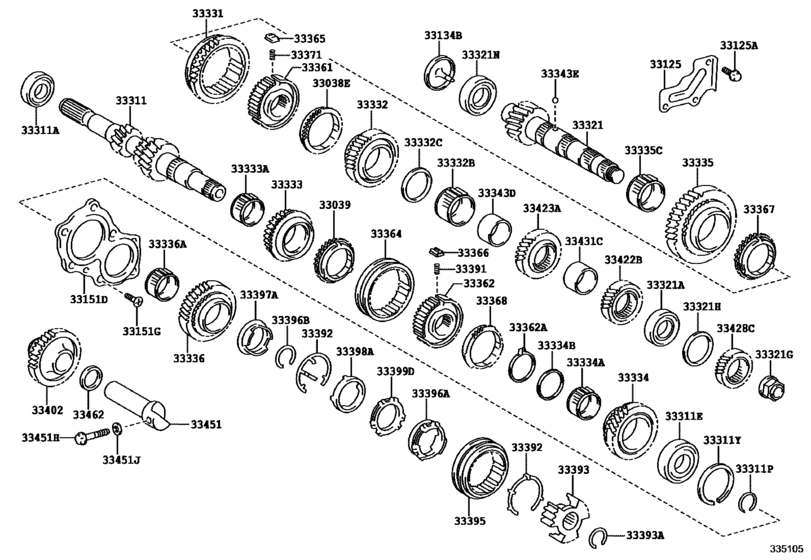

Transmission Gear (Mtm) ([11.1995 - 12.1999] E250,E250F (9511-9912)MTM) 152
#OEMPart name
33038 33038-12012 Ring Set, Synchronizer, No.2
33038 33038-28010 Ring Set, Synchronizer, No.2
33039 33039-12011 Ring Set, Synchronizer, No.3
33039 33039-12012 Ring Set, Synchronizer, No.3
33125 33125-20010 Receiver, Manual Transaxle Case
33125 91611-60616 Bolt(For Transaxle Case Receiver)
33125 91611-B0616 Bolt(For Transaxle Case Receiver)
33134 33134-20010 Cover, Output Shaft(Mtm)
33151 33151-12031 Retainer, Bearing, Rear(Mtm)
33151 33151-28020 Retainer, Bearing, Rear(Mtm)
33151 90149-80029 Screw(For Rear Bearing Retainer)
33311 33311-42010 Shaft, Input
33311 33311-42H10 Shaft, Input
33311 33311-42011 Shaft, Input
33311 33311-42012 Shaft, Input
33311 90365-30023 Bearing (For Input Shaft Front)
33311 90363-33007 Bearing, Radial Ball (For Input Shaft Rear)
33311 90520-30008 Ring, Shaft Snap (For Input Shaft Rear Bearing)
33311 90520-30009 Ring, Shaft Snap (For Input Shaft Rear Bearing)
33311 90520-30010 Ring, Shaft Snap (For Input Shaft Rear Bearing)
33311 90520-30011 Ring, Shaft Snap (For Input Shaft Rear Bearing)
33311 90520-30012 Ring, Shaft Snap (For Input Shaft Rear Bearing)
33311 90520-30013 Ring, Shaft Snap (For Input Shaft Rear Bearing)
33311 90520-30021 Ring, Shaft Snap (For Input Shaft Rear Bearing)
33311 90520-30022 Ring, Shaft Snap (For Input Shaft Rear Bearing)
33311 90520-76003 Ring, Shaft Snap (For Input Shaft Rear Bearing)
33321 33302-13010 Shaft, Output
33321 33302-42050 Shaft, Output
33321 90366-32025 Bearing (For Output Shaft Front)
33321 33302-42030 Shaft, Output
33321 90366-28002 Bearing (For Output Shaft Rear)
33321 90179-20012 Nut (For Manual Transmission Output Shaft Rear Set)
33321 90564-59001 Shim (For Output Shaft Rear Bearing)
33321 90564-59002 Shim (For Output Shaft Rear Bearing)
33321 90564-59003 Shim (For Output Shaft Rear Bearing)
33321 90564-59004 Shim (For Output Shaft Rear Bearing)
33321 90564-59005 Shim (For Output Shaft Rear Bearing)
33321 90564-59006 Shim (For Output Shaft Rear Bearing)
33321 90564-59007 Shim (For Output Shaft Rear Bearing)
33321 90564-59008 Shim (For Output Shaft Rear Bearing)
33321 90564-59009 Shim (For Output Shaft Rear Bearing)
33321 90564-59010 Shim (For Output Shaft Rear Bearing)
33321 90564-59011 Shim (For Output Shaft Rear Bearing)
33321 90564-59012 Shim (For Output Shaft Rear Bearing)
33321 90564-59013 Shim (For Output Shaft Rear Bearing)
33321 90564-59014 Shim (For Output Shaft Rear Bearing)
33321 90564-59015 Shim (For Output Shaft Rear Bearing)
33321 90564-59016 Shim (For Output Shaft Rear Bearing)
33321 90564-59017 Shim (For Output Shaft Rear Bearing)
33321 90564-59018 Shim (For Output Shaft Rear Bearing)
33321 90564-59019 Shim (For Output Shaft Rear Bearing)
33321 90564-59020 Shim (For Output Shaft Rear Bearing)
33321 90564-59021 Shim (For Output Shaft Rear Bearing)
33321 90564-59022 Shim (For Output Shaft Rear Bearing)
33321 90564-59023 Shim (For Output Shaft Rear Bearing)
33321 90564-59024 Shim (For Output Shaft Rear Bearing)
33321 90564-59025 Shim (For Output Shaft Rear Bearing)
33321 90366-32016 Bearing (For Output Shaft Front)
33331 33331-12041 Gear, Reverse
33331 33331-12042 Gear, Reverse
33331 33331-28020 Gear, Reverse
33331 33331-28021 Gear, Reverse
33332 33332-42010 Gear, 2Nd
33332 33332-42011 Gear, 2Nd
33332 33332-20190 Gear, 2nd
33332 33343-12020 Bush, 2Nd Gear
33332 90364-44001 Bearing, Needle Roller (For 2Nd Gear)
33332 90560-44001 Spacer (For 2Nd Gear Bearing)
33333 33034-42010 Gear, 3Rd
33333 33034-42011 Gear, 3Rd
33333 33034-20110 Gear, 3Rd
33333 90364-36011 Bearing, Needle Roller (For 3Rd Gear)
33333 90364-36024 Bearing, Needle Roller (For 3Rd Gear)
33334 33035-13011 Gear, 4Th
33334 33035-13012 Gear, 4Th
33334 33035-20220 Gear, 4Th
33334 90364-36014 Bearing, Needle Roller (For 4Th Gear)
33334 90364-36027 Bearing, Needle Roller (For 4Th Gear)
33334 90560-36002 Spacer (For 4Th Gear Bearing)
33335 33335-13010 Gear, 1St
33335 33335-13011 Gear, 1St
33335 33335-28050 Gear, 1St
33335 33335-42050 Gear, 1St
33335 90364-45007 Bearing, Needle Roller(For 1St Gear)
33336 33336-12060 Gear, 5Th
33336 33336-42040 Gear, 5Th
33336 90364-28023 Bearing, Needle Roller (For 5Th Gear)
33336 33336-12061 Gear, 5Th
33336 90364-28013 Bearing, Needle Roller (For 5Th Gear)
33343 90360-05012 Ball, Reverse Shift Restrict
33361 33361-12052 Hub, Transmission Clutch, No.1
33361 33361-28010 Hub, Transmission Clutch, No.1
33361 33361-42010 Hub, Transmission Clutch, No.1
33362 33362-12031 Hub, Transmission Clutch, No.2
33362 33362-28020 Hub, Transmission Clutch, No.2
33362 33362-28H00 Hub, Transmission Clutch, No.2
33362 90520-34003 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33362 90520-34004 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33362 90520-34005 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33362 90520-34006 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33362 90520-34007 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33362 90520-34008 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33362 90520-34009 Ring, Shaft Snap (For Clutch Hub No.2 Setting)
33364 33364-12021 Sleeve, Transmission Hub, No.2
33364 33364-28010 Sleeve, Transmission Hub, No.2
33365 33365-12040 Key, Synchromesh Shifting, No.1
33366 33366-12030 Key, Synchromesh Shifting, No.2
33366 33366-12031 Key, Synchromesh Shifting, No.2
33367 33367-12040 Ring, Synchronizer, No.1
33368 33368-12041 Ring, Synchronizer, No.2
33368 33368-12042 Ring, Synchronizer, No.2
33371 90501-08112 Spring, Synchromesh Shifting Key, No.1
33391 90501-08131 Spring, Synchromesh Shifting Key, No.2
33392 33392-12010 Spring, Synchromesh Shifting Key, No.3
33392 33392-12020 Spring, Synchromesh Shifting Key, No.3
33393 33393-12021 Hub, Transmission Clutch, No.3
33393 33393-42010 Hub, Transmission Clutch, No.3
33393 33393-12022 Hub, Transmission Clutch, No.3
33393 90520-27061 Ring, Shaft Snap (For Transmission Clutch Hub No.3)
33393 90520-27062 Ring, Shaft Snap (For Transmission Clutch Hub No.3)
33393 90520-27063 Ring, Shaft Snap (For Transmission Clutch Hub No.3)
33393 90520-27064 Ring, Shaft Snap (For Transmission Clutch Hub No.3)
33393 90520-27065 Ring, Shaft Snap (For Transmission Clutch Hub No.3)
33393 90520-27066 Ring, Shaft Snap (For Transmission Clutch Hub No.3)
33393 90520-27067 Ring, Shaft Snap (For Transmission Clutch Hub No.3)
33393 90520-27068 Ring, Shaft Snap (For Transmission Clutch Hub No.3)
33393 90520-27069 Ring, Shaft Snap (For Transmission Clutch Hub No.3)
33395 33395-12020 Sleeve, Transmission Hub, No.3
33395 33395-42012 Sleeve, Transmission Hub, No.3
33395 33395-12021 Sleeve, Transmission Hub, No.3
33396 33396-12011 Ring, Synchronizer Pull
33396 33396-28010 Ring, Synchronizer Pull
33396 90520-46035 Ring, Snap (For Synchronizer Pull Ring)
33397 33397-12011 Ring, Synchronizer, Inner No.5
33397 33397-28010 Ring, Synchronizer, Inner No.5
33398 33398-12010 Ring, Synchronizer, Middle No.5
33399 33399-12011 Ring, Synchronizer, Outer No.5
33402 33402-12031 Gear Sub-Assy, Reverse Idler
33402 33402-28020 Gear Sub-Assy, Reverse Idler
33422 33422-12040 Gear, 4Th Driven
33422 33422-20050 Gear, 4Th Driven
33423 33423-42010 Gear, 3Rd Driven
33423 33423-20050 Gear, 3Rd Driven
33428 33428-12030 Gear, 5Th Driven
33428 33428-42040 Gear, 5Th Driven
33428 33428-12031 Gear, 5Th Driven
33431 33431-20080 Spacer, Output Gear
33451 33451-12032 Shaft, Reverse Idler Gear
33451 33451-20070 Shaft, Reverse Idler Gear
33451 90105-08150 Bolt (For Reverse Idler Gear Shaft)
33451 90430-08010 Gasket (For Reverse Idler Gear Shaft)
33462 33462-20050 Washer, Reverse Idler Thrust
