Search › Model › SXA15
SXA15

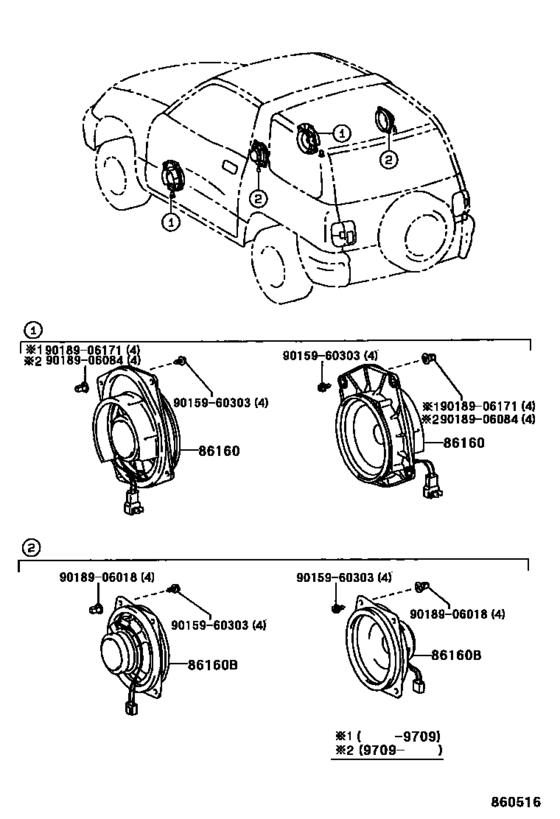

Speaker ([11.1995 - ] (9511- )) 7
| # | OEM | Part name |
|---|---|---|
| 86160 | 86160-42010 | Speaker Assy, Front No.1 |
| 86160 | 86160-42020 | Speaker Assy, Front No.1 |
| 86160 | 86160-42060 | Speaker Assy, Rear |
| 9015960303 | 90159-60303 | SCREW |
| 9018906018 | 90189-06018 | GROMMET |
| 9018906084 | 90189-06084 | NUT |
| 9018906171 | 90189-06171 | GROMMET SCREW |
| OEM | Part name | Category |
|---|---|---|
| 86160-42010 | Speaker Assy, Front No.1 | Speaker ([11.1995 - ] (9511- )) |
| 86160-42020 | Speaker Assy, Front No.1 | Speaker ([11.1995 - ] (9511- )) |
| 86160-42060 | Speaker Assy, Rear | Speaker ([11.1995 - ] (9511- )) |
| 90159-60303 | SCREW | Speaker ([11.1995 - ] (9511- )) |
| 90189-06018 | GROMMET | Speaker ([11.1995 - ] (9511- )) |
| 90189-06084 | NUT | Speaker ([11.1995 - ] (9511- )) |
| 90189-06171 | GROMMET SCREW | Speaker ([11.1995 - ] (9511- )) |
