Search › Model › SXA15

SXA15

Toyota RAV4-VANGUARD · 1996 · 4,104 parts · 183 categories

4,104 items

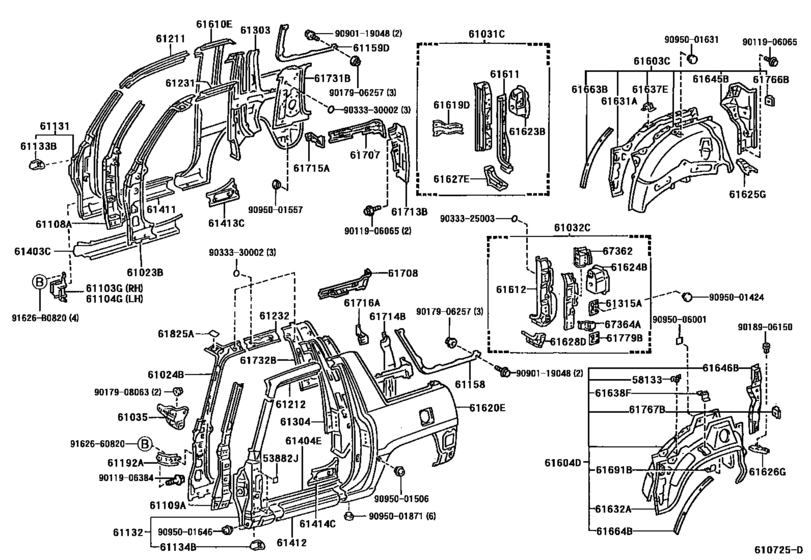

Side Member ([12.1997 - ] (9712- )SOT) 91

#	OEM	Part name
53882	53882-22080	Seal, Front Fender
58133	58133-22030	Bracket, Front Floor Heat Insulator, No.3
61023	61023-42050	Pillar Sub-Assy, Front Body, Inner Rh
61024	61024-42060	Pillar Sub-Assy, Front Body, Inner Lh
61031	61031-42030	Extension Sub-Assy, Quarter Panel, Rear Rh
61032	61032-42030	Extension Sub-Assy, Quarter Panel, Rear Lh
61035	61165-42010	Bracket Sub-Assy, Instrument Panel To Cowl Side, Rh
61103	61103-42010	Gusset Sub-Assy, Front Body Pillar, Lower Rh
61104	61104-42010	Gusset Sub-Assy, Front Body Pillar, Lower Lh
61108	61108-42900	Reinforce Sub-Assy, Front Body Pillar, Lower Rh
61108	61108-42901	Reinforce Sub-Assy, Front Body Pillar, Lower Rh
61109	61109-42900	Reinforce Sub-Assy, Front Body Pillar, Lower Lh
61109	61109-42901	Reinforce Sub-Assy, Front Body Pillar, Lower Lh
61131	61110-42070	Pillar, Front Body, Upper Outer Rh
61132	61120-42070	Pillar, Front Body, Upper Outer Lh
61133	61133-12190	Bracket, Front Body Pillar ,outer Rh
61158	61158-42020	Retainer, Side Panel, No.1
61159	61159-42020	Retainer, Side Panel, No.2 Rh
61192	61192-42010	Bracket, Computer To Cowl Side, No.2
61211	61211-42011	Rail, Roof Side, Outer Rh
61212	61212-42030	Rail, Roof Side, Outer Lh
61231	61231-42040	Rail, Roof Side, Inner Rh
61231	61231-42050	Rail, Roof Side, Inner Rh
61232	61232-42040	Rail, Roof Side, Inner Lh
61232	61232-42050	Rail, Roof Side, Inner Lh
61303	61303-42060	Reinforce Sub-Assy, Center Body Pillar, Upper Rh
61304	61304-42060	Reinforce Sub-Assy, Center Body Pillar, Upper Lh
61315	61315-16020	Retainer, Door Lock Striker
61403	61403-42010	Reinforce Sub-Assy, Rocker, Outer Rh
61404	61404-42010	Reinforce Sub-Assy, Rocker, Outer Lh
61411	61411-42050	Panel, Rocker, Outer Rh
61412	61412-42050	Panel, Rocker, Outer Lh
61413	61413-42030	Reinforcement, Rocker Panel, No.2 Rh
61414	61414-42030	Reinforcement, Rocker Panel, No.2 Lh
61603	61603-42060	Panel Sub-Assy, Quarter Wheel House, Rh
61604	61604-42070	Panel Sub-Assy, Quarter Wheel House, Lh
61610	61610-42060	Fender Assy, Rear Rh
61611	61601-42010	Panel, Quarter, Rh
61612	61602-42010	Panel, Quarter, Lh
61619	61619-42010	Reinforcement, Quarter Panel, Rh
61620	61620-42070	Fender Assy, Rear Lh
61623	61623-42010	Trough, Back Door Opening, Rear Rh
61624	61624-42010	Trough, Back Door Opening, Rear Lh
61625	61625-42010	Extension, Quarter Panel, Rear Rh
61626	61626-42010	Extension, Quarter Panel, Rear Lh
61627	61627-42010	Extension, Quarter Panel, Rear Lower Rh
61628	61628-42010	Extension, Quarter Panel, Rear Lower Lh
61631	61631-42030	Panel, Quarter Wheel House, Outer Rh
61632	61632-42040	Panel, Quarter Wheel House, Outer Lh
61637	61637-42010	Bracket, Quarter Wheel House
61645	61645-42011	Gusset, Quarter Wheel House, Rear Rh
61645	61645-42900	Gusset, Quarter Wheel House, Rear Rh
61646	61646-42010	Gusset, Quarter Wheel House, Rear Lh
61646	61646-42900	Gusset, Quarter Wheel House, Rear Lh
61663	61663-42010	Reinforcement, Quarter Wheel House, Inner Center Rh
61664	61664-42010	Reinforcement, Quarter Wheel House, Inner Center Lh
61691	61691-42010	Bracket, Fuel Tank Protector
61707	61707-42010	Panel Sub-Assy, Quarter, Inner Rh
61708	61708-42010	Panel Sub-Assy, Quarter, Inner Lh
61713	61713-42020	Reinforce, Roof Side, Outer Rh
61713	61713-42011	Reinforce, Roof Side, Outer Rh
61714	61714-42020	Reinforce, Roof Side, Outer Lh
61714	61714-42011	Reinforce, Roof Side, Outer Lh
61715	61715-42030	Extension, Roof Side, Inner Upper Rh
61716	61716-42030	Extension, Roof Side, Inner Upper Lh
61731	61731-42050	Panel, Roof Side, Inner Rh
61732	61732-42050	Panel, Roof Side, Inner Lh
61766	61766-42010	Reinforcement, Belt Anchor To Roof Side, Inner Rh
61779	61779-42010	Plate, Back Door Opening, Lower Lh
61825	61825-12010	Cover, Roof Side, Inner Upper Rh
67362	67362-42010	Reinforcement, Back Door Upper Hinge, Lh
67364	67364-42010	Reinforcement, Back Door Lower Hinge, Lh
91626	91626-B0820	New Genuine Part
91626	91621-B0816	BOLT WWASHER
9011906065	90119-06065	New Genuine Part
9011906384	90119-06384	New Genuine Part
9017906257	90179-06257	NUT
9017908063	90179-08063	NUT
9018906150	90189-06150	BUSH
9033325003	90333-25003	Plug, Hole(For Hood)
9033330002	90333-30002	Cover, Front Floor Hole
9090119048	90901-19048	New Genuine Part
9095001424	90950-01424	PLUG
9095001424	90950-01759	PLUG
9095001506	90950-01506	Plug, Hole(For Luggage Compartment Door Panel)
9095001557	90950-01557	PLUG
9095001631	90950-01631	Plug Hole
9095001646	90950-01646	New Genuine Part
9095001871	90950-01871	PLUG
9095006001	90950-06001	Protector, Front Side Panel, No.3
9162660820	91626-60820	BOLT WWASHER

OEM	Part name	Category
53882-22080	Seal, Front Fender	Side Member ([12.1997 - ] (9712- )SOT)
58133-22030	Bracket, Front Floor Heat Insulator, No.3	Side Member ([12.1997 - ] (9712- )SOT)
61023-42050	Pillar Sub-Assy, Front Body, Inner Rh	Side Member ([12.1997 - ] (9712- )SOT)
61024-42060	Pillar Sub-Assy, Front Body, Inner Lh	Side Member ([12.1997 - ] (9712- )SOT)
61031-42030	Extension Sub-Assy, Quarter Panel, Rear Rh	Side Member ([12.1997 - ] (9712- )SOT)
61032-42030	Extension Sub-Assy, Quarter Panel, Rear Lh	Side Member ([12.1997 - ] (9712- )SOT)
61103-42010	Gusset Sub-Assy, Front Body Pillar, Lower Rh	Side Member ([12.1997 - ] (9712- )SOT)
61104-42010	Gusset Sub-Assy, Front Body Pillar, Lower Lh	Side Member ([12.1997 - ] (9712- )SOT)
61108-42900	Reinforce Sub-Assy, Front Body Pillar, Lower Rh	Side Member ([12.1997 - ] (9712- )SOT)
61108-42901	Reinforce Sub-Assy, Front Body Pillar, Lower Rh	Side Member ([12.1997 - ] (9712- )SOT)
61109-42900	Reinforce Sub-Assy, Front Body Pillar, Lower Lh	Side Member ([12.1997 - ] (9712- )SOT)
61109-42901	Reinforce Sub-Assy, Front Body Pillar, Lower Lh	Side Member ([12.1997 - ] (9712- )SOT)
61110-42070	Pillar, Front Body, Upper Outer Rh	Side Member ([12.1997 - ] (9712- )SOT)
61120-42070	Pillar, Front Body, Upper Outer Lh	Side Member ([12.1997 - ] (9712- )SOT)
61133-12190	Bracket, Front Body Pillar ,outer Rh	Side Member ([12.1997 - ] (9712- )SOT)
61158-42020	Retainer, Side Panel, No.1	Side Member ([12.1997 - ] (9712- )SOT)
61159-42020	Retainer, Side Panel, No.2 Rh	Side Member ([12.1997 - ] (9712- )SOT)
61165-42010	Bracket Sub-Assy, Instrument Panel To Cowl Side, Rh	Side Member ([12.1997 - ] (9712- )SOT)
61192-42010	Bracket, Computer To Cowl Side, No.2	Side Member ([12.1997 - ] (9712- )SOT)
61211-42011	Rail, Roof Side, Outer Rh	Side Member ([12.1997 - ] (9712- )SOT)
61212-42030	Rail, Roof Side, Outer Lh	Side Member ([12.1997 - ] (9712- )SOT)
61231-42040	Rail, Roof Side, Inner Rh	Side Member ([12.1997 - ] (9712- )SOT)
61231-42050	Rail, Roof Side, Inner Rh	Side Member ([12.1997 - ] (9712- )SOT)
61232-42040	Rail, Roof Side, Inner Lh	Side Member ([12.1997 - ] (9712- )SOT)
61232-42050	Rail, Roof Side, Inner Lh	Side Member ([12.1997 - ] (9712- )SOT)
61303-42060	Reinforce Sub-Assy, Center Body Pillar, Upper Rh	Side Member ([12.1997 - ] (9712- )SOT)
61304-42060	Reinforce Sub-Assy, Center Body Pillar, Upper Lh	Side Member ([12.1997 - ] (9712- )SOT)
61315-16020	Retainer, Door Lock Striker	Side Member ([12.1997 - ] (9712- )SOT)
61403-42010	Reinforce Sub-Assy, Rocker, Outer Rh	Side Member ([12.1997 - ] (9712- )SOT)
61404-42010	Reinforce Sub-Assy, Rocker, Outer Lh	Side Member ([12.1997 - ] (9712- )SOT)
61411-42050	Panel, Rocker, Outer Rh	Side Member ([12.1997 - ] (9712- )SOT)
61412-42050	Panel, Rocker, Outer Lh	Side Member ([12.1997 - ] (9712- )SOT)
61413-42030	Reinforcement, Rocker Panel, No.2 Rh	Side Member ([12.1997 - ] (9712- )SOT)
61414-42030	Reinforcement, Rocker Panel, No.2 Lh	Side Member ([12.1997 - ] (9712- )SOT)
61601-42010	Panel, Quarter, Rh	Side Member ([12.1997 - ] (9712- )SOT)
61602-42010	Panel, Quarter, Lh	Side Member ([12.1997 - ] (9712- )SOT)
61603-42060	Panel Sub-Assy, Quarter Wheel House, Rh	Side Member ([12.1997 - ] (9712- )SOT)
61604-42070	Panel Sub-Assy, Quarter Wheel House, Lh	Side Member ([12.1997 - ] (9712- )SOT)
61610-42060	Fender Assy, Rear Rh	Side Member ([12.1997 - ] (9712- )SOT)
61619-42010	Reinforcement, Quarter Panel, Rh	Side Member ([12.1997 - ] (9712- )SOT)
61620-42070	Fender Assy, Rear Lh	Side Member ([12.1997 - ] (9712- )SOT)
61623-42010	Trough, Back Door Opening, Rear Rh	Side Member ([12.1997 - ] (9712- )SOT)
61624-42010	Trough, Back Door Opening, Rear Lh	Side Member ([12.1997 - ] (9712- )SOT)
61625-42010	Extension, Quarter Panel, Rear Rh	Side Member ([12.1997 - ] (9712- )SOT)
61626-42010	Extension, Quarter Panel, Rear Lh	Side Member ([12.1997 - ] (9712- )SOT)
61627-42010	Extension, Quarter Panel, Rear Lower Rh	Side Member ([12.1997 - ] (9712- )SOT)
61628-42010	Extension, Quarter Panel, Rear Lower Lh	Side Member ([12.1997 - ] (9712- )SOT)
61631-42030	Panel, Quarter Wheel House, Outer Rh	Side Member ([12.1997 - ] (9712- )SOT)
61632-42040	Panel, Quarter Wheel House, Outer Lh	Side Member ([12.1997 - ] (9712- )SOT)
61637-42010	Bracket, Quarter Wheel House	Side Member ([12.1997 - ] (9712- )SOT)
61645-42011	Gusset, Quarter Wheel House, Rear Rh	Side Member ([12.1997 - ] (9712- )SOT)
61645-42900	Gusset, Quarter Wheel House, Rear Rh	Side Member ([12.1997 - ] (9712- )SOT)
61646-42010	Gusset, Quarter Wheel House, Rear Lh	Side Member ([12.1997 - ] (9712- )SOT)
61646-42900	Gusset, Quarter Wheel House, Rear Lh	Side Member ([12.1997 - ] (9712- )SOT)
61663-42010	Reinforcement, Quarter Wheel House, Inner Center Rh	Side Member ([12.1997 - ] (9712- )SOT)
61664-42010	Reinforcement, Quarter Wheel House, Inner Center Lh	Side Member ([12.1997 - ] (9712- )SOT)
61691-42010	Bracket, Fuel Tank Protector	Side Member ([12.1997 - ] (9712- )SOT)
61707-42010	Panel Sub-Assy, Quarter, Inner Rh	Side Member ([12.1997 - ] (9712- )SOT)
61708-42010	Panel Sub-Assy, Quarter, Inner Lh	Side Member ([12.1997 - ] (9712- )SOT)
61713-42011	Reinforce, Roof Side, Outer Rh	Side Member ([12.1997 - ] (9712- )SOT)
61713-42020	Reinforce, Roof Side, Outer Rh	Side Member ([12.1997 - ] (9712- )SOT)
61714-42011	Reinforce, Roof Side, Outer Lh	Side Member ([12.1997 - ] (9712- )SOT)
61714-42020	Reinforce, Roof Side, Outer Lh	Side Member ([12.1997 - ] (9712- )SOT)
61715-42030	Extension, Roof Side, Inner Upper Rh	Side Member ([12.1997 - ] (9712- )SOT)
61716-42030	Extension, Roof Side, Inner Upper Lh	Side Member ([12.1997 - ] (9712- )SOT)
61731-42050	Panel, Roof Side, Inner Rh	Side Member ([12.1997 - ] (9712- )SOT)
61732-42050	Panel, Roof Side, Inner Lh	Side Member ([12.1997 - ] (9712- )SOT)
61766-42010	Reinforcement, Belt Anchor To Roof Side, Inner Rh	Side Member ([12.1997 - ] (9712- )SOT)
61779-42010	Plate, Back Door Opening, Lower Lh	Side Member ([12.1997 - ] (9712- )SOT)
61825-12010	Cover, Roof Side, Inner Upper Rh	Side Member ([12.1997 - ] (9712- )SOT)
67362-42010	Reinforcement, Back Door Upper Hinge, Lh	Side Member ([12.1997 - ] (9712- )SOT)
67364-42010	Reinforcement, Back Door Lower Hinge, Lh	Side Member ([12.1997 - ] (9712- )SOT)
90119-06065	New Genuine Part	Side Member ([12.1997 - ] (9712- )SOT)
90119-06384	New Genuine Part	Side Member ([12.1997 - ] (9712- )SOT)
90179-06257	NUT	Side Member ([12.1997 - ] (9712- )SOT)
90179-08063	NUT	Side Member ([12.1997 - ] (9712- )SOT)
90189-06150	BUSH	Side Member ([12.1997 - ] (9712- )SOT)
90333-25003	Plug, Hole(For Hood)	Side Member ([12.1997 - ] (9712- )SOT)
90333-30002	Cover, Front Floor Hole	Side Member ([12.1997 - ] (9712- )SOT)
90901-19048	New Genuine Part	Side Member ([12.1997 - ] (9712- )SOT)
90950-01424	PLUG	Side Member ([12.1997 - ] (9712- )SOT)
90950-01506	Plug, Hole(For Luggage Compartment Door Panel)	Side Member ([12.1997 - ] (9712- )SOT)
90950-01557	PLUG	Side Member ([12.1997 - ] (9712- )SOT)
90950-01631	Plug Hole	Side Member ([12.1997 - ] (9712- )SOT)
90950-01646	New Genuine Part	Side Member ([12.1997 - ] (9712- )SOT)
90950-01759	PLUG	Side Member ([12.1997 - ] (9712- )SOT)
90950-01871	PLUG	Side Member ([12.1997 - ] (9712- )SOT)
90950-06001	Protector, Front Side Panel, No.3	Side Member ([12.1997 - ] (9712- )SOT)
91621-B0816	BOLT WWASHER	Side Member ([12.1997 - ] (9712- )SOT)
91626-60820	BOLT WWASHER	Side Member ([12.1997 - ] (9712- )SOT)
91626-B0820	New Genuine Part	Side Member ([12.1997 - ] (9712- )SOT)
