Search › Model › SXA15

SXA15

Toyota RAV4-VANGUARD · 1996 · 4,104 parts · 183 categories
SXA15 ×

← Back to categories

4,104 items

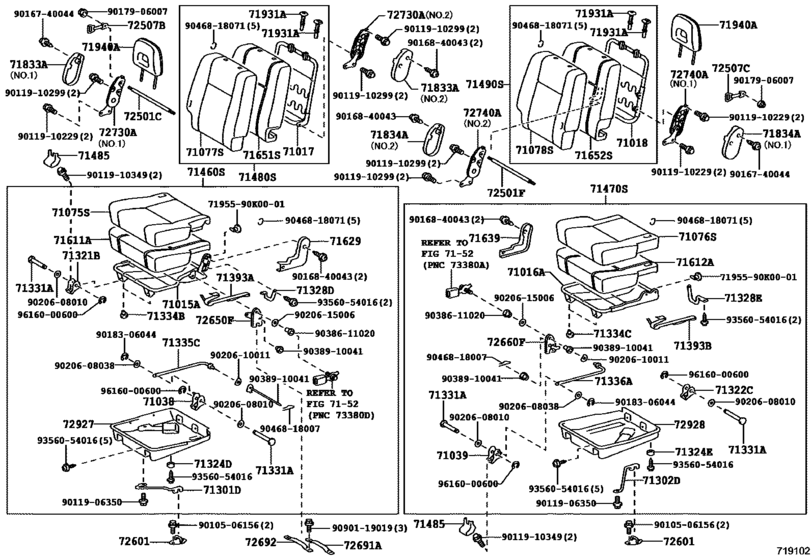

Seat & Seat Track ([08.1996 - ] (9608- )SXA10,15) 102
#OEMPart name
71015 71015-42040 Frame Sub-Assy, Rear Seat Cushion, Rh
71015 71015-42050 Frame Sub-Assy, Rear Seat Cushion, Rh
71016 71016-42040 Frame Sub-Assy, Rear Seat Cushion, Lh
71016 71016-42050 Frame Sub-Assy, Rear Seat Cushion, Lh
71017 71017-42020 Frame Sub-Assy, Rear Seat Back, Rh
71017 71017-42040 Frame Sub-Assy, Rear Seat Back, Rh
71018 71018-42020 Frame Sub-Assy, Rear Seat Back, Lh
71018 71018-42040 Frame Sub-Assy, Rear Seat Back, Lh
71038 71038-42011 Hinge Sub-Assy, Center Seat Back, Lh
71039 71039-42011 Hinge Sub-Assy, Rear Seat Cushion Leg, Lh
71075 71075-42011-B4 Cover, Rear Seat Cushion, Rh (For Separate Type)
71075 71075-42012-B7 Cover, Rear Seat Cushion, Rh (For Separate Type)
71076 71076-42011-B4 Cover, Rear Seat Cushion, Lh (For Separate Type)
71076 71076-42012-B7 Cover, Rear Seat Cushion, Lh (For Separate Type)
71077 71077-42011-B4 Cover, Rear Seat Back, Rh (For Separate Type)
71077 71077-42012-B7 Cover, Rear Seat Back, Rh (For Separate Type)
71078 71078-42011-B4 Cover, Rear Seat Back, Lh(For Separate Type)
71078 71078-42012-B7 Cover, Rear Seat Back, Lh(For Separate Type)
71301 71301-42011-B0 Hinge Sub-Assy, Rear Seat, Rh
71301 71301-42011-B1 Hinge Sub-Assy, Rear Seat, Rh
71302 71302-42011-B0 Hinge Sub-Assy, Rear Seat, Lh
71302 71302-42011-B1 Hinge Sub-Assy, Rear Seat, Lh
71321 71311-42010 Hinge, Rear Seat Cushion, Rh
71324 71324-42010 Cushion, Rear Seat, Rh
71331 71331-42010 Pin, Rear Seat Hinge
71334 71334-42020 Stopper, Rear Seat Leg, Rh
71335 71335-42011 Stay, Rear Seat Cushion Link, Rh
71336 71336-42011 Stay, Rear Seat Cushion Link, Lh
71393 71393-42010-B2 Band, Rear Seat Cushion, Rh
71460 71460-42012-B4 Cushion Assy, Rear Seat, Rh(For Separate Type)
71460 71460-42013-B4 Cushion Assy, Rear Seat, Rh(For Separate Type)
71460 71460-42013-B7 Cushion Assy, Rear Seat, Rh(For Separate Type)
71460 71460-42220-B0 Cushion Assy, Rear Seat, Rh(For Separate Type)
71460 71460-42221-B3 Cushion Assy, Rear Seat, Rh(For Separate Type)
71470 71470-42012-B4 Cushion Assy, Rear Seat, Lh (For Separate Type)
71470 71470-42013-B7 Cushion Assy, Rear Seat, Lh (For Separate Type)
71470 71470-42180-B0 Cushion Assy, Rear Seat, Lh (For Separate Type)
71470 71470-42181-B3 Cushion Assy, Rear Seat, Lh (For Separate Type)
71480 71480-42051-B4 Back Assy, Rear Seat, Rh (For Separate Type)
71480 71480-42052-B7 Back Assy, Rear Seat, Rh (For Separate Type)
71480 71480-42140-B0 Back Assy, Rear Seat, Rh (For Separate Type)
71480 71480-42141-B3 Back Assy, Rear Seat, Rh (For Separate Type)
71485 71485-42010-B1 Cover, Rear Seat Hinge
71490 71490-42051-B4 Back Assy, Rear Seat, Lh (For Separate Type)
71490 71490-42052-B7 Back Assy, Rear Seat, Lh (For Separate Type)
71490 71490-42140-B0 Back Assy, Rear Seat, Lh (For Separate Type)
71490 71490-42141-B3 Back Assy, Rear Seat, Lh (For Separate Type)
71611 71611-42030 Pad, Rear Seat Cushion, Rh
71612 71612-42030 Pad, Rear Seat Cushion, Lh
71629 71629-42020-B1 Cover, Rear Seat Cushion Hinge
71639 71639-42020-B6 Cover, Rear Seat Cushion Hinge, Lh
71651 71651-42030 Pad, Rear Seat Back, Rh(For Separate Type)
71652 71652-42030 Pad, Rear Seat Back, Lh(For Separate Type)
71833 71833-42020-B1 Cover, Rear Seat Reclining, No.1 Rh
71833 71833-42020-B2 Cover, Rear Seat Reclining, No.1 Rh
71833 71834-42030-B1 Cover, Rear Seat Reclining, No.1 Rh
71834 71833-42030-B1 Cover, Rear Seat Reclining, No.1 Lh
71834 71834-42020-B1 Cover, Rear Seat Reclining, No.1 Rh
71834 71834-42020-B2 Cover, Rear Seat Reclining, No.1 Lh
71931 71930-44010-B1 Support, Front Seat Headrest
71931 71930-44010-C0 Support, Front Seat Headrest
71931 71931-12040-B0 Support, Front Seat Headrest
71940 71910-42011-B5 Headrest Assy, Front Seat
71940 71910-42040-B1 Headrest Assy, Front Seat
72501 72345-42010 Pipe Sub-Assy, Reclining Connecting
72507 72507-42030-B1 Handle Sub-Assy, Reclining Release, Rh
72601 72601-42010 Striker Sub-Assy, Rear Seat Lock
72650 72650-42011 Lock Assy, Rear Seat, Rh
72660 72660-42011 Lock Assy, Rear Seat, Lh
72691 72691-42010 Striker, Rear Seat Cushion Lock, No.1
72692 72692-42010 Striker, Rear Seat Cushion Lock, No.2
72730 72730-42040 Adjuster Assy, Rear Seat Reclining, Rh
72730 72730-42050 Adjuster Assy, Rear Seat Reclining, Rh
72740 72740-42040 Adjuster Assy, Rear Seat Reclining, Lh
72740 72740-42050 Adjuster Assy, Rear Seat Reclining, Lh
72927 72927-42010-B1 Cover, Rear Seat Cushion Under, Rh
72928 72928-42010-B6 Cover, Rear Seat Cushion Under, Lh
7195590 71955-90K00-01 Support, Rear Seat Headrest
9010506156 90105-06156 New Genuine Part
9010506156 91511-40608 New Genuine Part
9011906350 90119-06350 BOLT
9011910229 90119-10229 BOLT
9011910299 90119-10299 New Genuine Part
9011910299 90031-05140 New Genuine Part
9011910349 90119-10349 BOLT
9011910349 91651-G1020 BOLT
9016740044 90167-40044 BOLT
9016840043 90168-40043 SCREW
9017906007 90179-06007 Nut
9018306044 90183-06044 NUT SPRING
9020608010 90206-08010 New Genuine Part
9020608038 90206-08038 New Genuine Part
9020610011 90206-10011 New Genuine Part
9020615006 90206-15006 New Genuine Part
9038611020 90386-11020 New Genuine Part
9038910041 90389-10041 BUSH
9046818007 90468-18007 New Genuine Part
9046818071 90468-18071 Clip (For Front Seat Cushion Cover)
9046818071 90468-16019 Clip (For Rear Seat Back)
9090119019 90901-19019 Bolt
9356054016 93560-54016 SCREW
9616000600 96160-00600 Ring, E(For Clutch Pedal Pawl)
