SXA15

Toyota RAV4-VANGUARD · 1996 · 4,104 parts · 183 categories

← Back to categories

4,104 items

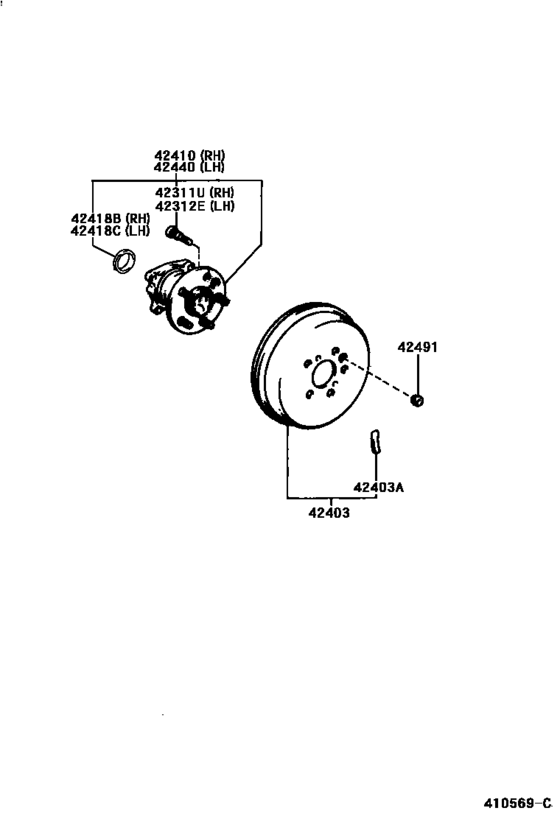

Rear Axle Shaft & Hub ([08.1996 - ] (9608- )SXA15,16) 11

#	OEM	Part name
42311	90942-02070	Bolt, Hub
42311	90942-02049	Bolt, Hub
42311	90942-02082	Bolt, Hub
42403	42431-42011	Drum Sub-Assy, Rear Brake
42403	42431-28100	Drum Sub-Assy, Rear Brake
42403	90937-01287	Piece, Balance (For Rear Brake Drum)
42403	90937-01288	Piece, Balance (For Rear Brake Drum)
42403	90937-01289	Piece, Balance (For Rear Brake Drum)
42410	42410-42010	Hub & Bearing Assy, Rear Axle, Rh
42418	43514-50010	Cap, Front Hub Grease
42491	47491-14010	Plug, Shoe Adjusting Hole (For Parking Brake)

OEM	Part name	Category
42410-42010	Hub & Bearing Assy, Rear Axle, Rh	Rear Axle Shaft & Hub ([08.1996 - ] (9608- )SXA15,16)
42431-28100	Drum Sub-Assy, Rear Brake	Rear Axle Shaft & Hub ([08.1996 - ] (9608- )SXA15,16)
42431-42011	Drum Sub-Assy, Rear Brake	Rear Axle Shaft & Hub ([08.1996 - ] (9608- )SXA15,16)
43514-50010	Cap, Front Hub Grease	Rear Axle Shaft & Hub ([08.1996 - ] (9608- )SXA15,16)
47491-14010	Plug, Shoe Adjusting Hole (For Parking Brake)	Rear Axle Shaft & Hub ([08.1996 - ] (9608- )SXA15,16)
90937-01287	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([08.1996 - ] (9608- )SXA15,16)
90937-01288	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([08.1996 - ] (9608- )SXA15,16)
90937-01289	Piece, Balance (For Rear Brake Drum)	Rear Axle Shaft & Hub ([08.1996 - ] (9608- )SXA15,16)
90942-02049	Bolt, Hub	Rear Axle Shaft & Hub ([08.1996 - ] (9608- )SXA15,16)
90942-02070	Bolt, Hub	Rear Axle Shaft & Hub ([08.1996 - ] (9608- )SXA15,16)
90942-02082	Bolt, Hub	Rear Axle Shaft & Hub ([08.1996 - ] (9608- )SXA15,16)
