Search › Model › SXA15

SXA15

Toyota RAV4-VANGUARD · 1996 · 4,104 parts · 183 categories

4,104 items

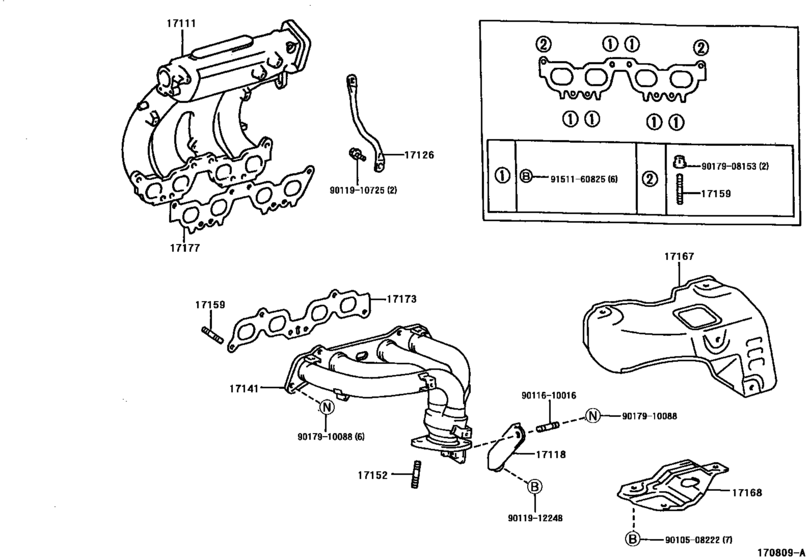

Manifold ([09.1997 - ] (9709- )) 20

#	OEM	Part name
17111	17101-74330	Manifold, Intake
17118	17118-74380	Stay, Manifold
17118	17118-74420	Stay, Manifold
17141	17140-74010	Manifold, Exhaust
17141	17141-74210	Manifold, Exhaust
17152	90116-10058	Bolt, Stud(For Manifold Extension)
17159	90116-10063	Bolt, Stud(For Exhaust Manifold To Cylinder Head)
17159	92122-60822	Stud
17167	17167-74250	Insulator, Exhaust Manifold Heat, No.1
17168	17168-74150	Insulator, Exhaust Manifold Heat, No.2
17173	17173-74040	Gasket, Exhaust Manifold To Head
17177	17177-74070	Gasket, Intake Manifold To Head, No.1
9010508222	90105-08222	BOLT WASHER BASED
9011610016	90116-10016	Bolt, Stud(For Manifold To Exhaust Pipe)
9011910725	90119-10725	New Genuine Part
9011912248	90119-12248	New Genuine Part
9017908153	90179-08153	NUT
9017910088	90179-10088	Nut
9151160825	91511-60825	Bolt (For Transfer Stiffener Plate)
9151160825	91511-B0825	Bolt (For Transfer Stiffener Plate)

OEM	Part name	Category
17101-74330	Manifold, Intake	Manifold ([09.1997 - ] (9709- ))
17118-74380	Stay, Manifold	Manifold ([09.1997 - ] (9709- ))
17118-74420	Stay, Manifold	Manifold ([09.1997 - ] (9709- ))
17140-74010	Manifold, Exhaust	Manifold ([09.1997 - ] (9709- ))
17141-74210	Manifold, Exhaust	Manifold ([09.1997 - ] (9709- ))
17167-74250	Insulator, Exhaust Manifold Heat, No.1	Manifold ([09.1997 - ] (9709- ))
17168-74150	Insulator, Exhaust Manifold Heat, No.2	Manifold ([09.1997 - ] (9709- ))
17173-74040	Gasket, Exhaust Manifold To Head	Manifold ([09.1997 - ] (9709- ))
17177-74070	Gasket, Intake Manifold To Head, No.1	Manifold ([09.1997 - ] (9709- ))
90105-08222	BOLT WASHER BASED	Manifold ([09.1997 - ] (9709- ))
90116-10016	Bolt, Stud(For Manifold To Exhaust Pipe)	Manifold ([09.1997 - ] (9709- ))
90116-10058	Bolt, Stud(For Manifold Extension)	Manifold ([09.1997 - ] (9709- ))
90116-10063	Bolt, Stud(For Exhaust Manifold To Cylinder Head)	Manifold ([09.1997 - ] (9709- ))
90119-10725	New Genuine Part	Manifold ([09.1997 - ] (9709- ))
90119-12248	New Genuine Part	Manifold ([09.1997 - ] (9709- ))
90179-08153	NUT	Manifold ([09.1997 - ] (9709- ))
90179-10088	Nut	Manifold ([09.1997 - ] (9709- ))
91511-60825	Bolt (For Transfer Stiffener Plate)	Manifold ([09.1997 - ] (9709- ))
91511-B0825	Bolt (For Transfer Stiffener Plate)	Manifold ([09.1997 - ] (9709- ))
92122-60822	Stud	Manifold ([09.1997 - ] (9709- ))
