SXA15

Toyota RAV4-VANGUARD · 1996 · 4,104 parts · 183 categories

4,104 items

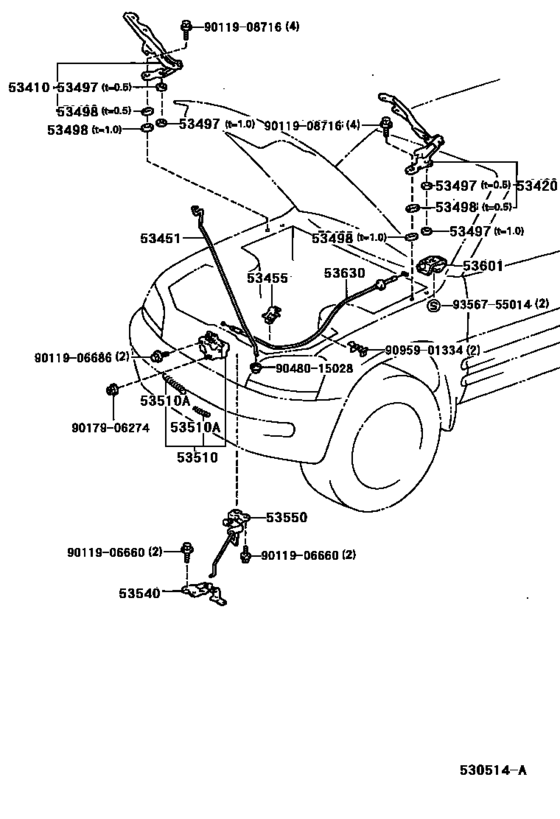

Hood Lock & Hinge ([11.1995 - ] (9511- )) 27

#	OEM	Part name
53410	53410-42010	Hinge Assy, Hood, Rh
53420	53420-42010	Hinge Assy, Hood, Lh
53451	53451-42020	Rod, Hood Support
53455	53455-12060	Clamp, Hood Support Rod
53497	53497-12050	Pad, Hood Hinge, No.1
53497	53497-42010	Pad, Hood Hinge, No.1
53497	53497-12070	Pad, Hood Hinge, No.1
53498	53498-12050	Pad, Hood Hinge, No.2
53498	53498-12070	Pad, Hood Hinge, No.2
53510	53510-42020	Lock Assy, Hood
53510	90506-09050	Spring, Tension(For Hood Lock)
53510	90506-20008	Spring, Tension(For Hood Lock)
53540	53540-42010	Lever Assy, Auxiliary Catch Release
53550	53550-42010	Hook Assy, Hood Auxiliary Catch
53601	53601-16020-B1	Lever Sub-Assy, Hood Lock Control
53601	53601-16020-22	Lever Sub-Assy, Hood Lock Control (black color)
53601	53601-20081-P0	Lever Sub-Assy, Hood Lock Control
53601	53601-24030-C0	Lever Sub-Assy, Hood Lock Control
53630	53630-42030	Cable Assy, Hood Lock Control
9011906660	90119-06660	BOLT
9011906686	90119-06686	BOLT WWASHER
9011908716	90119-08716	BOLT WWASHER
9017906274	90179-06274	Nut
9048015028	90480-15028	Grommet(For Hood Support)
9095901334	90959-01334	Clamp (For Fuel Lid Lock Control Cable)
9356755014	93567-55014	Direct
9356755014	93568-55014	Screw

OEM	Part name	Category
53410-42010	Hinge Assy, Hood, Rh	Hood Lock & Hinge ([11.1995 - ] (9511- ))
53420-42010	Hinge Assy, Hood, Lh	Hood Lock & Hinge ([11.1995 - ] (9511- ))
53451-42020	Rod, Hood Support	Hood Lock & Hinge ([11.1995 - ] (9511- ))
53455-12060	Clamp, Hood Support Rod	Hood Lock & Hinge ([11.1995 - ] (9511- ))
53497-12050	Pad, Hood Hinge, No.1	Hood Lock & Hinge ([11.1995 - ] (9511- ))
53497-12070	Pad, Hood Hinge, No.1	Hood Lock & Hinge ([11.1995 - ] (9511- ))
53497-42010	Pad, Hood Hinge, No.1	Hood Lock & Hinge ([11.1995 - ] (9511- ))
53498-12050	Pad, Hood Hinge, No.2	Hood Lock & Hinge ([11.1995 - ] (9511- ))
53498-12070	Pad, Hood Hinge, No.2	Hood Lock & Hinge ([11.1995 - ] (9511- ))
53510-42020	Lock Assy, Hood	Hood Lock & Hinge ([11.1995 - ] (9511- ))
53540-42010	Lever Assy, Auxiliary Catch Release	Hood Lock & Hinge ([11.1995 - ] (9511- ))
53550-42010	Hook Assy, Hood Auxiliary Catch	Hood Lock & Hinge ([11.1995 - ] (9511- ))
53601-16020-22	Lever Sub-Assy, Hood Lock Control (black color)	Hood Lock & Hinge ([11.1995 - ] (9511- ))
53601-16020-B1	Lever Sub-Assy, Hood Lock Control	Hood Lock & Hinge ([11.1995 - ] (9511- ))
53601-20081-P0	Lever Sub-Assy, Hood Lock Control	Hood Lock & Hinge ([11.1995 - ] (9511- ))
53601-24030-C0	Lever Sub-Assy, Hood Lock Control	Hood Lock & Hinge ([11.1995 - ] (9511- ))
53630-42030	Cable Assy, Hood Lock Control	Hood Lock & Hinge ([11.1995 - ] (9511- ))
90119-06660	BOLT	Hood Lock & Hinge ([11.1995 - ] (9511- ))
90119-06686	BOLT WWASHER	Hood Lock & Hinge ([11.1995 - ] (9511- ))
90119-08716	BOLT WWASHER	Hood Lock & Hinge ([11.1995 - ] (9511- ))
90179-06274	Nut	Hood Lock & Hinge ([11.1995 - ] (9511- ))
90480-15028	Grommet(For Hood Support)	Hood Lock & Hinge ([11.1995 - ] (9511- ))
90506-09050	Spring, Tension(For Hood Lock)	Hood Lock & Hinge ([11.1995 - ] (9511- ))
90506-20008	Spring, Tension(For Hood Lock)	Hood Lock & Hinge ([11.1995 - ] (9511- ))
90959-01334	Clamp (For Fuel Lid Lock Control Cable)	Hood Lock & Hinge ([11.1995 - ] (9511- ))
93567-55014	Direct	Hood Lock & Hinge ([11.1995 - ] (9511- ))
93568-55014	Screw	Hood Lock & Hinge ([11.1995 - ] (9511- ))
