Search › Model › SXA15

SXA15

Toyota RAV4-VANGUARD · 1996 · 4,104 parts · 183 categories

4,104 items

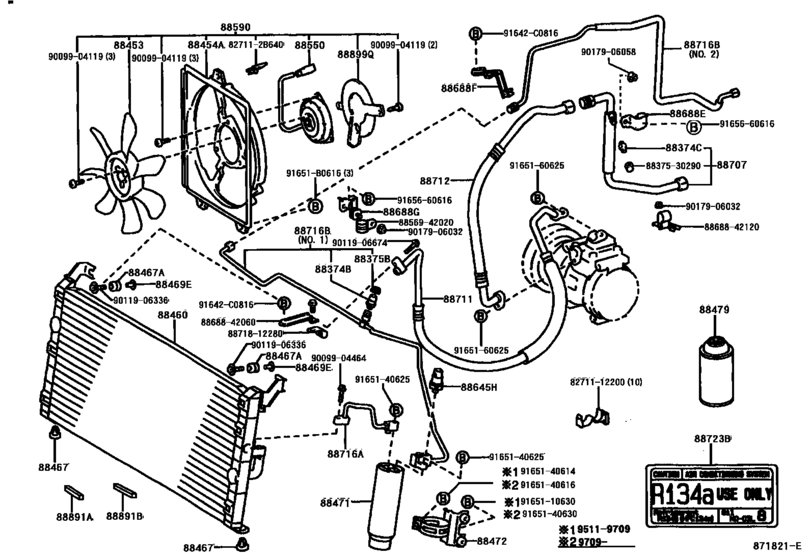

Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- )) 55

#	OEM	Part name
88374	88374-30010	Valve, Service, No.1
88375	88375-30280	Cap, Service Valve (For Cooler Pipe)
88453	88453-42010	Fan, Cooling (For Condenser)
88454	88454-42021	Shroud, Fan
88460	88460-42021	Condenser Assy, Cooler
88467	88467-16090	Cushion, Cooler Condenser, No.1
88467	90099-32130	Grommet (For Power Take-Off Cable Bracket)
88469	88469-28010	Collar, Condenser Bracket, No.1
88471	88471-20050	Receiver & Dryer Assy, Cooler
88471	88471-34010	Receiver & Dryer Assy, Cooler
88472	88472-42010	Bracket, Receiver Tank, No.1
88550	16363-74190	Motor Assy, Blower (For Condenser)
88590	88590-42021	Blower Assy, W/shroud
88645	88645-20050	Switch, Pressure
88688	88688-42100	Bracket, Cooler Refrigerant Hose, No.1
88688	88688-42120	Bracket, Cooler Refrigerant Hose, No.1
88688	88688-42040	Bracket, Cooler Refrigerant Hose, No.2
88711	88711-42010	Hose, Cooler Refrigerant Discharge, No.1
88712	88712-42042	Hose, Cooler Refrigerant Suction, No.1
88716	88716-42010	Pipe, Cooler Refrigerant Liquid, A
88716	88706-42030	Pipe, Cooler Refrigerant Liquid, B
88716	88706-42031	Pipe, Cooler Refrigerant Liquid, B
88716	88716-42070	Pipe, Cooler Refrigerant Liquid, B
88723	88723-14020	Label, Cooler Service Caution
88891	88578-42040	Packing A (For Cooler)
88891	88578-42030	Packing B (For Cooler)
88899	88899-42060	Plate, Cover
91642	91642-C0816	New Genuine Part
91642	91641-C0816	New Genuine Part
91651	91651-B0616	BOLT WWASHER
827112	82711-2B640	Wire, Fuse To Fuse(for Combustion Heater)
8271112200	82711-12200	Clamp (For Fuel Lid Lock Control Cable)
8837530290	88375-30290	Cap, Service Valve (For Cooler Pipe)
8856942020	88569-42020	Clamp (for Cooler Relay)
8868842060	88688-42060	Bracket, Cooler Diaphragm
8871812280	88718-12280	Clamp(For Cooler Refrigerant Pipe), No.1
9009904119	90099-04119	BOLT WASHER HEAD
9009904464	90099-04464	New Genuine Part
9011906336	90119-06336	SCREW
9011906674	90119-06674	New Genuine Part
9011906674	91651-G0645	New Genuine Part
9017906032	90179-06032	Direct
9017906032	90179-06274	Nut
9017906058	90179-06058	Nut, Wire Adjusting, No.1
9017906058	90179-06299	Nut, Wire Adjusting, No.1
9165110630	91651-10630	New Genuine Part
9165140614	91651-40614	Bolt
9165140616	91651-40616	BOLT
9165140616	91621-60614	Bolt(For Transaxle & Engine Setting)
9165140616	90080-11395	New Genuine Part
9165140625	91651-40625	New Genuine Part
9165140630	91651-40630	BOLT
9165160625	91651-60625	New Genuine Part
9165660616	91656-60616	BOLT
9165660616	91651-60616	BOLT

OEM	Part name	Category
16363-74190	Motor Assy, Blower (For Condenser)	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
82711-12200	Clamp (For Fuel Lid Lock Control Cable)	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
82711-2B640	Wire, Fuse To Fuse(for Combustion Heater)	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88374-30010	Valve, Service, No.1	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88375-30280	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88375-30290	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88453-42010	Fan, Cooling (For Condenser)	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88454-42021	Shroud, Fan	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88460-42021	Condenser Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88467-16090	Cushion, Cooler Condenser, No.1	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88469-28010	Collar, Condenser Bracket, No.1	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88471-20050	Receiver & Dryer Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88471-34010	Receiver & Dryer Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88472-42010	Bracket, Receiver Tank, No.1	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88569-42020	Clamp (for Cooler Relay)	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88578-42030	Packing B (For Cooler)	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88578-42040	Packing A (For Cooler)	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88590-42021	Blower Assy, W/shroud	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88645-20050	Switch, Pressure	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88688-42040	Bracket, Cooler Refrigerant Hose, No.2	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88688-42060	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88688-42100	Bracket, Cooler Refrigerant Hose, No.1	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88688-42120	Bracket, Cooler Refrigerant Hose, No.1	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88706-42030	Pipe, Cooler Refrigerant Liquid, B	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88706-42031	Pipe, Cooler Refrigerant Liquid, B	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88711-42010	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88712-42042	Hose, Cooler Refrigerant Suction, No.1	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88716-42010	Pipe, Cooler Refrigerant Liquid, A	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88716-42070	Pipe, Cooler Refrigerant Liquid, B	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88718-12280	Clamp(For Cooler Refrigerant Pipe), No.1	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88723-14020	Label, Cooler Service Caution	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
88899-42060	Plate, Cover	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
90080-11395	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
90099-04119	BOLT WASHER HEAD	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
90099-04464	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
90099-32130	Grommet (For Power Take-Off Cable Bracket)	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
90119-06336	SCREW	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
90119-06674	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
90179-06032	Direct	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
90179-06058	Nut, Wire Adjusting, No.1	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
90179-06274	Nut	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
90179-06299	Nut, Wire Adjusting, No.1	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
91621-60614	Bolt(For Transaxle & Engine Setting)	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
91641-C0816	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
91642-C0816	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
91651-10630	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
91651-40614	Bolt	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
91651-40616	BOLT	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
91651-40625	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
91651-40630	BOLT	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
91651-60616	BOLT	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
91651-60625	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
91651-B0616	BOLT WWASHER	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
91651-G0645	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
91656-60616	BOLT	Heating & Air Conditioning - Cooler Piping ([11.1995 - ] DEALER OPTION (9511- ))
