Search › Model › SXA15

SXA15

Toyota RAV4-VANGUARD · 1996 · 4,104 parts · 183 categories

4,104 items

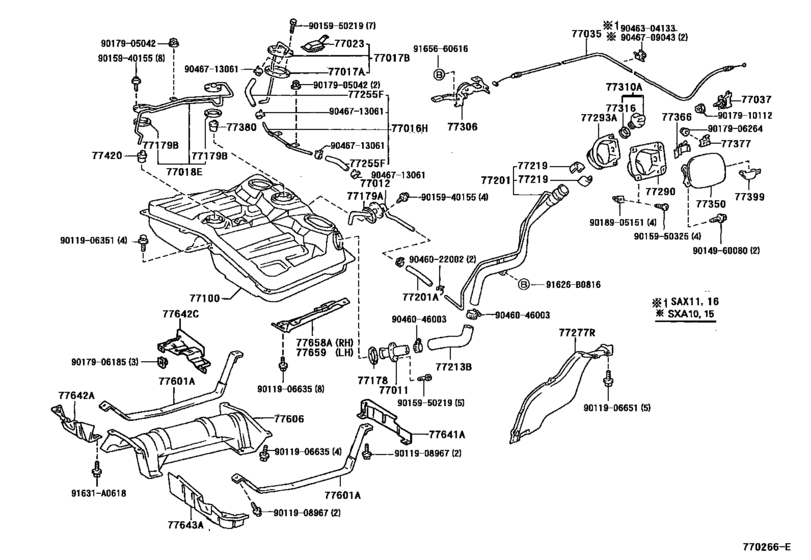

Fuel Tank & Tube ([11.1995 - ] (9511- )) 104

#	OEM	Part name
77011	77011-10060	Pipe Sub-Assy, Fuel Tank Filler, Lower
77012	77012-42030	Tube Sub-Assy, Fuel Tank Breather
77016	77016-42030	Tube Sub-Assy, Fuel Return Vent
77017	77169-14010	Gasket, Fuel Pump Bracket
77017	77017-42020	Tube Sub-Assy, Fuel Tank Vent
77018	77018-42040	Tube Sub-Assy, Fuel Tank Evaporation Vent
77023	77023-32030	Filter Sub-Assy, Fuel Suction Tube
77035	77035-42040	Cable Sub-Assy, Fuel Lid Lock Control
77037	77037-14020	Lock Sub-Assy, Fuel Filler Opening Lid
77100	77001-42061	Tank Assy, Fuel
77100	77001-42051	Tank Assy, Fuel
77100	95337-06020	Hose, Differential Pressure Control
77178	77178-20030	Gasket, Fuel Tank Filler Pipe, Lower
77179	77179-20040	Gasket, Fuel Tank Breather Tube
77179	77179-26010	Gasket, Fuel Tank Evap/vent Tube
77179	77179-26011	Gasket, Fuel Suction Tube Set, No.1
77201	77201-42040	Pipe Sub-Assy, Fuel Tank Inlet
77201	77201-42081	Pipe Sub-Assy, Fuel Tank Inlet
77201	77201-42080	Pipe Sub-Assy, Fuel Tank Inlet
77201	95312-13013	Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77213	77213-42020	Hose, Fuel Tank To Filler Pipe
77213	77213-42040	Hose, Fuel Tank To Filler Pipe
77219	77219-32030	Cover, Fuel Tank Filler Pipe
77251	77251-42030	Tube, Fuel Main
77255	95333-08020	Hose, Lpg Injector
77255	95337-08020	Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77261	77261-42020	Tube, Fuel Tank To Canister
77261	77259-42020	Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)
77266	77266-42010	Protector, Fuel Tube, No.1
77277	77277-42011	Protector, Fuel Tank Filler Pipe
77285	77285-42010	Clamp, Fuel Tube, No.1
77290	77290-42010	Shield Assy, Fuel Tank Filler Pipe
77293	77293-32020	Shield, Fuel Tank Filler Pipe, No.3
77295	77295-42010	Clamp, Fuel Tube W/grommet, No.1
77306	77306-32020	Lever Sub-Assy, Fuel Lid Lock Open
77310	77310-35080	Cap Assy, Fuel Tank
77310	77310-48020	Cap Assy, Fuel Tank
77316	77316-16010	Gasket (For Fuel Tank Cap)
77350	77350-42010	Lid Assy, Fuel Filler Opening
77366	77360-22020	Spring, Fuel Filler Opening Lid Hinge
77377	77377-20050	Retainer, Fuel Filler Opening Lid Lock
77380	77380-26010	Valve Assy, Fuel Cut Off
77399	77399-20010	Hanger, Fuel Tank Cap
77415	77415-30020	Support, Fuel Tube Grommet, No.5
77420	77420-26010	Valve Assy, Fuel Cut Off, No.2
77601	77601-42030	Band Sub-Assy, Fuel Tank, No.1
77606	77606-42010	Protector Sub-Assy, Fuel Tank, No.1
77641	77641-42010	Protector, Fuel Tank, No.1
77642	77642-42010	Protector, Fuel Tank, No.2
77642	77642-42020	Protector, Fuel Tank, No.2
77643	77643-42010	Protector, Fuel Tank, No.3
77658	77658-42010	Protector, Fuel Tank Edge, No.1
77659	77659-42010	Protector, Fuel Tank Edge, No.2
77740	77740-42032	Canister Assy, Charcoal
77740	77740-42033	Canister Assy, Charcoal
77751	77751-42020	Bracket, Charcoal Canister Base
91515	91515-G0625	New Genuine Part
91515	91511-G0622	BOLT, FLANGE
91626	91626-B0816	New Genuine Part
91626	91651-B0814	Bolt with washer
91631	91631-A0618	New Genuine Part
91632	91632-G0625	New Genuine Part
91632	91631-G0625	New Genuine Part
2586174100	25861-74100	Bracket, Vacuum Switching Valve
2586174100	25861-74101	Bracket, Vacuum Switching Valve
9011906351	90119-06351	New Genuine Part
9011906635	90119-06635	New Genuine Part
9011906651	90119-06651	BOLT WWASHER
9011908848	90119-08848	New Genuine Part
9011908967	90119-08967	New Genuine Part
9011908967	90129-08001	BOLT WWASHER
9014960080	90149-60080	New Genuine Part
9015940155	90159-40155	SCREW WWASHER
9015950219	90159-50219	BOLT
9015950219	90159-A0057	New Genuine Part
9015950325	90159-50325	New Genuine Part
9017905042	90179-05042	NUT
9017906185	90179-06185	CLIP BUMPER
9017906264	90179-06264	NUT, WWASHER
9017910112	90179-10112	New Genuine Part
9017910112	90179-10186	New Genuine Part
9018905151	90189-05151	New Genuine Part
9033330002	90333-30002	Cover, Front Floor Hole
9040214004	90402-14004	Nut, Union(For Oil Cooler Tube)
9046022002	90460-22002	CLAMP
9046022002	90460-22001	CLAMP
9046046003	90460-46003	Clamp (For Fuel Filler Pipe)
9046046003	90460-46005	Clamp (For Fuel Filler Pipe)
9046304133	90463-04133	New Genuine Part
9046400523	90464-00523	New Genuine Part
9046709043	90467-09043	Clamp, Hood Lock Control Cable
9046713061	90467-13061	Crip (For Fuel Tank Filler Pipe)
9046713063	90467-13063	New Genuine Part
9091012109	90910-12109	Valve Assy, Vacuum Switching
9091012109	90910-12271	Valve Assy, Vacuum Switching
9094901956	90949-01956	New Genuine Part
9095901239	90959-01239	New Genuine Part
9095901448	90959-01448	CLAMP
9162660616	91626-60616	New Genuine Part
9162660616	91621-J0612	BOLT W-WASHER
9165660616	91656-60616	BOLT
9165660616	91651-60616	BOLT
9613241100	96132-41100	Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100	96132-51100	Clip (For Hose)

OEM	Part name	Category
25861-74100	Bracket, Vacuum Switching Valve	Fuel Tank & Tube ([11.1995 - ] (9511- ))
25861-74101	Bracket, Vacuum Switching Valve	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77001-42051	Tank Assy, Fuel	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77001-42061	Tank Assy, Fuel	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77011-10060	Pipe Sub-Assy, Fuel Tank Filler, Lower	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77012-42030	Tube Sub-Assy, Fuel Tank Breather	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77016-42030	Tube Sub-Assy, Fuel Return Vent	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77017-42020	Tube Sub-Assy, Fuel Tank Vent	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77018-42040	Tube Sub-Assy, Fuel Tank Evaporation Vent	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77023-32030	Filter Sub-Assy, Fuel Suction Tube	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77035-42040	Cable Sub-Assy, Fuel Lid Lock Control	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77037-14020	Lock Sub-Assy, Fuel Filler Opening Lid	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77169-14010	Gasket, Fuel Pump Bracket	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77178-20030	Gasket, Fuel Tank Filler Pipe, Lower	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77179-20040	Gasket, Fuel Tank Breather Tube	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77179-26010	Gasket, Fuel Tank Evap/vent Tube	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77179-26011	Gasket, Fuel Suction Tube Set, No.1	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77201-42040	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77201-42080	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77201-42081	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77213-42020	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77213-42040	Hose, Fuel Tank To Filler Pipe	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77219-32030	Cover, Fuel Tank Filler Pipe	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77251-42030	Tube, Fuel Main	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77259-42020	Hose, Fuel, No.1 (For Fuel Tank To Canister Tube)	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77261-42020	Tube, Fuel Tank To Canister	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77266-42010	Protector, Fuel Tube, No.1	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77277-42011	Protector, Fuel Tank Filler Pipe	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77285-42010	Clamp, Fuel Tube, No.1	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77290-42010	Shield Assy, Fuel Tank Filler Pipe	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77293-32020	Shield, Fuel Tank Filler Pipe, No.3	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77295-42010	Clamp, Fuel Tube W/grommet, No.1	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77306-32020	Lever Sub-Assy, Fuel Lid Lock Open	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77310-35080	Cap Assy, Fuel Tank	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77310-48020	Cap Assy, Fuel Tank	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77316-16010	Gasket (For Fuel Tank Cap)	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77350-42010	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77360-22020	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77377-20050	Retainer, Fuel Filler Opening Lid Lock	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77380-26010	Valve Assy, Fuel Cut Off	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77399-20010	Hanger, Fuel Tank Cap	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77415-30020	Support, Fuel Tube Grommet, No.5	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77420-26010	Valve Assy, Fuel Cut Off, No.2	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77601-42030	Band Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77606-42010	Protector Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77641-42010	Protector, Fuel Tank, No.1	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77642-42010	Protector, Fuel Tank, No.2	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77642-42020	Protector, Fuel Tank, No.2	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77643-42010	Protector, Fuel Tank, No.3	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77658-42010	Protector, Fuel Tank Edge, No.1	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77659-42010	Protector, Fuel Tank Edge, No.2	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77740-42032	Canister Assy, Charcoal	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77740-42033	Canister Assy, Charcoal	Fuel Tank & Tube ([11.1995 - ] (9511- ))
77751-42020	Bracket, Charcoal Canister Base	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90119-06351	New Genuine Part	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90119-06635	New Genuine Part	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90119-06651	BOLT WWASHER	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90119-08848	New Genuine Part	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90119-08967	New Genuine Part	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90129-08001	BOLT WWASHER	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90149-60080	New Genuine Part	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90159-40155	SCREW WWASHER	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90159-50219	BOLT	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90159-50325	New Genuine Part	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90159-A0057	New Genuine Part	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90179-05042	NUT	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90179-06185	CLIP BUMPER	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90179-06264	NUT, WWASHER	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90179-10112	New Genuine Part	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90179-10186	New Genuine Part	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90189-05151	New Genuine Part	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90333-30002	Cover, Front Floor Hole	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90402-14004	Nut, Union(For Oil Cooler Tube)	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90460-22001	CLAMP	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90460-22002	CLAMP	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90460-46003	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90460-46005	Clamp (For Fuel Filler Pipe)	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90463-04133	New Genuine Part	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90464-00523	New Genuine Part	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90467-09043	Clamp, Hood Lock Control Cable	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90467-13061	Crip (For Fuel Tank Filler Pipe)	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90467-13063	New Genuine Part	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90910-12109	Valve Assy, Vacuum Switching	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90910-12271	Valve Assy, Vacuum Switching	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90949-01956	New Genuine Part	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90959-01239	New Genuine Part	Fuel Tank & Tube ([11.1995 - ] (9511- ))
90959-01448	CLAMP	Fuel Tank & Tube ([11.1995 - ] (9511- ))
91511-G0622	BOLT, FLANGE	Fuel Tank & Tube ([11.1995 - ] (9511- ))
91515-G0625	New Genuine Part	Fuel Tank & Tube ([11.1995 - ] (9511- ))
91621-J0612	BOLT W-WASHER	Fuel Tank & Tube ([11.1995 - ] (9511- ))
91626-60616	New Genuine Part	Fuel Tank & Tube ([11.1995 - ] (9511- ))
91626-B0816	New Genuine Part	Fuel Tank & Tube ([11.1995 - ] (9511- ))
91631-A0618	New Genuine Part	Fuel Tank & Tube ([11.1995 - ] (9511- ))
91631-G0625	New Genuine Part	Fuel Tank & Tube ([11.1995 - ] (9511- ))
91632-G0625	New Genuine Part	Fuel Tank & Tube ([11.1995 - ] (9511- ))
91651-60616	BOLT	Fuel Tank & Tube ([11.1995 - ] (9511- ))
91651-B0814	Bolt with washer	Fuel Tank & Tube ([11.1995 - ] (9511- ))
91656-60616	BOLT	Fuel Tank & Tube ([11.1995 - ] (9511- ))
95312-13013	Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)	Fuel Tank & Tube ([11.1995 - ] (9511- ))
95333-08020	Hose, Lpg Injector	Fuel Tank & Tube ([11.1995 - ] (9511- ))
95337-06020	Hose, Differential Pressure Control	Fuel Tank & Tube ([11.1995 - ] (9511- ))
95337-08020	Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)	Fuel Tank & Tube ([11.1995 - ] (9511- ))
96132-41100	Clamp Or Clip(For Radiator Reserve Tank Hose)	Fuel Tank & Tube ([11.1995 - ] (9511- ))
96132-51100	Clip (For Hose)	Fuel Tank & Tube ([11.1995 - ] (9511- ))

Source: Public OEM parts-catalog data
Variants: 2 / 10
Category: 183
Collected: 2026-08-02
