Search › Model › SXA15

SXA15

Toyota RAV4-VANGUARD · 1996 · 4,104 parts · 183 categories

4,104 items

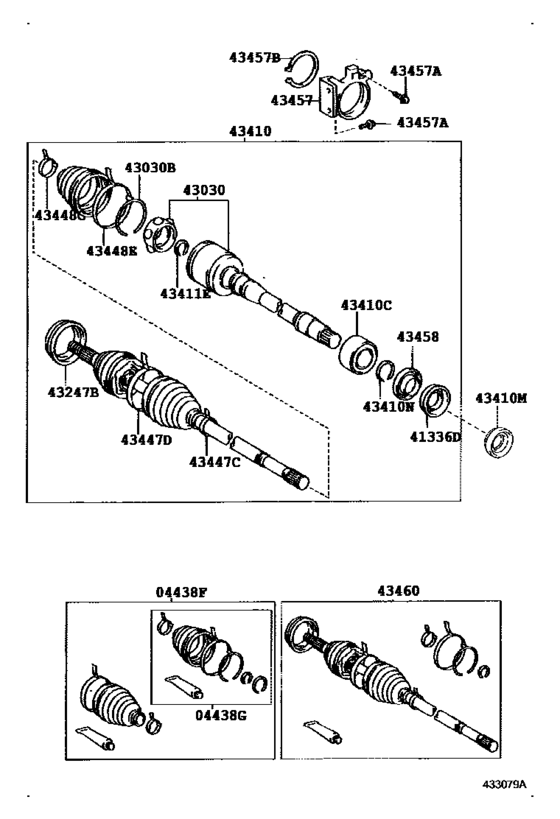

Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM) 29

#	OEM	Part name
4438	04438-42040	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04438-42041	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04438-42030	Boot Kit, Front Drive Shaft Inboard Joint, Rh
4438	04438-42031	Boot Kit, Front Drive Shaft Inboard Joint, Rh
41336	41336-12020	Cover, Dust(For Front Drive Shaft)
43030	43030-42010	Joint Assy, Front Drive Inboard, Rh
43030	90521-79001	Ring, Hole Snap
43247	43247-12010	Deflector, Rear Wheel Bearing Dust, No.1
43247	43247-33010	Deflector, Front Wheel Bearing Dust, No.2
43410	43410-42041	Shaft Assy, Front Drive, Rh
43410	43410-42051	Shaft Assy, Front Drive, Rh
43410	90363-41001	Bearing (For Front Drive Shaft)
43410	90311-40004	Seal, Oil(For Rear Transaxle Case Cover)
43410	90520-38015	Ring, Shaft Snap(For Rear Drive Shaft)
43411	90520-25034	Ring, Snap (For Rear Drive Shaft Outboard Joint)
43447	90949-01A65	Clamp (For Front Axle Outboard Joint Boot Rh)
43447	90949-01937	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
43448	90949-01108	Clamp (For Rear Drive Shaft Outboard Joint Boot)
43448	42346-22010	Clamp (For Rear Drive Shaft Outboard Joint Boot)
43457	43457-20050	Bracket, Drive Shaft Bearing
43457	90105-10285	Bolt (For Drive Shaft Bearing Bracket Setting No.1)
43457	90105-10361	Bolt (For Rear Differential Carrier Cover Setting)
43457	90119-10461	Bolt (For Drive Shaft Bearing Bracket Setting No.1)
43457	90521-78002	Ring, Hole Snap(For Rear Drive Shaft)
43458	43458-12010	Cover, Front Drive Shaft Dust
43460	43470-49036	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-49037	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-49046	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-49047	Shaft Assy, Front Drive Outboard Joint, Rh

OEM	Part name	Category
04438-42030	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
04438-42031	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
04438-42040	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
04438-42041	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
41336-12020	Cover, Dust(For Front Drive Shaft)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
42346-22010	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
43030-42010	Joint Assy, Front Drive Inboard, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
43247-12010	Deflector, Rear Wheel Bearing Dust, No.1	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
43247-33010	Deflector, Front Wheel Bearing Dust, No.2	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
43410-42041	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
43410-42051	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
43457-20050	Bracket, Drive Shaft Bearing	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
43458-12010	Cover, Front Drive Shaft Dust	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
43470-49036	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
43470-49037	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
43470-49046	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
43470-49047	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
90105-10285	Bolt (For Drive Shaft Bearing Bracket Setting No.1)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
90105-10361	Bolt (For Rear Differential Carrier Cover Setting)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
90119-10461	Bolt (For Drive Shaft Bearing Bracket Setting No.1)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
90311-40004	Seal, Oil(For Rear Transaxle Case Cover)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
90363-41001	Bearing (For Front Drive Shaft)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
90520-25034	Ring, Snap (For Rear Drive Shaft Outboard Joint)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
90520-38015	Ring, Shaft Snap(For Rear Drive Shaft)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
90521-78002	Ring, Hole Snap(For Rear Drive Shaft)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
90521-79001	Ring, Hole Snap	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
90949-01108	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
90949-01937	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
90949-01A65	Clamp (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..MTM)
