Search › Model › SXA15

SXA15

Toyota RAV4-VANGUARD · 1996 · 4,104 parts · 183 categories

4,104 items

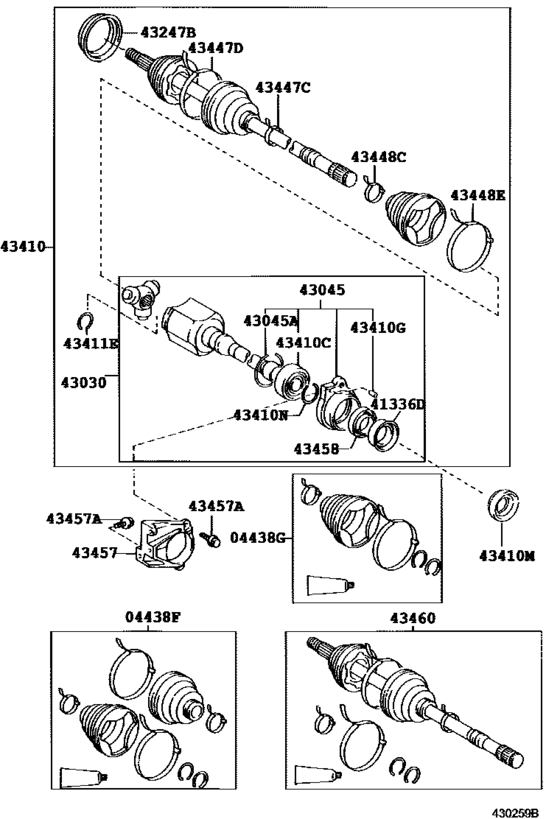

Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM) 50

#	OEM	Part name
4438	04438-12290	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04438-20134	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04438-20131	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04438-20132	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04438-20133	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04438-12420	Boot Kit, Front Drive Shaft Inboard Joint, Rh
4438	04438-42201	Boot Kit, Front Drive Shaft Inboard Joint, Rh
4438	04438-20121	Boot Kit, Front Drive Shaft Inboard Joint, Rh
41336	41336-20011	Cover, Dust(For Front Drive Shaft)
41336	41336-20050	Cover, Front Drive Shaft Dust, Rh
43030	43030-20030	Joint Assy, Front Drive Inboard, Rh
43030	43030-32060	Joint Assy, Rear Drive Shaft Inboard, Rh
43045	43045-20010	Case Sub Assy, Drive Shaft Bearing
43045	96153-00680	Ring, Snap (For Case Sub Assy, Drive Shaft Bearing)
43247	43247-12010	Deflector, Rear Wheel Bearing Dust, No.1
43247	43247-33010	Deflector, Front Wheel Bearing Dust, No.2
43410	43410-20541	Shaft Assy, Front Drive, Rh
43410	43410-20543	Shaft Assy, Front Drive, Rh
43410	43410-20542	Shaft Assy, Front Drive, Rh
43410	43410-20581	Shaft Assy, Front Drive, Rh
43410	43410-20583	Shaft Assy, Front Drive, Rh
43410	43410-20582	Shaft Assy, Front Drive, Rh
43410	90363-36001	Bearing
43410	90363-36004	Bearing(For Rear Drive Shaft)
43410	90363-36010	Bearing (For Front Drive Shaft)
43410	90250-06003	Pin, Straight
43410	90311-35019	Seal, Oil, No.2(For Transaxle Case)
43410	90311-35045	Oil Seal, Front Drive Shaft, Rh
43410	90520-33008	Ring, Hole Snap (For Differential Side Gear Shaft)
43411	90520-22005	Ring, Snap (For Rear Drive Shaft)
43447	42345-16030	Clamp, Rear Drive Shaft Boot
43447	42345-20090	Clamp (For Front Axle Outboard Joint Boot Rh)
43447	42345-20100	Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)
43447	42345-20110	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
43447	42345-20120	Clamp, No.2 (For Rear Drive Shaft Outboard Joint Boot Rh)
43447	90949-01076	Clamp (For Rear Drive Shaft Outboard Joint Boot)
43447	42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big
43447	90949-01946	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
43448	90949-01078	Clamp (For Rear Drive Shaft Outboard Joint Boot)
43457	43457-20040	Bracket, Drive Shaft Bearing
43457	90105-10285	Bolt (For Drive Shaft Bearing Bracket Setting No.1)
43457	90105-10361	Bolt (For Rear Differential Carrier Cover Setting)
43458	43458-20011	Cover, Front Drive Shaft Dust
43460	43470-19646	Shaft Assy, Front Drive Outboard Joint, Rh - FRONT DRIVE OUTBOARD JOINT, LH
43460	43470-19659	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-19647	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-19648	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-19656	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-19657	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-19658	Shaft Assy, Front Drive Outboard Joint, Rh

OEM	Part name	Category
04438-12290	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
04438-12420	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
04438-20121	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
04438-20131	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
04438-20132	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
04438-20133	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
04438-20134	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
04438-42201	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
41336-20011	Cover, Dust(For Front Drive Shaft)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
41336-20050	Cover, Front Drive Shaft Dust, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
42345-16030	Clamp, Rear Drive Shaft Boot	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
42345-20090	Clamp (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
42345-20100	Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
42345-20110	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
42345-20120	Clamp, No.2 (For Rear Drive Shaft Outboard Joint Boot Rh)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
43030-20030	Joint Assy, Front Drive Inboard, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
43030-32060	Joint Assy, Rear Drive Shaft Inboard, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
43045-20010	Case Sub Assy, Drive Shaft Bearing	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
43247-12010	Deflector, Rear Wheel Bearing Dust, No.1	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
43247-33010	Deflector, Front Wheel Bearing Dust, No.2	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
43410-20541	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
43410-20542	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
43410-20543	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
43410-20581	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
43410-20582	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
43410-20583	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
43457-20040	Bracket, Drive Shaft Bearing	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
43458-20011	Cover, Front Drive Shaft Dust	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
43470-19646	Shaft Assy, Front Drive Outboard Joint, Rh - FRONT DRIVE OUTBOARD JOINT, LH	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
43470-19647	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
43470-19648	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
43470-19656	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
43470-19657	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
43470-19658	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
43470-19659	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
90105-10285	Bolt (For Drive Shaft Bearing Bracket Setting No.1)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
90105-10361	Bolt (For Rear Differential Carrier Cover Setting)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
90250-06003	Pin, Straight	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
90311-35019	Seal, Oil, No.2(For Transaxle Case)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
90311-35045	Oil Seal, Front Drive Shaft, Rh	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
90363-36001	Bearing	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
90363-36004	Bearing(For Rear Drive Shaft)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
90363-36010	Bearing (For Front Drive Shaft)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
90520-22005	Ring, Snap (For Rear Drive Shaft)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
90520-33008	Ring, Hole Snap (For Differential Side Gear Shaft)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
90949-01076	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
90949-01078	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
90949-01946	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
96153-00680	Ring, Snap (For Case Sub Assy, Drive Shaft Bearing)	Front Drive Shaft ([02.1996 - ] RH (9602- )SXA15,16..ATM)
