Search › Model › SXA15

SXA15

Toyota RAV4-VANGUARD · 1996 · 4,104 parts · 183 categories

4,104 items

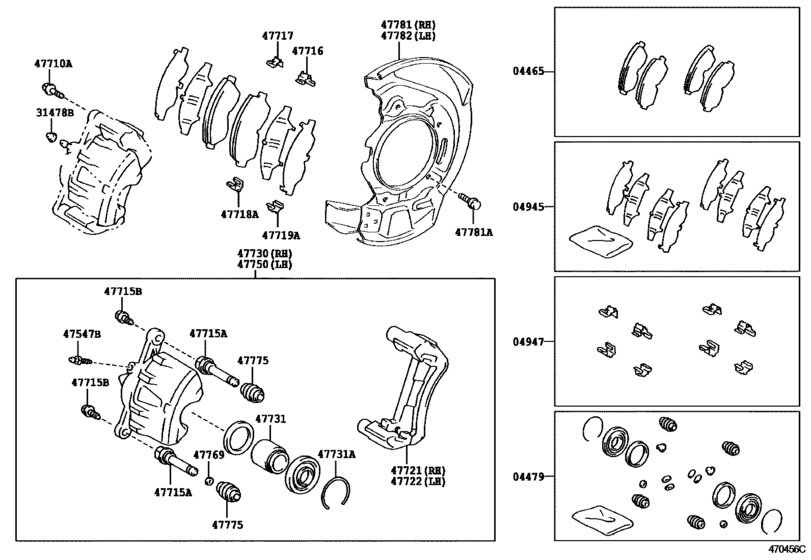

Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- )) 27

#	OEM	Part name
4465	04465-42012	Pad Kit, Disc Brake, Front
4465	04465-42120	Pad Kit, Disc Brake, Front
4465	04465-42060	Pad Kit, Disc Brake, Front
4479	04479-42010	Cylinder Kit, Disc Brake, Front
4945	04945-42030	Shim Kit, Anti Squeal, Front
4945	04945-42031	Shim Kit, Anti Squeal, Front
4947	04947-42030	Fitting Kit, Disc Brake, Front
31478	31478-30010	Bleeder Plug Cap
47547	47547-35020	Plug, Bleeder(For Front Disc Brake)
47710	90105-12131	Bolt, Hexagon(For Front Disc Brake Caliper)
47715	47715-30080	Pin, Front Disc Brake Cylinder Slide
47715	90105-08304	Bolt(For Front Disc Brake Cylinder Slide)
47716	47716-22030	Plate, Pad Support, No.1(For Front Disc Brake)
47717	47717-22020	Plate, Pad Support, No.2(For Front Disc Brake)
47718	47718-42020	Plate, Pad Support, No.3(For Front Disc Brake)
47719	47719-42020	Plate, Pad Support, No.4(For Front Disc Brake)
47721	47721-42010	Mounting, Front Disc Brake Cylinder, Rh
47722	47722-42010	Mounting, Front Disc Brake Cylinder, Lh
47730	47730-42010	Cylinder Assy, Front Disc Brake, Rh
47731	47731-42010	Piston, Front Disc Brake
47731	90522-64003	Ring, Set(For Front Disc Brake Piston)
47750	47750-42010	Cylinder Assy, Disc Brake, Lh
47769	47769-22040	Bush, Cylinder Slide, No.1(For Front Disc Brake)
47775	47775-22040	Boot, Bush Dust(For Front Disc Brake)
47781	47781-42010	Cover, Disc Brake Dust, Front Rh
47781	90119-06227	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
47782	47782-42010	Cover, Disc Brake Dust, Front Lh

OEM	Part name	Category
04465-42012	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
04465-42060	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
04465-42120	Pad Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
04479-42010	Cylinder Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
04945-42030	Shim Kit, Anti Squeal, Front	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
04945-42031	Shim Kit, Anti Squeal, Front	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
04947-42030	Fitting Kit, Disc Brake, Front	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
31478-30010	Bleeder Plug Cap	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
47547-35020	Plug, Bleeder(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
47715-30080	Pin, Front Disc Brake Cylinder Slide	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
47716-22030	Plate, Pad Support, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
47717-22020	Plate, Pad Support, No.2(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
47718-42020	Plate, Pad Support, No.3(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
47719-42020	Plate, Pad Support, No.4(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
47721-42010	Mounting, Front Disc Brake Cylinder, Rh	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
47722-42010	Mounting, Front Disc Brake Cylinder, Lh	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
47730-42010	Cylinder Assy, Front Disc Brake, Rh	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
47731-42010	Piston, Front Disc Brake	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
47750-42010	Cylinder Assy, Disc Brake, Lh	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
47769-22040	Bush, Cylinder Slide, No.1(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
47775-22040	Boot, Bush Dust(For Front Disc Brake)	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
47781-42010	Cover, Disc Brake Dust, Front Rh	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
47782-42010	Cover, Disc Brake Dust, Front Lh	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
90105-08304	Bolt(For Front Disc Brake Cylinder Slide)	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
90105-12131	Bolt, Hexagon(For Front Disc Brake Caliper)	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
90119-06227	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
90522-64003	Ring, Set(For Front Disc Brake Piston)	Front Disc Brake Caliper & Dust Cover ([11.1995 - ] (9511- ))
