Search › Model › SXA15

SXA15

Toyota RAV4-VANGUARD · 1996 · 4,104 parts · 183 categories

4,104 items

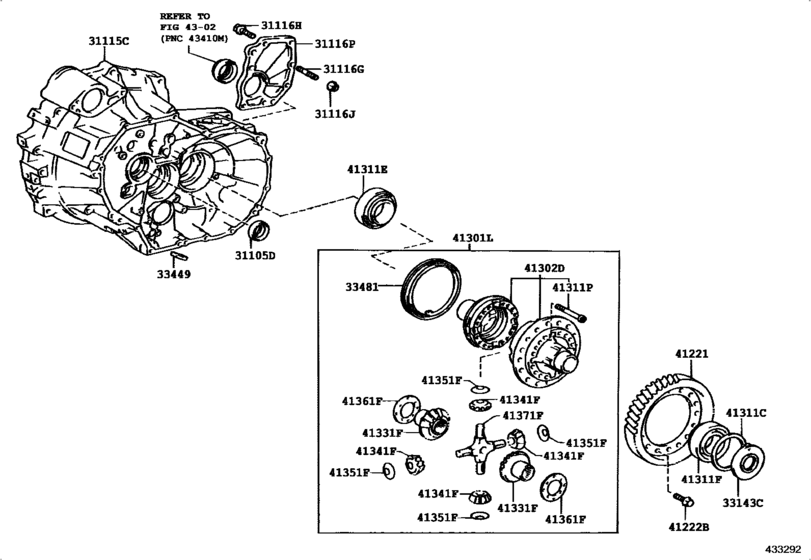

Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM) 50

#	OEM	Part name
31105	90311-30006	Seal, Oil, No.1(For Front Transaxle Case)
31105	90311-30017	Seal, Oil, No.1(For Front Transaxle Case)
31115	31115-33012	Case, Transaxle
31115	31115-33013	Case, Front Transaxle(Mtm)
31116	90116-12019	Bolt, Stud(For Rear Transaxle Case Cover)
31116	90105-12135	Bolt(For Rear Transaxle Case Cover)
31116	90179-12068	Nut(For Transaxle Case Cover)
31116	31116-17010	Cover, Transaxle Case
33143	33143-20040	Baffle, Rear Differential Oil
33449	33449-20010	Magnet, Transmission
33481	33481-33011	Gear, Speedometer Drive (Mtm)
41221	41221-12270	Gear, Front Differential Ring
41221	41221-42040	Gear, Front Differential Ring
41221	41221-42080	Gear, Front Differential Ring
41222	90105-12154	Bolt (For Rear Differential Ring Gear Set)
41301	41301-33010	Case Sub-Assy, Front Differential, No.1
41302	41302-17013	Case Sub-Assy, Rear Differential
41302	41302-20040	Case Sub-Assy, Front Differential, No.2
41311	90564-76001	Shim(For Differential Case)
41311	90564-76002	Shim(For Differential Case)
41311	90564-76003	Shim(For Differential Case)
41311	90564-76004	Shim(For Differential Case)
41311	90564-76005	Shim(For Differential Case)
41311	90564-76006	Shim(For Differential Case)
41311	90564-76007	Shim(For Differential Case)
41311	90564-76008	Shim(For Differential Case)
41311	90564-76009	Shim(For Differential Case)
41311	90564-76010	Shim(For Differential Case)
41311	90564-76011	Shim(For Differential Case)
41311	90564-76012	Shim(For Differential Case)
41311	90564-76013	Shim(For Differential Case)
41311	90564-76014	Shim(For Differential Case)
41311	90564-76015	Shim(For Differential Case)
41311	90564-76016	Shim(For Differential Case)
41311	90564-76017	Shim(For Differential Case)
41311	90564-76018	Shim(For Differential Case)
41311	90366-57001	Bearing(For Rear Differential Case)
41311	90366-50014	Bearing(For Rear Differential Case)
41311	90149-10003	Screw(For Rear Differential Case)
41331	41331-17010	Gear, Rear Differential Side
41341	41341-20020	Pinion, Rear Differential
41351	41351-20010	Washer, Rear Differential Pinion Thrust
41361	41362-17010	Washer, Rear Differential Side Gear Thrust, No.1
41361	41362-17020	Washer, Rear Differential Side Gear Thrust, No.1
41361	41362-17030	Washer, Rear Differential Side Gear Thrust, No.1
41361	41362-17040	Washer, Rear Differential Side Gear Thrust, No.1
41361	41362-17050	Washer, Rear Differential Side Gear Thrust, No.1
41361	41362-17060	Washer, Rear Differential Side Gear Thrust, No.1
41361	41362-17070	Washer, Rear Differential Side Gear Thrust, No.1
41371	41371-32010	Spider, Front Differential

OEM	Part name	Category
31115-33012	Case, Transaxle	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
31115-33013	Case, Front Transaxle(Mtm)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
31116-17010	Cover, Transaxle Case	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
33143-20040	Baffle, Rear Differential Oil	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
33449-20010	Magnet, Transmission	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
33481-33011	Gear, Speedometer Drive (Mtm)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
41221-12270	Gear, Front Differential Ring	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
41221-42040	Gear, Front Differential Ring	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
41221-42080	Gear, Front Differential Ring	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
41301-33010	Case Sub-Assy, Front Differential, No.1	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
41302-17013	Case Sub-Assy, Rear Differential	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
41302-20040	Case Sub-Assy, Front Differential, No.2	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
41331-17010	Gear, Rear Differential Side	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
41341-20020	Pinion, Rear Differential	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
41351-20010	Washer, Rear Differential Pinion Thrust	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
41362-17010	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
41362-17020	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
41362-17030	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
41362-17040	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
41362-17050	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
41362-17060	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
41362-17070	Washer, Rear Differential Side Gear Thrust, No.1	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
41371-32010	Spider, Front Differential	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90105-12135	Bolt(For Rear Transaxle Case Cover)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90105-12154	Bolt (For Rear Differential Ring Gear Set)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90116-12019	Bolt, Stud(For Rear Transaxle Case Cover)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90149-10003	Screw(For Rear Differential Case)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90179-12068	Nut(For Transaxle Case Cover)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90311-30006	Seal, Oil, No.1(For Front Transaxle Case)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90311-30017	Seal, Oil, No.1(For Front Transaxle Case)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90366-50014	Bearing(For Rear Differential Case)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90366-57001	Bearing(For Rear Differential Case)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90564-76001	Shim(For Differential Case)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90564-76002	Shim(For Differential Case)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90564-76003	Shim(For Differential Case)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90564-76004	Shim(For Differential Case)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90564-76005	Shim(For Differential Case)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90564-76006	Shim(For Differential Case)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90564-76007	Shim(For Differential Case)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90564-76008	Shim(For Differential Case)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90564-76009	Shim(For Differential Case)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90564-76010	Shim(For Differential Case)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90564-76011	Shim(For Differential Case)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90564-76012	Shim(For Differential Case)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90564-76013	Shim(For Differential Case)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90564-76014	Shim(For Differential Case)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90564-76015	Shim(For Differential Case)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90564-76016	Shim(For Differential Case)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90564-76017	Shim(For Differential Case)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
90564-76018	Shim(For Differential Case)	Front Axle Housing & Differential ([02.1996 - ] E250 (9602- )SXA15,16..MTM)
