Search › Model › SXA15

SXA15

Toyota RAV4-VANGUARD · 1996 · 4,104 parts · 183 categories

4,104 items

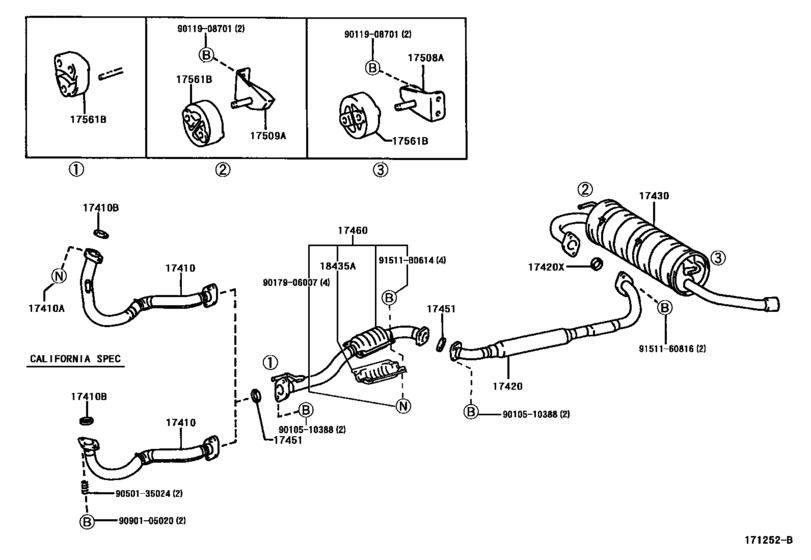

Exhaust Pipe ([09.1997 - ] (9709- )) 26

#	OEM	Part name
17410	17410-7A610	Pipe Assy, Exhaust, Front
17410	17410-7A710	Pipe Assy, Exhaust, Front
17410	90179-10070	Nut, Exhaust Pipe Set Stud Bolt
17410	90080-17187	Nut, Exhaust Pipe Set Stud Bolt
17410	17451-74051	Gasket, Exhaust Pipe
17410	90917-06065	Gasket, Exhaust Pipe
17420	17420-7A090	Pipe Assy, Exhaust, Center
17420	17420-7A091	Pipe Assy, Exhaust, Center
17420	90917-06062	Gasket, Exhaust Pipe
17420	90080-43034	Gasket, Exhaust Pipe
17430	17430-7B040	Pipe Assy, Exhaust, Tail
17460	17460-74150	Converter Assy, Catalytic W/pipe
17460	17460-74160	Converter Assy, Catalytic W/pipe
17508	17508-74120	Bracket Sub-Assy, Exhaust Pipe No.3 Support
17509	17509-74210	Bracket Sub-Assy, Exhaust Pipe No.4 Support
17561	17561-74110	SUPPORT, EXHAUST PIPE
17561	17565-46010	Bolt Or Ring, Exhaust Tail Pipe (For Front)
18435	18435-20020	Protector, Catalytic Converter
91511	91511-B0614	BOLT, FLANGE
9010510388	90105-10388	BOLT
9011908701	90119-08701	BOLT
9017906007	90179-06007	Nut
9050135024	90501-35024	SPRING COMPRESSION
9090105020	90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)
9151160816	91511-60816	BOLT
9151160816	91511-B0816	BOLT

OEM	Part name	Category
17410-7A610	Pipe Assy, Exhaust, Front	Exhaust Pipe ([09.1997 - ] (9709- ))
17410-7A710	Pipe Assy, Exhaust, Front	Exhaust Pipe ([09.1997 - ] (9709- ))
17420-7A090	Pipe Assy, Exhaust, Center	Exhaust Pipe ([09.1997 - ] (9709- ))
17420-7A091	Pipe Assy, Exhaust, Center	Exhaust Pipe ([09.1997 - ] (9709- ))
17430-7B040	Pipe Assy, Exhaust, Tail	Exhaust Pipe ([09.1997 - ] (9709- ))
17451-74051	Gasket, Exhaust Pipe	Exhaust Pipe ([09.1997 - ] (9709- ))
17460-74150	Converter Assy, Catalytic W/pipe	Exhaust Pipe ([09.1997 - ] (9709- ))
17460-74160	Converter Assy, Catalytic W/pipe	Exhaust Pipe ([09.1997 - ] (9709- ))
17508-74120	Bracket Sub-Assy, Exhaust Pipe No.3 Support	Exhaust Pipe ([09.1997 - ] (9709- ))
17509-74210	Bracket Sub-Assy, Exhaust Pipe No.4 Support	Exhaust Pipe ([09.1997 - ] (9709- ))
17561-74110	SUPPORT, EXHAUST PIPE	Exhaust Pipe ([09.1997 - ] (9709- ))
17565-46010	Bolt Or Ring, Exhaust Tail Pipe (For Front)	Exhaust Pipe ([09.1997 - ] (9709- ))
18435-20020	Protector, Catalytic Converter	Exhaust Pipe ([09.1997 - ] (9709- ))
90080-17187	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([09.1997 - ] (9709- ))
90080-43034	Gasket, Exhaust Pipe	Exhaust Pipe ([09.1997 - ] (9709- ))
90105-10388	BOLT	Exhaust Pipe ([09.1997 - ] (9709- ))
90119-08701	BOLT	Exhaust Pipe ([09.1997 - ] (9709- ))
90179-06007	Nut	Exhaust Pipe ([09.1997 - ] (9709- ))
90179-10070	Nut, Exhaust Pipe Set Stud Bolt	Exhaust Pipe ([09.1997 - ] (9709- ))
90501-35024	SPRING COMPRESSION	Exhaust Pipe ([09.1997 - ] (9709- ))
90901-05020	Bolt Or Ring, Exhaust Pipe Front (For Front)	Exhaust Pipe ([09.1997 - ] (9709- ))
90917-06062	Gasket, Exhaust Pipe	Exhaust Pipe ([09.1997 - ] (9709- ))
90917-06065	Gasket, Exhaust Pipe	Exhaust Pipe ([09.1997 - ] (9709- ))
91511-60816	BOLT	Exhaust Pipe ([09.1997 - ] (9709- ))
91511-B0614	BOLT, FLANGE	Exhaust Pipe ([09.1997 - ] (9709- ))
91511-B0816	BOLT	Exhaust Pipe ([09.1997 - ] (9709- ))
