Search › Model › SXA15

SXA15

Toyota RAV4-VANGUARD · 1996 · 4,104 parts · 183 categories

4,104 items

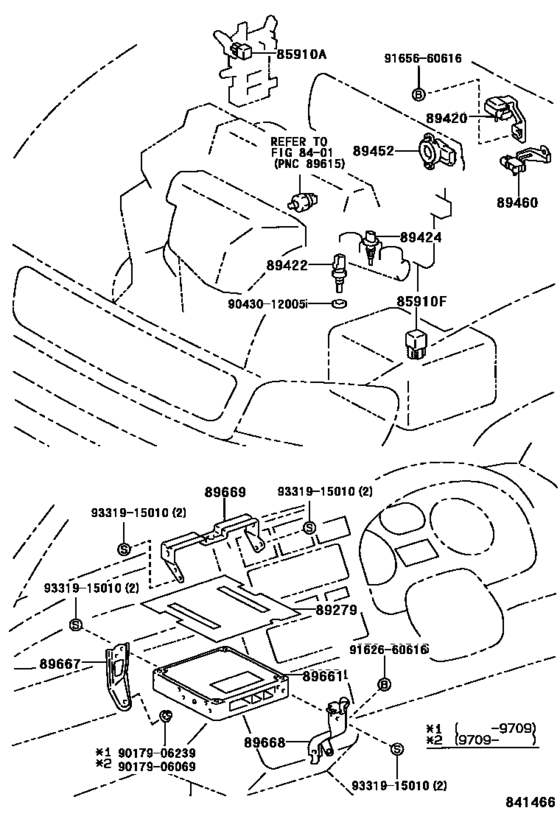

Electronic Fuel Injection System ([11.1995 - ] (9511- )) 45

#	OEM	Part name
85910	90987-02012	Relay, Ignition, No.1
85910	90987-02009	Relay Assy
89279	89279-42010	Cover, Engine Control Computer
89420	89420-0W050	Sensor Assy, Vacuum
89422	89422-35010	Sensor, Water Temperature (For E.f.i.)
89424	89424-12010	Sensor, Inlet Air Temperature (For E.f.i.)
89452	89452-20130	Sensor, Throttle Position (For E.f.i.)
89460	89460-42010	Sensor Assy, Vapor Pressure
89661	89661-42370	Computer, Engine Control
89661	89661-42371	Computer, Engine Control
89661	89661-42410	Computer, Engine Control
89661	89661-42412	Computer, Engine Control
89661	89661-42411	Computer, Engine Control
89661	89661-42490	Computer, Engine Control
89661	89661-42492	Computer, Engine Control
89661	89661-42491	Computer, Engine Control
89661	89661-42530	Computer, Engine Control
89661	89661-42533	Computer, Engine Control
89661	89661-42531	Computer, Engine Control
89661	89661-42532	Computer, Engine Control
89661	89661-42360	Computer, Engine Control
89661	89661-42361	Computer, Engine Control
89661	89661-42400	Computer, Engine Control
89661	89661-42402	Computer, Engine Control
89661	89661-42401	Computer, Engine Control
89661	89661-42480	Computer, Engine Control
89661	89661-42482	Computer, Engine Control
89661	89661-42481	Computer, Engine Control
89661	89661-42520	Computer, Engine Control
89661	89661-42523	Computer, Engine Control
89661	89661-42521	Computer, Engine Control
89661	89661-42522	Computer, Engine Control
89667	89667-42020	Bracket, Engine Control Computer
89668	89668-42010	Bracket, Engine Control Computer, No.2
89669	89669-42020	Bracket, Engine Control Computer, No.3
9017906069	90179-06069	Direct
9017906069	90179-06274	Nut
9017906239	90179-06239	New Genuine Part
9017906239	90179-06314	NUT
9043012005	90430-12005	Gasket(For Water Hole)
9162660616	91626-60616	New Genuine Part
9162660616	91621-J0612	BOLT W-WASHER
9165660616	91656-60616	BOLT
9165660616	91651-60616	BOLT
9331915010	93319-15010	SCREW

OEM	Part name	Category
89279-42010	Cover, Engine Control Computer	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89420-0W050	Sensor Assy, Vacuum	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89422-35010	Sensor, Water Temperature (For E.f.i.)	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89424-12010	Sensor, Inlet Air Temperature (For E.f.i.)	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89452-20130	Sensor, Throttle Position (For E.f.i.)	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89460-42010	Sensor Assy, Vapor Pressure	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89661-42360	Computer, Engine Control	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89661-42361	Computer, Engine Control	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89661-42370	Computer, Engine Control	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89661-42371	Computer, Engine Control	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89661-42400	Computer, Engine Control	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89661-42401	Computer, Engine Control	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89661-42402	Computer, Engine Control	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89661-42410	Computer, Engine Control	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89661-42411	Computer, Engine Control	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89661-42412	Computer, Engine Control	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89661-42480	Computer, Engine Control	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89661-42481	Computer, Engine Control	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89661-42482	Computer, Engine Control	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89661-42490	Computer, Engine Control	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89661-42491	Computer, Engine Control	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89661-42492	Computer, Engine Control	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89661-42520	Computer, Engine Control	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89661-42521	Computer, Engine Control	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89661-42522	Computer, Engine Control	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89661-42523	Computer, Engine Control	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89661-42530	Computer, Engine Control	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89661-42531	Computer, Engine Control	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89661-42532	Computer, Engine Control	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89661-42533	Computer, Engine Control	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89667-42020	Bracket, Engine Control Computer	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89668-42010	Bracket, Engine Control Computer, No.2	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
89669-42020	Bracket, Engine Control Computer, No.3	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
90179-06069	Direct	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
90179-06239	New Genuine Part	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
90179-06274	Nut	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
90179-06314	NUT	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
90430-12005	Gasket(For Water Hole)	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
90987-02009	Relay Assy	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
90987-02012	Relay, Ignition, No.1	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
91621-J0612	BOLT W-WASHER	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
91626-60616	New Genuine Part	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
91651-60616	BOLT	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
91656-60616	BOLT	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
93319-15010	SCREW	Electronic Fuel Injection System ([11.1995 - ] (9511- ))
