Search › Model › SXA15

SXA15

Toyota RAV4-VANGUARD · 1996 · 4,104 parts · 183 categories

4,104 items

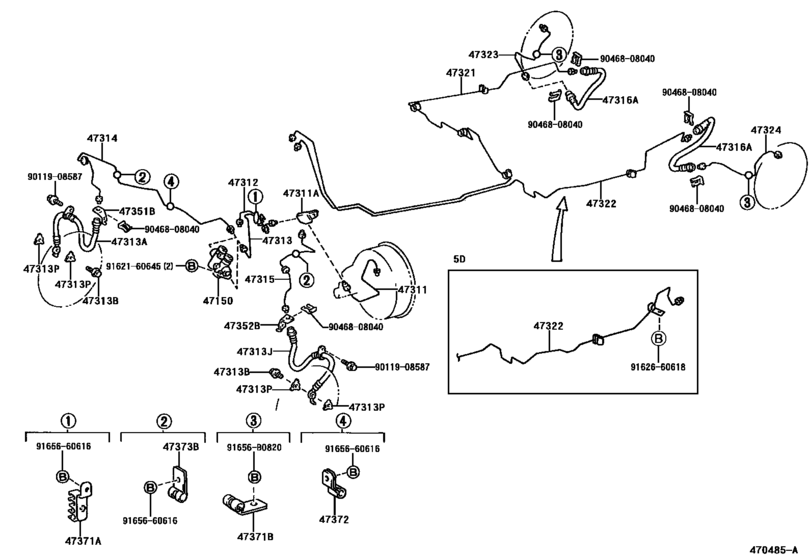

Brake Tube & Clamp ([11.1995 - ] (9511- )) 41

#	OEM	Part name
47150	47150-12230	Valve Assy, Proportioning
47150	47150-20280	Valve Assy, Proportioning
47150	47150-42010	Valve Assy, Proportioning
47311	47311-42040	Tube, Front Brake, No.1
47311	90413-10165	Way(For Front Brake Tube)
47312	47312-42060	Tube, Front Brake, No.2
47312	47312-42070	Tube, Front Brake, No.2
47313	47313-42060	Tube, Front Brake, No.3
47313	47313-42070	Tube, Front Brake, No.3
47313	90947-02781	Hose, Flexible, No.1(For Front)
47313	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47313	90947-02782	Hose, Flexible, No.2(For Front)
47313	47389-30010	Gasket(For Clutch Master Cylinder To Flexible Hose Tube)
47314	47314-42020	Tube, Front Brake, No.4
47314	47314-42040	Tube, Front Brake, No.4
47315	47315-42060	Tube, Front Brake, No.5
47315	47315-42070	Tube, Front Brake, No.5
47316	90947-02780	Hose, Flexible(For Rear Brake Tube)
47321	47321-42070	Tube, Rear Brake, No.1
47322	47322-42050	Tube, Rear Brake, No.2
47323	47323-42010	Tube, Rear Brake, No.3
47324	47324-42010	Tube, Rear Brake, No.4
47351	47351-42020	Bracket, Flexible Hose, No.1
47352	47352-42020	Bracket, Flexible Hose, No.2
47371	47371-20250	Clamp, Brake Tube, No.1
47371	47371-42070	Clamp, Brake Tube, No.1
47371	90461-06112	Clamp, Brake Tube, No.6
47372	47371-20070	Clamp, Brake Tube, No.4
47372	90461-06119	Clamp, Brake Tube, No.2
47373	47371-42060	Clamp, Brake Tube, No.3
47373	90461-06957	Clamp, Brake Tube, No.3
91656	91656-B0820	Bolt, Radiator Side Support Plate
91656	91651-B0820	Bolt, Radiator Side Support Plate
9011908587	90119-08587	New Genuine Part
9011908587	90129-08007	New Genuine Part
9046808040	90468-08040	CLIP
9162160645	91621-60645	New Genuine Part
9162660618	91626-60618	New Genuine Part
9162660618	91621-J0614	BOLT W-WASHER
9165660616	91656-60616	BOLT
9165660616	91651-60616	BOLT

OEM	Part name	Category
47150-12230	Valve Assy, Proportioning	Brake Tube & Clamp ([11.1995 - ] (9511- ))
47150-20280	Valve Assy, Proportioning	Brake Tube & Clamp ([11.1995 - ] (9511- ))
47150-42010	Valve Assy, Proportioning	Brake Tube & Clamp ([11.1995 - ] (9511- ))
47311-42040	Tube, Front Brake, No.1	Brake Tube & Clamp ([11.1995 - ] (9511- ))
47312-42060	Tube, Front Brake, No.2	Brake Tube & Clamp ([11.1995 - ] (9511- ))
47312-42070	Tube, Front Brake, No.2	Brake Tube & Clamp ([11.1995 - ] (9511- ))
47313-42060	Tube, Front Brake, No.3	Brake Tube & Clamp ([11.1995 - ] (9511- ))
47313-42070	Tube, Front Brake, No.3	Brake Tube & Clamp ([11.1995 - ] (9511- ))
47314-42020	Tube, Front Brake, No.4	Brake Tube & Clamp ([11.1995 - ] (9511- ))
47314-42040	Tube, Front Brake, No.4	Brake Tube & Clamp ([11.1995 - ] (9511- ))
47315-42060	Tube, Front Brake, No.5	Brake Tube & Clamp ([11.1995 - ] (9511- ))
47315-42070	Tube, Front Brake, No.5	Brake Tube & Clamp ([11.1995 - ] (9511- ))
47321-42070	Tube, Rear Brake, No.1	Brake Tube & Clamp ([11.1995 - ] (9511- ))
47322-42050	Tube, Rear Brake, No.2	Brake Tube & Clamp ([11.1995 - ] (9511- ))
47323-42010	Tube, Rear Brake, No.3	Brake Tube & Clamp ([11.1995 - ] (9511- ))
47324-42010	Tube, Rear Brake, No.4	Brake Tube & Clamp ([11.1995 - ] (9511- ))
47351-42020	Bracket, Flexible Hose, No.1	Brake Tube & Clamp ([11.1995 - ] (9511- ))
47352-42020	Bracket, Flexible Hose, No.2	Brake Tube & Clamp ([11.1995 - ] (9511- ))
47371-20070	Clamp, Brake Tube, No.4	Brake Tube & Clamp ([11.1995 - ] (9511- ))
47371-20250	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([11.1995 - ] (9511- ))
47371-42060	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([11.1995 - ] (9511- ))
47371-42070	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([11.1995 - ] (9511- ))
47389-30010	Gasket(For Clutch Master Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([11.1995 - ] (9511- ))
90119-08587	New Genuine Part	Brake Tube & Clamp ([11.1995 - ] (9511- ))
90129-08007	New Genuine Part	Brake Tube & Clamp ([11.1995 - ] (9511- ))
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([11.1995 - ] (9511- ))
90413-10165	Way(For Front Brake Tube)	Brake Tube & Clamp ([11.1995 - ] (9511- ))
90461-06112	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([11.1995 - ] (9511- ))
90461-06119	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([11.1995 - ] (9511- ))
90461-06957	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([11.1995 - ] (9511- ))
90468-08040	CLIP	Brake Tube & Clamp ([11.1995 - ] (9511- ))
90947-02780	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([11.1995 - ] (9511- ))
90947-02781	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([11.1995 - ] (9511- ))
90947-02782	Hose, Flexible, No.2(For Front)	Brake Tube & Clamp ([11.1995 - ] (9511- ))
91621-60645	New Genuine Part	Brake Tube & Clamp ([11.1995 - ] (9511- ))
91621-J0614	BOLT W-WASHER	Brake Tube & Clamp ([11.1995 - ] (9511- ))
91626-60618	New Genuine Part	Brake Tube & Clamp ([11.1995 - ] (9511- ))
91651-60616	BOLT	Brake Tube & Clamp ([11.1995 - ] (9511- ))
91651-B0820	Bolt, Radiator Side Support Plate	Brake Tube & Clamp ([11.1995 - ] (9511- ))
91656-60616	BOLT	Brake Tube & Clamp ([11.1995 - ] (9511- ))
91656-B0820	Bolt, Radiator Side Support Plate	Brake Tube & Clamp ([11.1995 - ] (9511- ))
