SXA10

Toyota RAV4-VANGUARD · 1994 · 4,183 parts · 189 categories

4,183 items

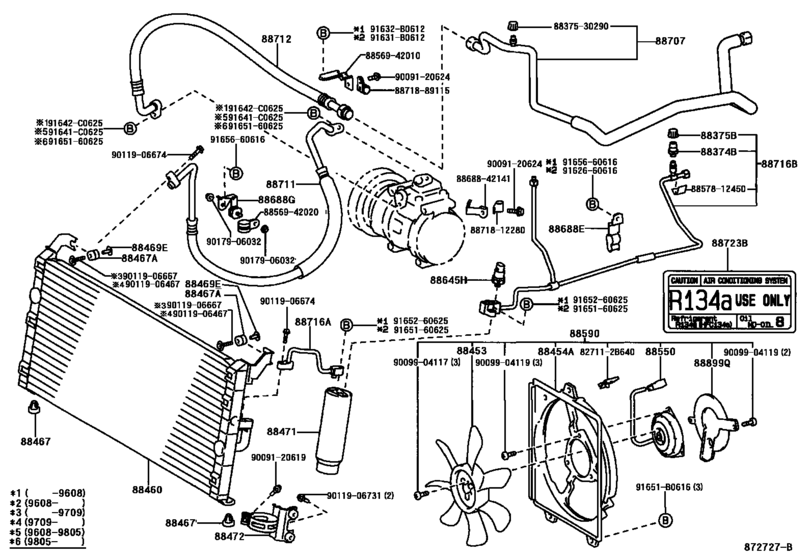

Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD) 59

#	OEM	Part name
88374	88374-30010	Valve, Service, No.1
88375	88375-30280	Cap, Service Valve (For Cooler Pipe)
88453	88453-42010	Fan, Cooling (For Condenser)
88454	88454-42021	Shroud, Fan
88460	88460-42021	Condenser Assy, Cooler
88467	88467-16090	Cushion, Cooler Condenser, No.1
88467	90099-32130	Grommet (For Power Take-Off Cable Bracket)
88469	88469-28010	Collar, Condenser Bracket, No.1
88471	88471-20050	Receiver & Dryer Assy, Cooler
88471	88471-34010	Receiver & Dryer Assy, Cooler
88472	88472-42010	Bracket, Receiver Tank, No.1
88550	16363-74190	Motor Assy, Blower (For Condenser)
88590	88590-42021	Blower Assy, W/shroud
88645	88645-20050	Switch, Pressure
88688	88688-42021	Bracket, Cooler Refrigerant Hose, No.1
88688	88688-42280	Bracket, Cooler Refrigerant Hose, No.1
88688	88688-42290	Bracket, Cooler Refrigerant Hose, No.1
88707	88717-42011	Pipe Sub-Assy, Suction
88707	88717-42080	Pipe Sub-Assy, Suction
88707	88717-42090	Pipe Sub-Assy, Suction
88711	88711-42010	Hose, Cooler Refrigerant Discharge, No.1
88712	88712-42022	Hose, Cooler Refrigerant Suction, No.1
88716	88716-42010	Pipe, Cooler Refrigerant Liquid, A
88716	88716-42082	Pipe, Cooler Refrigerant Liquid, B
88716	88716-42110	Pipe, Cooler Refrigerant Liquid, B
88716	88716-42130	Pipe, Cooler Refrigerant Liquid, B
88723	88723-20040	Label, Cooler Service Caution
88899	88899-42060	Plate, Cover
91631	91631-B0612	BRACKET
91631	91631-J0612	BRACKET
91632	91632-B0612	New Genuine Part
91641	91641-C0625	New Genuine Part
91642	91642-C0625	New Genuine Part
91651	91651-B0616	BOLT WWASHER
827112	82711-2B640	Wire, Fuse To Fuse(for Combustion Heater)
8837530290	88375-30290	Cap, Service Valve (For Cooler Pipe)
8856942010	88569-42010	Clamp (for Cooler Relay)
8856942020	88569-42020	Clamp (for Cooler Relay)
8857812450	88578-12450	Packing, Cooler Pipe, No.1
8868842141	88688-42141	Bracket, Cooler Diaphragm
8871812280	88718-12280	Clamp(For Cooler Refrigerant Pipe), No.1
8871889115	88718-89115	Pipe, Cooler Refrigerant Suction, No.2
9009120619	90091-20619	BOLT
9009120624	90091-20624	New Genuine Part
9009904117	90099-04117	Bolt, Radiator Side Support Plate
9009904119	90099-04119	BOLT WASHER HEAD
9011906467	90119-06467	BOLT WWASHER
9011906667	90119-06667	New Genuine Part
9011906674	90119-06674	New Genuine Part
9011906674	91651-G0645	New Genuine Part
9011906731	90119-06731	New Genuine Part
9017906032	90179-06032	Direct
9017906032	90179-06274	Nut
9162660616	91626-60616	New Genuine Part
9162660616	91621-J0612	BOLT W-WASHER
9165160625	91651-60625	New Genuine Part
9165260625	91652-60625	New Genuine Part
9165660616	91656-60616	BOLT
9165660616	91651-60616	BOLT

OEM	Part name	Category
16363-74190	Motor Assy, Blower (For Condenser)	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
82711-2B640	Wire, Fuse To Fuse(for Combustion Heater)	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88374-30010	Valve, Service, No.1	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88375-30280	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88375-30290	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88453-42010	Fan, Cooling (For Condenser)	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88454-42021	Shroud, Fan	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88460-42021	Condenser Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88467-16090	Cushion, Cooler Condenser, No.1	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88469-28010	Collar, Condenser Bracket, No.1	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88471-20050	Receiver & Dryer Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88471-34010	Receiver & Dryer Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88472-42010	Bracket, Receiver Tank, No.1	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88569-42010	Clamp (for Cooler Relay)	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88569-42020	Clamp (for Cooler Relay)	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88578-12450	Packing, Cooler Pipe, No.1	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88590-42021	Blower Assy, W/shroud	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88645-20050	Switch, Pressure	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88688-42021	Bracket, Cooler Refrigerant Hose, No.1	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88688-42141	Bracket, Cooler Diaphragm	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88688-42280	Bracket, Cooler Refrigerant Hose, No.1	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88688-42290	Bracket, Cooler Refrigerant Hose, No.1	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88711-42010	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88712-42022	Hose, Cooler Refrigerant Suction, No.1	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88716-42010	Pipe, Cooler Refrigerant Liquid, A	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88716-42082	Pipe, Cooler Refrigerant Liquid, B	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88716-42110	Pipe, Cooler Refrigerant Liquid, B	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88716-42130	Pipe, Cooler Refrigerant Liquid, B	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88717-42011	Pipe Sub-Assy, Suction	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88717-42080	Pipe Sub-Assy, Suction	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88717-42090	Pipe Sub-Assy, Suction	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88718-12280	Clamp(For Cooler Refrigerant Pipe), No.1	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88718-89115	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88723-20040	Label, Cooler Service Caution	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
88899-42060	Plate, Cover	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
90091-20619	BOLT	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
90091-20624	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
90099-04117	Bolt, Radiator Side Support Plate	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
90099-04119	BOLT WASHER HEAD	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
90099-32130	Grommet (For Power Take-Off Cable Bracket)	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
90119-06467	BOLT WWASHER	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
90119-06667	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
90119-06674	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
90119-06731	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
90179-06032	Direct	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
90179-06274	Nut	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
91621-J0612	BOLT W-WASHER	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
91626-60616	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
91631-B0612	BRACKET	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
91631-J0612	BRACKET	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
91632-B0612	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
91641-C0625	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
91642-C0625	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
91651-60616	BOLT	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
91651-60625	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
91651-B0616	BOLT WWASHER	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
91651-G0645	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
91652-60625	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
91656-60616	BOLT	Heating & Air Conditioning - Cooler Piping ([04.1994 - ] MAKER OPTION (9404- )RHD)
