Search › Model › SXA10

SXA10

Toyota RAV4-VANGUARD · 1994 · 4,183 parts · 189 categories

4,183 items

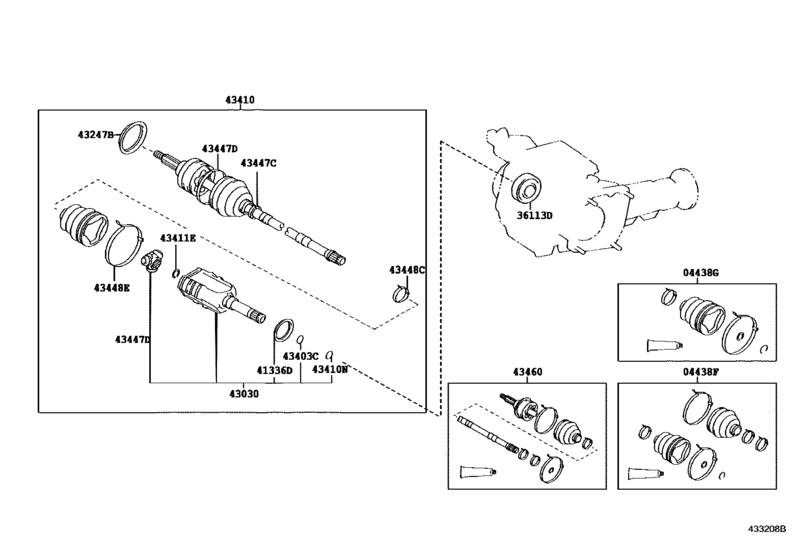

Front Drive Shaft ([04.1994 - ] RH (9404- )ATM) 37

#	OEM	Part name
4438	04438-12300	Boot Kit, Front Drive Shaft
4438	04438-12303	Boot Kit, Front Drive Shaft, In & Outboard
4438	04438-12301	Boot Kit, Front Drive Shaft, In & Outboard
4438	04438-12302	Boot Kit, Front Drive Shaft, In & Outboard, Rh
4438	04438-32230	Boot Kit, Front Drive Shaft Inboard Joint, Rh
4438	04438-32290	Boot Kit, Front Drive Shaft Inboard Joint
4438	04438-32231	Boot Kit, Front Drive Shaft Inboard Joint, Rh
36113	90310-50002	Seal, Oil, No.2 (For Transfer Rh Bearing Retainer)
36113	90311-50025	Seal, Oil, No.2 (For Transfer Rh Bearing Retainer)
41336	41336-20040	Cover, Dust(For Front Drive Shaft)
43030	43403-12050	Joint Assy, Front Drive Inboard, Rh
43247	43247-12010	Deflector, Rear Wheel Bearing Dust, No.1
43247	43247-33010	Deflector, Front Wheel Bearing Dust, No.2
43403	90301-26006	Ring, O(For Differential Side Gear Shaft)
43410	43410-42011	Shaft Assy, Front Drive, Rh
43410	43410-42013	Shaft Assy, Front Drive, Rh
43410	43410-42012	Shaft Assy, Front Drive, Rh
43410	43410-42021	Shaft Assy, Front Drive, Rh
43410	43410-42023	Shaft Assy, Front Drive, Rh
43410	43410-42022	Shaft Assy, Front Drive, Rh
43410	90521-26004	Ring, Hole Snap (For Front Differential Side Gear Shaft)
43411	90520-22005	Ring, Snap (For Rear Drive Shaft)
43447	42345-16030	Clamp, Rear Drive Shaft Boot
43447	42345-20090	Clamp (For Front Axle Outboard Joint Boot Rh)
43447	42345-20100	Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)
43447	42345-20110	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)
43447	42345-20120	Clamp, No.2 (For Rear Drive Shaft Outboard Joint Boot Rh)
43447	90949-01076	Clamp (For Rear Drive Shaft Outboard Joint Boot)
43447	42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big
43448	90949-01078	Clamp (For Rear Drive Shaft Outboard Joint Boot)
43460	43470-49016	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-49018	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-49017	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-49026	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-80280	Shaft Assy, Front Drive Outboard Joint
43460	43470-49027	Shaft Assy, Front Drive Outboard Joint, Rh
43460	43470-49028	Shaft Assy, Front Drive Outboard Joint, Rh

OEM	Part name	Category
04438-12300	Boot Kit, Front Drive Shaft	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
04438-12301	Boot Kit, Front Drive Shaft, In & Outboard	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
04438-12302	Boot Kit, Front Drive Shaft, In & Outboard, Rh	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
04438-12303	Boot Kit, Front Drive Shaft, In & Outboard	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
04438-32230	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
04438-32231	Boot Kit, Front Drive Shaft Inboard Joint, Rh	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
04438-32290	Boot Kit, Front Drive Shaft Inboard Joint	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
41336-20040	Cover, Dust(For Front Drive Shaft)	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
42345-12160	Clamp, No.2 (For Drive Shaft Inboard Joint Boot) - Big	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
42345-16030	Clamp, Rear Drive Shaft Boot	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
42345-20090	Clamp (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
42345-20100	Clamp (For Rear Drive Shaft Outboard Joint Boot Rh)	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
42345-20110	Clamp, No.2 (For Front Axle Outboard Joint Boot Rh)	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
42345-20120	Clamp, No.2 (For Rear Drive Shaft Outboard Joint Boot Rh)	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
43247-12010	Deflector, Rear Wheel Bearing Dust, No.1	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
43247-33010	Deflector, Front Wheel Bearing Dust, No.2	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
43403-12050	Joint Assy, Front Drive Inboard, Rh	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
43410-42011	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
43410-42012	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
43410-42013	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
43410-42021	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
43410-42022	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
43410-42023	Shaft Assy, Front Drive, Rh	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
43470-49016	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
43470-49017	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
43470-49018	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
43470-49026	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
43470-49027	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
43470-49028	Shaft Assy, Front Drive Outboard Joint, Rh	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
43470-80280	Shaft Assy, Front Drive Outboard Joint	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
90301-26006	Ring, O(For Differential Side Gear Shaft)	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
90310-50002	Seal, Oil, No.2 (For Transfer Rh Bearing Retainer)	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
90311-50025	Seal, Oil, No.2 (For Transfer Rh Bearing Retainer)	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
90520-22005	Ring, Snap (For Rear Drive Shaft)	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
90521-26004	Ring, Hole Snap (For Front Differential Side Gear Shaft)	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
90949-01076	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
90949-01078	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Front Drive Shaft ([04.1994 - ] RH (9404- )ATM)
