SX306

Suzuki CAPPUCCINO · 2,500 parts · 99 categories

2,500 items

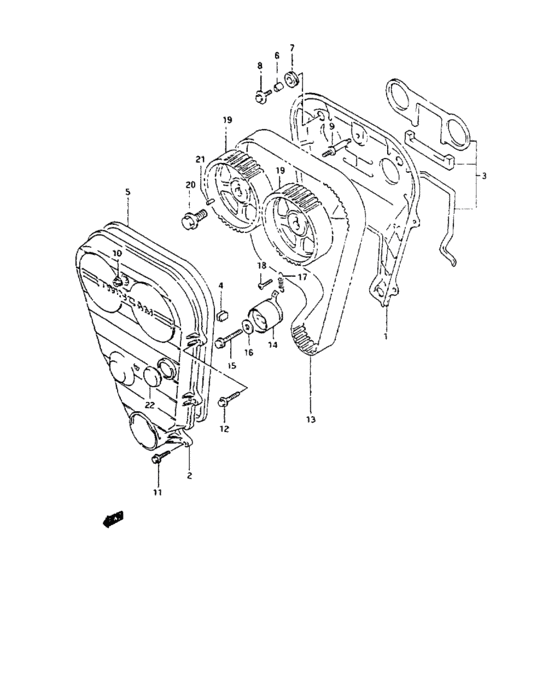

Timing belt (TIMING BELT) 37

#	OEM	Part name
1	11360-72B00-000	Cover, timing belt, inside
2	11390-72B02-000	COVER,TIMING BELT OUTSIDE
3	11480-53A00-000	SEAL SET,TIMING COVER INSIDE
4	11394-70B00-000	SEAL
5	11396-71C00-000	SEAL,TIMING BELT COVER OUT
6	09180-06106-000	SPACER(6.8X10X7)
7	09308-10004-000	GROMMET
8	09116-06113-000	ボルト,6X16
8	09116-06167-000	BOLT(6X20) - Bolt (6x20)
9	11488-69D01-000	STUD BOLT
10	08316-10063-000	Nut
10	08316-1006B-000	NUT
11	01550-06163-000	Bolt
11	01550-0616B-000	Bolt
11	01550-0616A-000	Bolt
12	01550-06203-000	Bolt
12	01550-0620B-000	Bolt - Bolt, inspection cap
13	12761-62D10-000	Belt, timing
13	11407-62D30-000	TIMING BELT
14	12810-81401-000	テンショナアッシ,タイミングベルト
14	12810-81402-000	TENSIONER ASSY,TIMING BELT
15	01550-08403-000	Bolt
15	01550-0840B-000	Bolt
15	01550-0840A-000	Bolt
16	08322-01083-000	WASHER
16	08322-0108B-000	WASHER
16	08322-0108A-000	WASHER
17	12821-70B02-000	SPRING,TENSIONER
18	02112-06203-000	Screw
18	02112-0620B-000	SCREW
18	02112-0620A-000	SCREW - Screw, holder
19	12741-61D01-000	PULLEY,CAMSHAFT TIMING BELT
20	01550-12253-000	Bolt
20	01550-1225A-000	Bolt
21	04221-05109-000	PIN
22	09250-30015-000	Cap
22	72999-67H00-000	CAP,OD:40

OEM	Part name	Category
01550-06163-000	Bolt	Timing belt (TIMING BELT)
01550-0616A-000	Bolt	Timing belt (TIMING BELT)
01550-0616B-000	Bolt	Timing belt (TIMING BELT)
01550-06203-000	Bolt	Timing belt (TIMING BELT)
01550-0620B-000	Bolt - Bolt, inspection cap	Timing belt (TIMING BELT)
01550-08403-000	Bolt	Timing belt (TIMING BELT)
01550-0840A-000	Bolt	Timing belt (TIMING BELT)
01550-0840B-000	Bolt	Timing belt (TIMING BELT)
01550-12253-000	Bolt	Timing belt (TIMING BELT)
01550-1225A-000	Bolt	Timing belt (TIMING BELT)
02112-06203-000	Screw	Timing belt (TIMING BELT)
02112-0620A-000	SCREW - Screw, holder	Timing belt (TIMING BELT)
02112-0620B-000	SCREW	Timing belt (TIMING BELT)
04221-05109-000	PIN	Timing belt (TIMING BELT)
08316-10063-000	Nut	Timing belt (TIMING BELT)
08316-1006B-000	NUT	Timing belt (TIMING BELT)
08322-01083-000	WASHER	Timing belt (TIMING BELT)
08322-0108A-000	WASHER	Timing belt (TIMING BELT)
08322-0108B-000	WASHER	Timing belt (TIMING BELT)
09116-06113-000	ボルト,6X16	Timing belt (TIMING BELT)
09116-06167-000	BOLT(6X20) - Bolt (6x20)	Timing belt (TIMING BELT)
09180-06106-000	SPACER(6.8X10X7)	Timing belt (TIMING BELT)
09250-30015-000	Cap	Timing belt (TIMING BELT)
09308-10004-000	GROMMET	Timing belt (TIMING BELT)
11360-72B00-000	Cover, timing belt, inside	Timing belt (TIMING BELT)
11390-72B02-000	COVER,TIMING BELT OUTSIDE	Timing belt (TIMING BELT)
11394-70B00-000	SEAL	Timing belt (TIMING BELT)
11396-71C00-000	SEAL,TIMING BELT COVER OUT	Timing belt (TIMING BELT)
11407-62D30-000	TIMING BELT	Timing belt (TIMING BELT)
11480-53A00-000	SEAL SET,TIMING COVER INSIDE	Timing belt (TIMING BELT)
11488-69D01-000	STUD BOLT	Timing belt (TIMING BELT)
12741-61D01-000	PULLEY,CAMSHAFT TIMING BELT	Timing belt (TIMING BELT)
12761-62D10-000	Belt, timing	Timing belt (TIMING BELT)
12810-81401-000	テンショナアッシ,タイミングベルト	Timing belt (TIMING BELT)
12810-81402-000	TENSIONER ASSY,TIMING BELT	Timing belt (TIMING BELT)
12821-70B02-000	SPRING,TENSIONER	Timing belt (TIMING BELT)
72999-67H00-000	CAP,OD:40	Timing belt (TIMING BELT)
