Search › Model › SX306
SX306

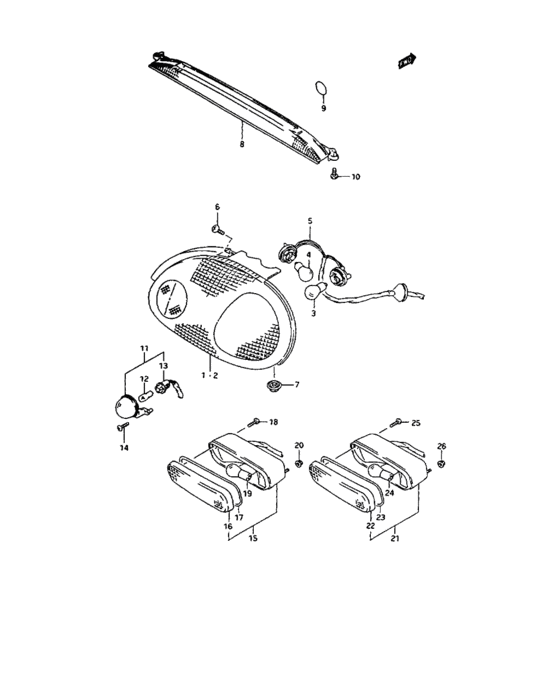

Rear lamp 32
| # | OEM | Part name |
|---|---|---|
| 1 | 35650-80F10-000 | LAMP UNIT,RR COMB,R |
| 2 | 35670-80F10-000 | Lamp unit, rear combination lh |
| 3 | 09471-12056-000 | Bulb (12v, 21w) |
| 3 | 09471-12045-000 | BULB(12V21W) |
| 4 | 09471-12057-000 | Bulb (12v, 21/5w) |
| 4 | 09471-12128-000 | BULB(12V21/5W,BF141-49642A) |
| 4 | 09471-12083-000 | BULB(12V21/5W) |
| 5 | 35658-80F00-000 | SOCKET,RR COMB LAMP |
| 6 | 09125-06057-000 | スクリュ |
| 6 | 02142-0616A-000 | SCREW |
| 7 | 35659-70B00-000 | GROMMET,RR COMB. LAMP |
| 8 | 35810-80F10-000 | CAP ASSY,HIGH MOUNT LAMP HOLE |
| 9 | 75551-55F00-000 | シール,140X190 |
| 9 | 84761-50X50-000 | SEAL,140X190 - Seal, rr defogger wire hole |
| 10 | 03541-04123-000 | Screw |
| 10 | 03541-0412B-000 | SCREW - Screw, plate |
| 10 | 03541-0412A-000 | SCREW - Screw, speedometer |
| 11 | 35910-60A20-000 | Lamp assy,license |
| 12 | 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) |
| 12 | 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) |
| 13 | 35918-60A20-000 | SOCKET,LICENSE LAMP |
| 15 | 36250-80F00-000 | LAMP ASSY,BACK UP |
| 16 | 36252-60B00-000 | LENS,BACKUP LAMP |
| 17 | 36253-60B00-000 | GASKET |
| 18 | 03511-04203-000 | Screw, headlamp & plate |
| 18 | 03511-0420B-000 | SCREW |
| 19 | 09471-12064-000 | Bulb (12v,23/8w) - Bulb (12v,21/5w) |
| 20 | 08316-10063-000 | Nut |
| 20 | 08316-1006B-000 | NUT |
| 21 | 36570-70F00-000 | Lamp assy, rear fog |
| 21 | 36570-70F01-000 | LAMP ASSY,RR FOG |
| 22 | 36572-60B00-000 | LENS,RR FOG LAMP |
| OEM | Part name | Category |
|---|---|---|
| 02142-0616A-000 | SCREW | Rear lamp |
| 03511-04203-000 | Screw, headlamp & plate | Rear lamp |
| 03511-0420B-000 | SCREW | Rear lamp |
| 03541-04123-000 | Screw | Rear lamp |
| 03541-0412A-000 | SCREW - Screw, speedometer | Rear lamp |
| 03541-0412B-000 | SCREW - Screw, plate | Rear lamp |
| 08316-10063-000 | Nut | Rear lamp |
| 08316-1006B-000 | NUT | Rear lamp |
| 09125-06057-000 | スクリュ | Rear lamp |
| 09471-12045-000 | BULB(12V21W) | Rear lamp |
| 09471-12056-000 | Bulb (12v, 21w) | Rear lamp |
| 09471-12057-000 | Bulb (12v, 21/5w) | Rear lamp |
| 09471-12064-000 | Bulb (12v,23/8w) - Bulb (12v,21/5w) | Rear lamp |
| 09471-12081-000 | Bulb (12v,5w) - Bulb, 12v,5w (stanley, wb-227e) | Rear lamp |
| 09471-12083-000 | BULB(12V21/5W) | Rear lamp |
| 09471-12128-000 | BULB(12V21/5W,BF141-49642A) | Rear lamp |
| 09471-12216-000 | BULB(12V5W) - Bulb (12v5w) | Rear lamp |
| 35650-80F10-000 | LAMP UNIT,RR COMB,R | Rear lamp |
| 35658-80F00-000 | SOCKET,RR COMB LAMP | Rear lamp |
| 35659-70B00-000 | GROMMET,RR COMB. LAMP | Rear lamp |
| 35670-80F10-000 | Lamp unit, rear combination lh | Rear lamp |
| 35810-80F10-000 | CAP ASSY,HIGH MOUNT LAMP HOLE | Rear lamp |
| 35910-60A20-000 | Lamp assy,license | Rear lamp |
| 35918-60A20-000 | SOCKET,LICENSE LAMP | Rear lamp |
| 36250-80F00-000 | LAMP ASSY,BACK UP | Rear lamp |
| 36252-60B00-000 | LENS,BACKUP LAMP | Rear lamp |
| 36253-60B00-000 | GASKET | Rear lamp |
| 36570-70F00-000 | Lamp assy, rear fog | Rear lamp |
| 36570-70F01-000 | LAMP ASSY,RR FOG | Rear lamp |
| 36572-60B00-000 | LENS,RR FOG LAMP | Rear lamp |
| 75551-55F00-000 | シール,140X190 | Rear lamp |
| 84761-50X50-000 | SEAL,140X190 - Seal, rr defogger wire hole | Rear lamp |
