Search › Model › SX306
SX306

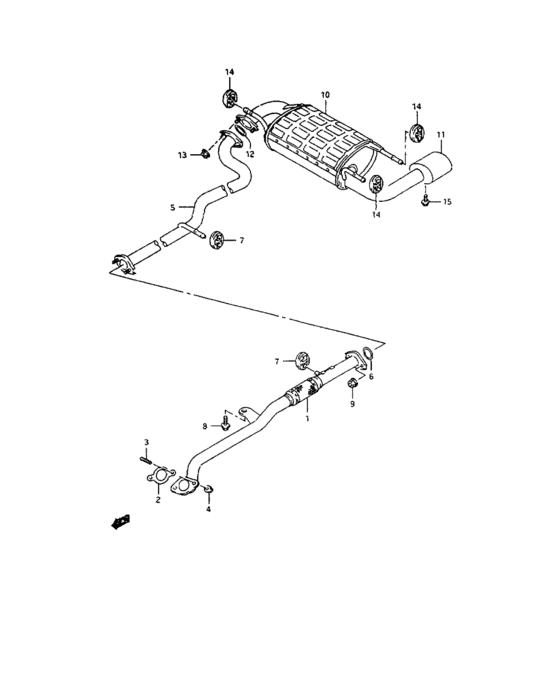

Muffler (MUFFLER) 19
| # | OEM | Part name |
|---|---|---|
| 1 | 14150-80F00-000 | PIPE,EXH CENTER NO.1 |
| 2 | 14182-67B00-000 | GASKET,EXH PIPE |
| 3 | 01411-10253-000 | New Genuine Part |
| 3 | 01411-1025A-000 | BOLT,STUD |
| 4 | 09159-10016-000 | NUT - Nut, clamp bracket |
| 5 | 14170-80F00-000 | PIPE,EXH CENTER NO.2 |
| 6 | 14182-60B00-000 | GASKET,EXH PIPE |
| 6 | 14182-60B01-000 | Gasket,exh Pipe |
| 7 | 14281-78010-000 | Mounting, muffler - Mounting, exh pipe |
| 7 | 14281-60G01-000 | MOUNTING,MUF |
| 8 | 01550-10203-000 | Bolt - Bolt, lower |
| 8 | 01550-1020A-000 | Bolt - Bolt, bal sprocket |
| 9 | 08316-10103-000 | Nut |
| 9 | 08316-1010B-000 | NUT |
| 10 | 14300-80F00-000 | MUFFLER |
| 11 | 14630-80F00-000 | PIPE,TAIL |
| 15 | 01550-06103-000 | Bolt, front |
| 15 | 01550-0610B-000 | Bolt |
| 15 | 01550-0610A-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01411-10253-000 | New Genuine Part | Muffler (MUFFLER) |
| 01411-1025A-000 | BOLT,STUD | Muffler (MUFFLER) |
| 01550-06103-000 | Bolt, front | Muffler (MUFFLER) |
| 01550-0610A-000 | Bolt | Muffler (MUFFLER) |
| 01550-0610B-000 | Bolt | Muffler (MUFFLER) |
| 01550-10203-000 | Bolt - Bolt, lower | Muffler (MUFFLER) |
| 01550-1020A-000 | Bolt - Bolt, bal sprocket | Muffler (MUFFLER) |
| 08316-10103-000 | Nut | Muffler (MUFFLER) |
| 08316-1010B-000 | NUT | Muffler (MUFFLER) |
| 09159-10016-000 | NUT - Nut, clamp bracket | Muffler (MUFFLER) |
| 14150-80F00-000 | PIPE,EXH CENTER NO.1 | Muffler (MUFFLER) |
| 14170-80F00-000 | PIPE,EXH CENTER NO.2 | Muffler (MUFFLER) |
| 14182-60B00-000 | GASKET,EXH PIPE | Muffler (MUFFLER) |
| 14182-60B01-000 | Gasket,exh Pipe | Muffler (MUFFLER) |
| 14182-67B00-000 | GASKET,EXH PIPE | Muffler (MUFFLER) |
| 14281-60G01-000 | MOUNTING,MUF | Muffler (MUFFLER) |
| 14281-78010-000 | Mounting, muffler - Mounting, exh pipe | Muffler (MUFFLER) |
| 14300-80F00-000 | MUFFLER | Muffler (MUFFLER) |
| 14630-80F00-000 | PIPE,TAIL | Muffler (MUFFLER) |
