SX100

Toyota CHASER · 1997 · 4,264 parts · 190 categories
SX100 ×

← Back to categories

4,264 items

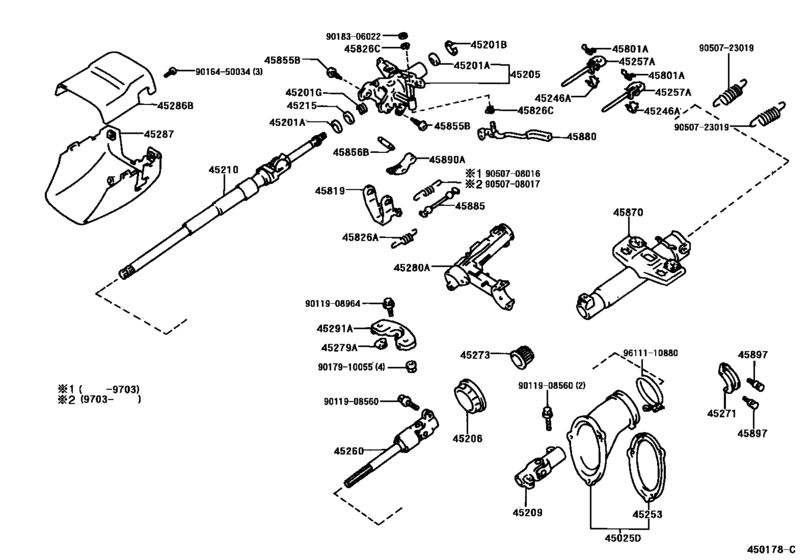

Steering Column & Shaft ([09.1996 - ] ｱﾘ(ﾁﾙﾄｽﾃｱﾘﾝｸﾞ) (9609- )GX10#,JZX105,LX100,SX100) 56
#OEMPart name
45025 45025-22120 Cover Sub-Assy, Steering Column Hole, No.1
45201 90363-18005 Bearing(For Steering Main Shaft)
45201 90520-17042 Ring, Shaft Snap(For Steering Main Shaft)
45201 90501-40017 Spring, Compression(For Steering Main Shaft)
45205 45205-33120 Tube Sub-Assy, Steering Column
45206 45026-22010 Yoke Sub-Assy, Steering Sliding W/shaft
45209 45209-32020 Yoke Sub-Assy, Steering Sliding
45209 45209-16010 Yoke Sub-Assy, Steering Sliding
45210 45210-22210 Shaft Assy, Steering Main
45210 45210-22230 Shaft Assy, Steering Main
45210 45210-22211 Shaft Assy, Steering Main
45215 45215-12010 Collar, Main Shaft Bearing Thrust
45246 45246-12110 Guide, Steering Energy Absorbing Plate
45246 45246-28040 Guide, Steering Energy Absorbing Plate
45253 45253-22250 Cover, Steering Column Hole
45257 45257-12070 Plate, Steering Column Energy Absorbing
45257 45257-28010 Plate, Steering Column Energy Absorbing
45260 45260-22300 Shaft Assy, Steering Intermediate, No.2
45260 45260-22301 Shaft Assy, Steering Intermediate, No.2
45271 45271-12060 Clamp, Steering Column, Upper
45273 45273-33030 Bush, Steering Main Shaft
45279 45279-33030 Attachment, Steering Column Tube, Lwr
45280 45280-22530 Bracket Assy, Steering Column, Upper
45286 45286-22500-E0 Cover, Steering Column, Upr
45286 45286-22500-C0 Cover, Steering Column, Upr
45286 45286-22500-G0 Cover, Steering Column, Upr
45287 45287-22450-E0 Cover, Steering Column, Lwr
45287 45287-22450-C0 Cover, Steering Column, Lwr
45287 45287-22450-G0 Cover, Steering Column, Lwr
45291 45291-33020 Support, Steering Column Tube
45801 45875-12010 Support Sub-Assy, Steering Post
45819 45819-33010 Retainer, Tilt Lever
45826 90905-07010 Spring, Tension(For Steering Tilt Lever)
45826 90389-08120 Bush(For Steering Tilt Lever)
45855 45855-26010 Bolt, Tilt Steering, No.1
45856 45856-26010 Shaft, T1Lt Steering, No.2
45856 45856-26020 Shaft, T1Lt Steering, No.2
45856 45856-26030 Shaft, T1Lt Steering, No.2
45870 45870-22330 Tube Assy, Steering Column
45870 45870-22380 Tube Assy, Steering Column
45880 45880-22030 Lever Assy, Steering Tilt
45885 45885-35010 Link, Tilt Lever
45890 45890-26010 Lock Assy, Steering
45890 45890-26011 Pawl Assy, Tilt Steering
45897 45897-12020 Bolt, Steering Lock Set
9011908560 90119-08560 Bolt, Hexagon
9011908560 90080-11555 Bolt w-washer
9011908964 90119-08964 New Genuine Part
9016450034 90164-50034 Direct
9016450034 93568-55014 Screw
9017910055 90179-10055 NUT
9018306022 90183-06022 New Genuine Part
9050708016 90507-08016 New Genuine Part
9050708017 90507-08017 Spring, Tension(For Tilt Steering Pawl Assy)
9050723019 90507-23019 New Genuine Part
9611110880 96111-10880 Clamp(For Air Intake Rubber Seal)
