SX100

Toyota CHASER · 1997 · 4,264 parts · 190 categories

4,264 items

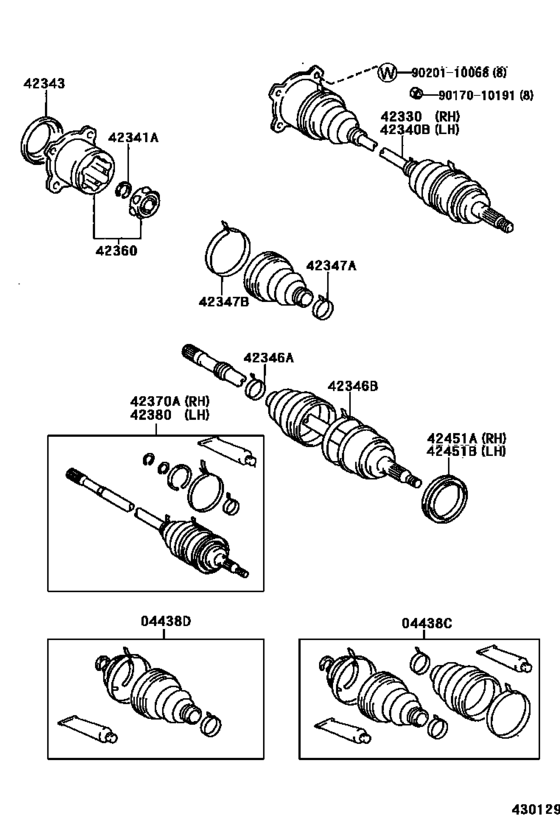

Rear Axle Shaft & Hub ([09.1996 - ] (9609- )GX10#,LX100,SX100) 22

#	OEM	Part name
4438	04437-22120	Boot Kit, Rear Drive Shaft
4438	04437-48031	Boot Kit, Rear Drive Shaft, Rh
4438	04429-22030	Boot Kit, Rear Drive Shaft
4438	04437-22090	Boot Kit, Rear Drive Shaft
4438	04437-48020	Boot Kit, Rear Drive Shaft Inboard Joint, Rh
4438	04439-22030	Boot Kit, Rear Drive Shaft Inboard Joint
4438	04439-22031	Boot Kit, Rear Drive Shaft Inboard Joint, Rh
42330	42330-22070	Shaft Assy, Rear Drive, Rh
42340	42340-22150	Shaft Assy, Rear Drive, Lh
42341	90520-23024	Ring, Snap (For Rear Drive Shaft)
42343	42343-14010	Cover, Outboard Joint End
42346	42345-14010	Clamp, Rear Drive Shaft Boot
42346	90949-01473	Clamp (For Rear Drive Shaft Outboard Joint Boot)
42347	42345-14020	Clamp (For Rear Drive Shaft Outboard Joint Boot)
42360	42360-22040	Joint Assy, Rear Drive Shaft Inboard
42370	42370-29195	Shaft Assy, Rear Drive Outboard Joint, Rh
42370	42370-29665	Shaft Assy, Rear Drive Outboard Joint, Rh
42380	42380-29095	Shaft Assy, Rear Drive Outboard Joint, Lh
42380	42380-29215	Shaft Assy, Rear Drive Outboard Joint, Lh
42451	42453-50010	Deflector, Rear Wheel Bearing Dust, No.1 Rh
9017010191	90170-10191	Nut(For Rear Drive Shaft)
9020110068	90201-10068	New Genuine Part

OEM	Part name	Category
04429-22030	Boot Kit, Rear Drive Shaft	Rear Axle Shaft & Hub ([09.1996 - ] (9609- )GX10#,LX100,SX100)
04437-22090	Boot Kit, Rear Drive Shaft	Rear Axle Shaft & Hub ([09.1996 - ] (9609- )GX10#,LX100,SX100)
04437-22120	Boot Kit, Rear Drive Shaft	Rear Axle Shaft & Hub ([09.1996 - ] (9609- )GX10#,LX100,SX100)
04437-48020	Boot Kit, Rear Drive Shaft Inboard Joint, Rh	Rear Axle Shaft & Hub ([09.1996 - ] (9609- )GX10#,LX100,SX100)
04437-48031	Boot Kit, Rear Drive Shaft, Rh	Rear Axle Shaft & Hub ([09.1996 - ] (9609- )GX10#,LX100,SX100)
04439-22030	Boot Kit, Rear Drive Shaft Inboard Joint	Rear Axle Shaft & Hub ([09.1996 - ] (9609- )GX10#,LX100,SX100)
04439-22031	Boot Kit, Rear Drive Shaft Inboard Joint, Rh	Rear Axle Shaft & Hub ([09.1996 - ] (9609- )GX10#,LX100,SX100)
42330-22070	Shaft Assy, Rear Drive, Rh	Rear Axle Shaft & Hub ([09.1996 - ] (9609- )GX10#,LX100,SX100)
42340-22150	Shaft Assy, Rear Drive, Lh	Rear Axle Shaft & Hub ([09.1996 - ] (9609- )GX10#,LX100,SX100)
42343-14010	Cover, Outboard Joint End	Rear Axle Shaft & Hub ([09.1996 - ] (9609- )GX10#,LX100,SX100)
42345-14010	Clamp, Rear Drive Shaft Boot	Rear Axle Shaft & Hub ([09.1996 - ] (9609- )GX10#,LX100,SX100)
42345-14020	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Rear Axle Shaft & Hub ([09.1996 - ] (9609- )GX10#,LX100,SX100)
42360-22040	Joint Assy, Rear Drive Shaft Inboard	Rear Axle Shaft & Hub ([09.1996 - ] (9609- )GX10#,LX100,SX100)
42370-29195	Shaft Assy, Rear Drive Outboard Joint, Rh	Rear Axle Shaft & Hub ([09.1996 - ] (9609- )GX10#,LX100,SX100)
42370-29665	Shaft Assy, Rear Drive Outboard Joint, Rh	Rear Axle Shaft & Hub ([09.1996 - ] (9609- )GX10#,LX100,SX100)
42380-29095	Shaft Assy, Rear Drive Outboard Joint, Lh	Rear Axle Shaft & Hub ([09.1996 - ] (9609- )GX10#,LX100,SX100)
42380-29215	Shaft Assy, Rear Drive Outboard Joint, Lh	Rear Axle Shaft & Hub ([09.1996 - ] (9609- )GX10#,LX100,SX100)
42453-50010	Deflector, Rear Wheel Bearing Dust, No.1 Rh	Rear Axle Shaft & Hub ([09.1996 - ] (9609- )GX10#,LX100,SX100)
90170-10191	Nut(For Rear Drive Shaft)	Rear Axle Shaft & Hub ([09.1996 - ] (9609- )GX10#,LX100,SX100)
90201-10068	New Genuine Part	Rear Axle Shaft & Hub ([09.1996 - ] (9609- )GX10#,LX100,SX100)
90520-23024	Ring, Snap (For Rear Drive Shaft)	Rear Axle Shaft & Hub ([09.1996 - ] (9609- )GX10#,LX100,SX100)
90949-01473	Clamp (For Rear Drive Shaft Outboard Joint Boot)	Rear Axle Shaft & Hub ([09.1996 - ] (9609- )GX10#,LX100,SX100)
