Search › Model › SX100

SX100

Toyota CHASER · 1997 · 4,264 parts · 190 categories
SX100 ×

← Back to categories

4,264 items

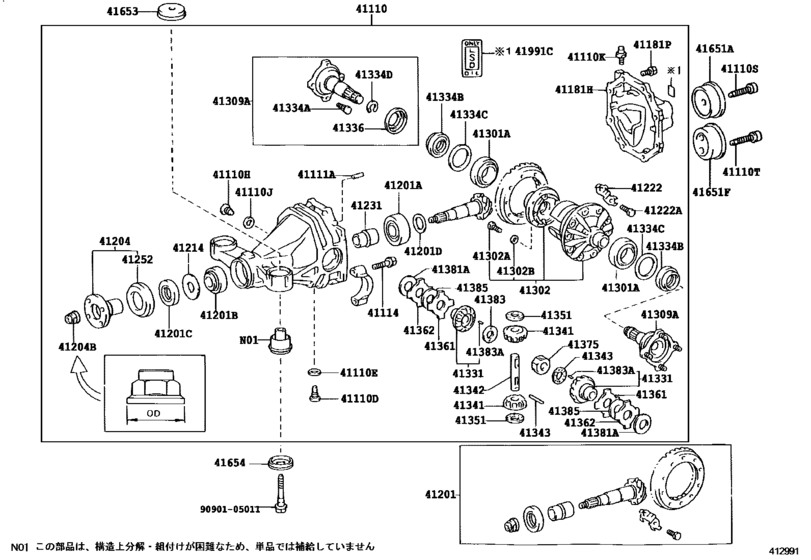

Rear Axle Housing & Differential ([09.1996 - ] ﾘﾐﾃﾂﾄﾞ ｽﾘﾂﾌﾟ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ (9609- )GX10#,JZX100,105,LX100,SX100..4FC,5F. .AVT,AVTG,RAF,TOU,TOUS,XL) 155
#OEMPart name
41110 41110-22670 Carrier Assy, Differential, Rear
41110 41110-22690 Carrier Assy, Differential, Rear
41110 41110-22880 Carrier Assy, Differential, Rear
41110 12157-10010 Gasket (For Drain Plug)
41110 41653-30060 Stopper, Rear Differential Mount, Upper
41110 41654-30040 Stopper, Rear Differential Mount, Lower
41110 90109-12081 Bolt, No.4 (For Rear Differential Carrier Set)
41110 41110-22882 Carrier Assy, Differential, Rear
41110 90341-18032 Plug Sub-Assy, Drain(Mtm) - No magnet
41110 41110-2A010 Carrier Assy, Differential, Rear
41110 41110-2A012 Carrier Assy, Differential, Rear
41110 90341-18035 Plug, No.1 (With Magnet)
41110 90930-03031 Plug, Breather(For Parking Cover)
41110 90110-14004 Bolt, No.2 (For Rear Differential Carrier Set)
41110 90110-14006 Bolt, No.2 (For Rear Differential Carrier Set)
41111 90250-08120 Pin, Straight, No.1
41114 90105-12164 Bolt (For Rear Differential Carrier)
41181 41181-22060 Cover, Rear Differential Carrier
41181 41108-53010 Cover, Rear Differential Carrier
41181 90105-10117 Bolt (For Front Differential Carrier Cover Setting)
41181 90105-10417 Bolt (For Front Differential Carrier Cover Setting)
41201 41201-80003 Final Gear Kit, Differential, Rear
41201 41201-80109 Final Gear Kit, Differential, Rear
41201 90366-35023 Bearing (For Rear Drive Pinion Rear)
41201 90366-35104 Bearing (For Rear Drive Pinion Rear)
41201 90366-35117 Bearing (For Rear Drive Pinion Rear)
41201 90366-30022 Bearing (For Rear Drive Pinion Front)
41201 90366-30078 Bearing (For Rear Drive Pinion Front)
41201 90311-38010 Seal, Oil (For Rear Differential Carrier)
41201 90311-38070 Seal, Oil (For Rear Differential Carrier)
41201 90201-35497 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35498 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35499 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35500 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35501 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35502 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35503 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35504 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35505 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35506 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35507 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35508 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35509 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35510 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35511 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35512 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35513 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35514 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35515 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35516 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35517 Washer, Plate (For Rear Differential Drive Pinion)
41201 90201-35518 Washer, Plate (For Rear Differential Drive Pinion)
41204 41204-20030 Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41204 41204-35050 Flange Sub-Assy, Rear Drive Pinion Companion, Rear
41204 90179-18019 Nut (For Rear Drive Pinion)
41204 90179-18020 Nut (For Transfer Gear)
41214 41214-30021 Slinger, Rear Differential Drive Pinion Oil
41214 41214-35020 Slinger, Rear Differential Drive Pinion Oil
41222 41222-35030 Plate, Rear Differential Ring Gear Set Bolt Lock
41222 90101-11353 Bolt (For Rear Differential Ring Gear Set)
41231 41231-22010 Spacer, Rear Differential Drive Pinion Bearing
41252 41252-30010 Deflector, Dust (For Rear Differential)
41301 90368-50006 Bearing(For Rear Differential Case)
41302 41302-30030 Case Sub-Assy, Rear Differential
41302 90101-10195 Bolt(For Rear Differential Case)
41302 90206-10045 Washer, Spring(For Rear Differential Case)
41309 41309-14040 Shaft Sub-Assy, Rear Differential Side Gear
41331 41305-30010 Gear, Rear Differential Side
41331 41331-14040 Gear, Rear Differential Side
41331 41331-14041 Gear, Rear Differential Side
41334 90114-10028 Bolt (For Rear Differential Side Gear Shaft)
41334 90311-38011 Seal, Oil (For Rear Differential Side Gear Shaft)
41334 90311-38071 Seal, Oil (For Rear Differential Side Gear Shaft)
41334 90201-65007 Washer, Plate (For Front Differential Case)
41334 90201-65009 Washer, Plate (For Front Differential Case)
41334 90201-65011 Washer, Plate (For Front Differential Case)
41334 90201-65013 Washer, Plate (For Front Differential Case)
41334 90201-65015 Washer, Plate (For Front Differential Case)
41334 90201-65017 Washer, Plate (For Front Differential Case)
41334 90201-65019 Washer, Plate (For Front Differential Case)
41334 90201-65021 Washer, Plate (For Front Differential Case)
41334 90201-65023 Washer, Plate (For Front Differential Case)
41334 90201-65025 Washer, Plate (For Front Differential Case)
41334 90201-65027 Washer, Plate (For Front Differential Case)
41334 90201-65029 Washer, Plate (For Front Differential Case)
41334 90564-65001 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-65002 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-65003 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-65004 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-65005 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-65006 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-65007 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-65008 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-65009 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-65010 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-65011 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-65012 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-65013 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-65014 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-65015 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-65016 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-65017 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-65018 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-65019 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-65020 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-65021 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90564-65022 Washer, Plate (For Rear Differential Side Gear Shaft)
41334 90521-29002 Ring, Hole Snap (For Differential Side Gear Shaft)
41336 41336-22010 Cover, Dust(For Rear Differential Side Gear Shaft)
41341 41341-30020 Pinion, Rear Differential
41341 41341-30050 Pinion, Rear Differential
41342 41342-22020 Shaft, Rear Differential Pinion
41342 41342-22021 Shaft, Rear Differential Pinion
41343 90250-06058 Pin, Straight(For Timing Gear Case)
41351 41351-30060 Washer, Rear Differential Pinion Thrust
41361 41361-30040 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-30050 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-30060 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-30070 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-30080 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-30090 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-30100 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-30110 Washer, Rear Differential Side Gear Thrust, No.1
41361 41361-30111 Washer, Rear Differential Side Gear Thrust, No.1
41362 41361-30120 Washer, Rear Differential Side Gear Thrust, No.2
41362 41361-30121 Washer, Rear Differential Side Gear Thrust, No.2
41362 41361-30130 Washer, Rear Differential Side Gear Thrust, No.2
41362 41361-30131 Washer, Rear Differential Side Gear Thrust, No.2
41362 41361-30140 Washer, Rear Differential Side Gear Thrust, No.2
41362 41361-30141 Washer, Rear Differential Side Gear Thrust, No.2
41362 41361-30150 Washer, Rear Differential Side Gear Thrust, No.2
41362 41361-30151 Washer, Rear Differential Side Gear Thrust, No.2
41362 41361-30160 Washer, Rear Differential Side Gear Thrust, No.2
41362 41361-30161 Washer, Rear Differential Side Gear Thrust, No.2
41362 41361-30170 Washer, Rear Differential Side Gear Thrust, No.2
41362 41361-30171 Washer, Rear Differential Side Gear Thrust, No.2
41362 41361-30180 Washer, Rear Differential Side Gear Thrust, No.2
41362 41361-30181 Washer, Rear Differential Side Gear Thrust, No.2
41362 41361-30190 Washer, Rear Differential Side Gear Thrust, No.2
41362 41361-30191 Washer, Rear Differential Side Gear Thrust, No.2
41362 41361-30200 Washer, Rear Differential Side Gear Thrust, No.2
41362 41361-30201 Washer, Rear Differential Side Gear Thrust, No.2
41375 41375-30020 Holder, Rear Differential Pinion Shaft
41381 90208-39002 Washer, Conical Spring
41383 41383-30010 Washer, Clutch Member Thrust
41383 41383-30011 Washer, Clutch Member Thrust
41383 90250-05202 Pin, Straight (For Output Shaft)
41383 90250-05218 Pin (For Clutch Member Thrust Washer Stop)
41383 90250-06085 Pin, Straight (For Differential Pinion Shaft)
41385 41385-28020 Washer, Rear Differential Side Gear Thrust, No.2
41651 41651-22060 Cushion, Rear Differential Moumt, No.3
41653 41653-22010 Stopper, Rear Differential Mount, Upper
41654 41654-22010 Stopper, Rear Differential Mount, Lower
41991 41991-22010 Caution Plate, Rear Differential (LSD)
9090105011 90901-05011 Bolt, No.1 (For Rear Differential Carrier Set)
