SX100

Toyota CHASER · 1997 · 4,264 parts · 190 categories

4,264 items

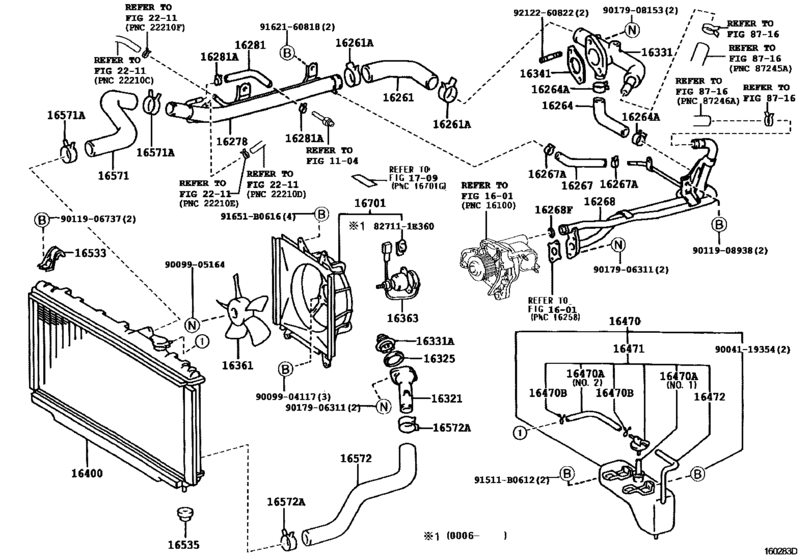

Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE) 60

#	OEM	Part name
0	82711-1E360	Clamp, Wiring Harness
16261	16261-74120	Hose, Water By-Pass
16261	90467-34004	Clamp Or Clip, Hose(For Water By-Pass Hose)
16264	16264-74120	Hose, Water By-Pass, No.2
16264	90467-22003	Clip(For Ventilation Hose No.2)
16264	90467-21010	Clip(For Ventilation Hose No.2)
16267	16267-74090	Hose, Water By-Pass, No.3
16267	90467-13050	Clamp Or Clip, Hose(For Water By-Pass Hose)
16267	96135-51300	Clamp, Hose
16268	16268-74210	Pipe, Water By-Pass, No.1
16268	96761-24017	Ring, O(For Water By-Pass Pipe)
16278	16278-74040	Pipe, Water By-Pass, No.2
16281	16281-74030	Hose, Water By-Pass, No.4
16321	16321-74050	Inlet, Water
16325	16325-63011	Gasket, Water Inlet Housing, No.1
16331	16304-74240	Outlet, Water
16331	90916-03090	Thermostat
16341	16341-74020	Gasket, Water Outlet
16361	16361-11010	Fan
16363	16363-15120	Motor, Cooling Fan
16400	16400-7A370	Radiator Assy
16400	23322-54010	Plug,air(For Oil Cooler Drain Cock)
16400	16492-21050	Ring, O(For Oil Cooler Drain Cock)
16400	96711-19007	Packing(For Radiator Drain Cock)
16401	16401-72090	Cap Sub-Assy, Radiator
16401	16401-20353	Cap Sub-Assy, Radiator
16401	16401-36030	Cap Sub-Assy, Radiator
16403	16403-7A370	Core Sub-Assy, Radiator
16406	16406-74520	Support(For Oil Cooler)
16407	16407-7A130	Cock Sub-Assy, Radiator Drain
16442	16442-70410	Ring, O(For Radiator Upper Tank)
16462	16462-54790	Ring, O(For Radiator Upper Tank)
16470	16470-74210	Tank Assy, Radiator Reserve
16470	16479-74210	Hose Or Pipe(For Radiator Reserve Tank)
16470	16567-74010	Hose Or Pipe(For Radiator Reserve Tank)
16470	90467-11085	Clamp Or Clip(For Radiator Breather Hose)
16471	16405-74200	Cap Sub-Assy, Reserve Tank
16472	16478-74210	Hose, Breather
16491	16491-7A010	Cooler, Oil(For Atm)
16491	16492-62060	Ring, O(For Atm Oil Cooler)
16491	16493-74520	Washer, Plate(For Atm Oil Cooler)
16495	16495-50030	Nut, Flare(For Atm Oil Cooler)
16533	16505-46060	Support, Radiator, Upper
16535	90480-40010	Support, Radiator, Lower
16571	16571-74390	Hose, Radiator, Inlet
16572	16572-74200	Hose, Radiator, Outlet
16701	16711-74470	Shroud Sub-Assy, Fan
91511	91511-B0612	BOLT FLANGE
91651	91651-B0616	BOLT WWASHER
9004119354	90041-19354	BOLT
9009904117	90099-04117	Bolt, Radiator Side Support Plate
9009905164	90099-05164	Nut
9011906737	90119-06737	BOLT WWASHER
9011908938	90119-08938	New Genuine Part
9011908938	90119-08B27	New Genuine Part
9017906311	90179-06311	New Genuine Part
9017908153	90179-08153	NUT
9162160818	91621-60818	Bolt(For Automatic Transmission Case Protector)
9162160818	91651-B0820	Bolt, Radiator Side Support Plate
9212260822	92122-60822	Stud

OEM	Part name	Category
16261-74120	Hose, Water By-Pass	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16264-74120	Hose, Water By-Pass, No.2	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16267-74090	Hose, Water By-Pass, No.3	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16268-74210	Pipe, Water By-Pass, No.1	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16278-74040	Pipe, Water By-Pass, No.2	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16281-74030	Hose, Water By-Pass, No.4	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16304-74240	Outlet, Water	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16321-74050	Inlet, Water	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16325-63011	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16341-74020	Gasket, Water Outlet	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16361-11010	Fan	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16363-15120	Motor, Cooling Fan	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16400-7A370	Radiator Assy	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16401-20353	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16401-36030	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16401-72090	Cap Sub-Assy, Radiator	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16403-7A370	Core Sub-Assy, Radiator	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16405-74200	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16406-74520	Support(For Oil Cooler)	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16407-7A130	Cock Sub-Assy, Radiator Drain	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16442-70410	Ring, O(For Radiator Upper Tank)	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16462-54790	Ring, O(For Radiator Upper Tank)	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16470-74210	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16478-74210	Hose, Breather	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16479-74210	Hose Or Pipe(For Radiator Reserve Tank)	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16491-7A010	Cooler, Oil(For Atm)	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16492-21050	Ring, O(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16492-62060	Ring, O(For Atm Oil Cooler)	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16493-74520	Washer, Plate(For Atm Oil Cooler)	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16495-50030	Nut, Flare(For Atm Oil Cooler)	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16505-46060	Support, Radiator, Upper	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16567-74010	Hose Or Pipe(For Radiator Reserve Tank)	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16571-74390	Hose, Radiator, Inlet	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16572-74200	Hose, Radiator, Outlet	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
16711-74470	Shroud Sub-Assy, Fan	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
23322-54010	Plug,air(For Oil Cooler Drain Cock)	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
82711-1E360	Clamp, Wiring Harness	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
90041-19354	BOLT	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
90099-04117	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
90099-05164	Nut	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
90119-06737	BOLT WWASHER	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
90119-08938	New Genuine Part	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
90119-08B27	New Genuine Part	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
90179-06311	New Genuine Part	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
90179-08153	NUT	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
90467-11085	Clamp Or Clip(For Radiator Breather Hose)	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
90467-13050	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
90467-21010	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
90467-22003	Clip(For Ventilation Hose No.2)	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
90467-34004	Clamp Or Clip, Hose(For Water By-Pass Hose)	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
90480-40010	Support, Radiator, Lower	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
90916-03090	Thermostat	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
91511-B0612	BOLT FLANGE	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
91621-60818	Bolt(For Automatic Transmission Case Protector)	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
91651-B0616	BOLT WWASHER	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
91651-B0820	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
92122-60822	Stud	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
96135-51300	Clamp, Hose	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
96711-19007	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
96761-24017	Ring, O(For Water By-Pass Pipe)	Radiator & Water Outlet ([04.1997 - ] (9704- )4SFE)
