Search › Model › SX100

SX100

Toyota CHASER · 1997 · 4,264 parts · 190 categories

4,264 items

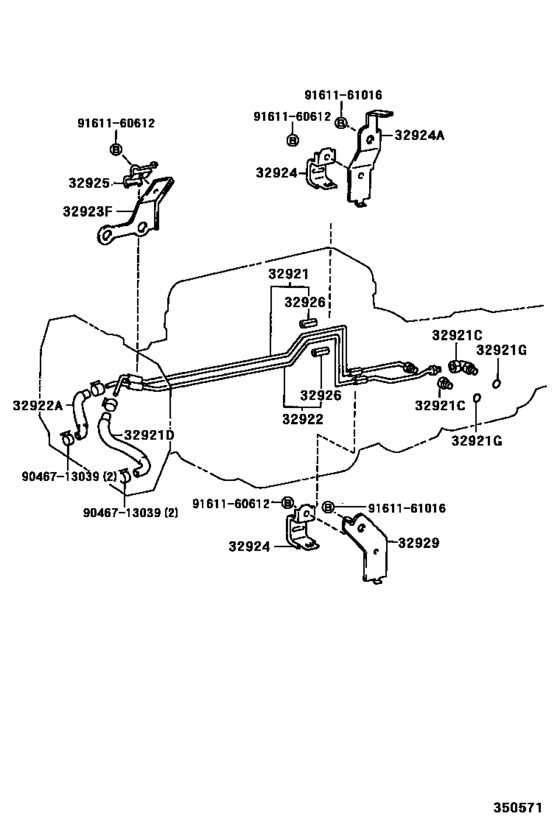

Oil Cooler & Tube (Atm) ([04.1997 - ] A42D (9704- )SX100) 20

#	OEM	Part name
32921	32921-22660	Tube, Oil Cooler Inlet, No.1
32921	90404-14021	Union(For Oil Cooler Tube)
32921	90407-14003	Union(For Oil Cooler Tube)
32921	32941-22300	Hose(For Oil Cooler Inlet)
32921	90301-10189	Ring, O(For Oil Cooler Tube Union)
32922	32922-22660	Tube, Oil Cooler Outlet, No.1
32922	32942-22260	Hose(For Oil Cooler Inlet)
32923	32924-22070	Clamp, Automatic Transmission Oil Cooler Tube, No.1
32924	32924-28010	Clamp, Automatic Transmission Oil Cooler Tube
32924	32928-22091	Clamp, Automatic Transmission Oil Cooler Tube, No.1
32925	90462-12085	Clamp, Automatic Transmission Oil Cooler Tube
32926	32926-22010	Cushion, Oil Cooler Tube(Atm)
32926	32926-30011	Cushion, Oil Cooler Tube(Atm)
32929	32929-22070	Clamp, Automatic Transmission Oil Cooler Tube, No.1
9046713039	90467-13039	Clamp, Hose
9046713039	96135-51300	Clamp, Hose
9161160612	91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612	91611-G0612	Bolt
9161161016	91611-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161161016	91612-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)

OEM	Part name	Category
32921-22660	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([04.1997 - ] A42D (9704- )SX100)
32922-22660	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([04.1997 - ] A42D (9704- )SX100)
32924-22070	Clamp, Automatic Transmission Oil Cooler Tube, No.1	Oil Cooler & Tube (Atm) ([04.1997 - ] A42D (9704- )SX100)
32924-28010	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([04.1997 - ] A42D (9704- )SX100)
32926-22010	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([04.1997 - ] A42D (9704- )SX100)
32926-30011	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([04.1997 - ] A42D (9704- )SX100)
32928-22091	Clamp, Automatic Transmission Oil Cooler Tube, No.1	Oil Cooler & Tube (Atm) ([04.1997 - ] A42D (9704- )SX100)
32929-22070	Clamp, Automatic Transmission Oil Cooler Tube, No.1	Oil Cooler & Tube (Atm) ([04.1997 - ] A42D (9704- )SX100)
32941-22300	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([04.1997 - ] A42D (9704- )SX100)
32942-22260	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([04.1997 - ] A42D (9704- )SX100)
90301-10189	Ring, O(For Oil Cooler Tube Union)	Oil Cooler & Tube (Atm) ([04.1997 - ] A42D (9704- )SX100)
90404-14021	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([04.1997 - ] A42D (9704- )SX100)
90407-14003	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([04.1997 - ] A42D (9704- )SX100)
90462-12085	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([04.1997 - ] A42D (9704- )SX100)
90467-13039	Clamp, Hose	Oil Cooler & Tube (Atm) ([04.1997 - ] A42D (9704- )SX100)
91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Oil Cooler & Tube (Atm) ([04.1997 - ] A42D (9704- )SX100)
91611-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Oil Cooler & Tube (Atm) ([04.1997 - ] A42D (9704- )SX100)
91611-G0612	Bolt	Oil Cooler & Tube (Atm) ([04.1997 - ] A42D (9704- )SX100)
91612-61016	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Oil Cooler & Tube (Atm) ([04.1997 - ] A42D (9704- )SX100)
96135-51300	Clamp, Hose	Oil Cooler & Tube (Atm) ([04.1997 - ] A42D (9704- )SX100)

Source: Public OEM parts-catalog data
Variants: 2 / 2
Category: 190
Collected: 2026-08-02
