Search › Model › SX100
SX100

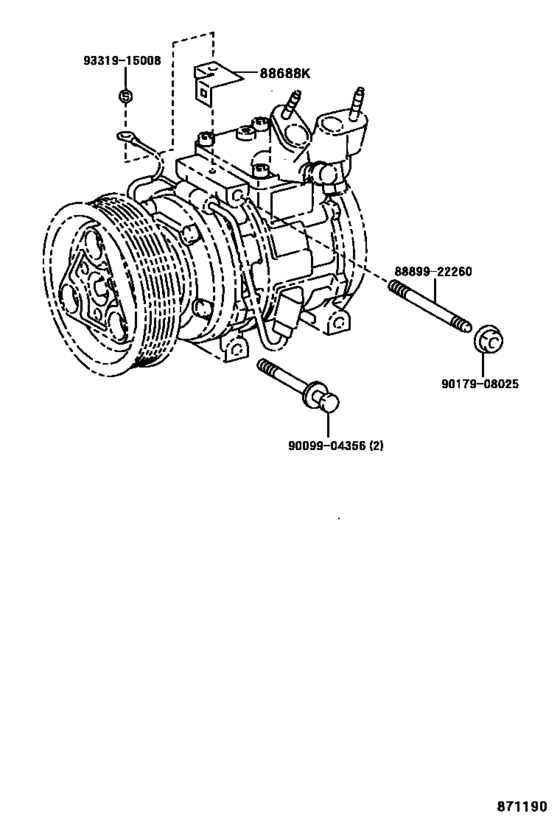

Heating & Air Conditioning - Compressor ([04.1997 - ] (9704- )SX100) 5
| # | OEM | Part name |
|---|---|---|
| 88688 | 88688-33260 | Bracket, Cooler Compressor |
| 8889922260 | 88899-22260 | Cover, Evaporator |
| 9009904356 | 90099-04356 | BOLT |
| 9017908025 | 90179-08025 | Nut, Cap(For Cylinder Head Cover) |
| 9331915008 | 93319-15008 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 88688-33260 | Bracket, Cooler Compressor | Heating & Air Conditioning - Compressor ([04.1997 - ] (9704- )SX100) |
| 88899-22260 | Cover, Evaporator | Heating & Air Conditioning - Compressor ([04.1997 - ] (9704- )SX100) |
| 90099-04356 | BOLT | Heating & Air Conditioning - Compressor ([04.1997 - ] (9704- )SX100) |
| 90179-08025 | Nut, Cap(For Cylinder Head Cover) | Heating & Air Conditioning - Compressor ([04.1997 - ] (9704- )SX100) |
| 93319-15008 | SCREW | Heating & Air Conditioning - Compressor ([04.1997 - ] (9704- )SX100) |
- Source
- Public OEM parts-catalog data
- Variants
- 2 / 2
- Category
- 190
- Collected
- 2026-08-02
