Search › Model › SX100

SX100

Toyota CHASER · 1997 · 4,264 parts · 190 categories
SX100 ×

← Back to categories

4,264 items

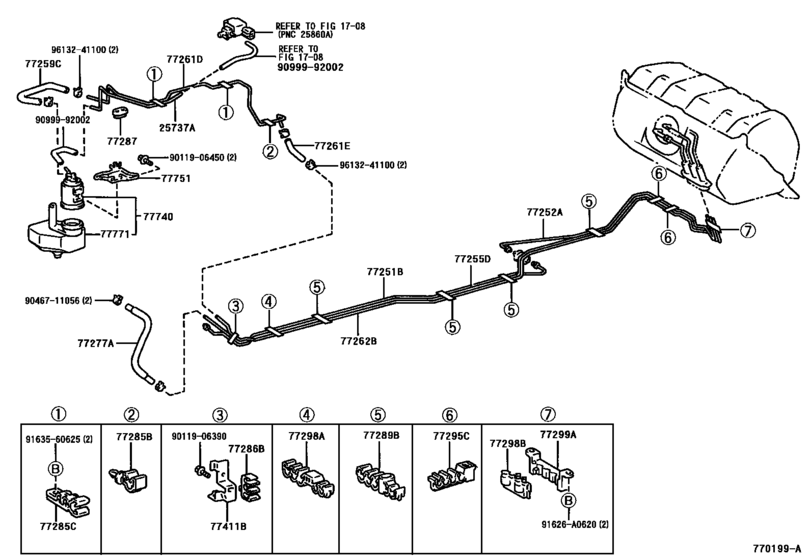

Fuel Tank & Tube ([04.1997 - ] (9704- )SX100) 34
#OEMPart name
25737 25737-74020 Fuel Tube, No.1
77251 77251-22510 Tube, Fuel Main
77252 77252-22080 Tube, Fuel Main, No.2
77255 77255-22400 Tube, Fuel Return
77259 77259-22110 Hose, Fuel
77261 77261-22270 Tube, Fuel Tank To Canister
77261 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77261 95337-06020 Hose, Differential Pressure Control
77262 77262-22060 Tube, Fuel Tank To Canister, No.2
77277 90447-12107 Hose, Fuel, No.1(For Return Tube, No.1)
77285 77285-22030 Clamp, Fuel Tube W/grommet, No.1
77285 77285-22020 Clamp, Fuel Tube, No.1 (For Front Fuel Main)
77286 77286-30060 Clamp, Fuel Tube W/grommet, No.2
77287 77287-22010 Support, Tank To Canister Tube, No.1
77289 77289-30040 Clamp, Fuel Tube, No.3
77295 77295-22110 Clamp, Fuel Tube W/grommet, No.1
77298 77298-30090 Clamp, Fuel Tube, No.4
77298 77298-30120 Clamp, Fuel Tube, No.4
77299 77299-30030 Clamp, Fuel Tube, No.5
77411 77411-22030 Support, Fuel Tube Grommet, No.1
77740 77740-22430 Canister Assy, Charcoal
77751 77751-22130 Bracket, Charcoal Canister Base
77771 77771-22030 Tank, Charcoal Canister
91626 91626-A0620 New Genuine Part
9011906390 90119-06390 BOLT WWASHER
9011906450 90119-06450 New Genuine Part
9011906450 90119-06442 BOLT WWASHER
9046711056 90467-11056 Clamp Or Clip(For Water By-Pass Hose)
9046711056 96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)
9099992002 90999-92002 Air Hose (300 mm)
9163560625 91635-60625 Screw(For Steering Column Tube)
9163560625 91631-60622 Screw
9613241100 96132-41100 Clamp Or Clip(For Radiator Reserve Tank Hose)
9613241100 96132-51100 Clip (For Hose)
