Search › Model › SX100

SX100

Toyota CHASER · 1997 · 4,264 parts · 190 categories

4,264 items

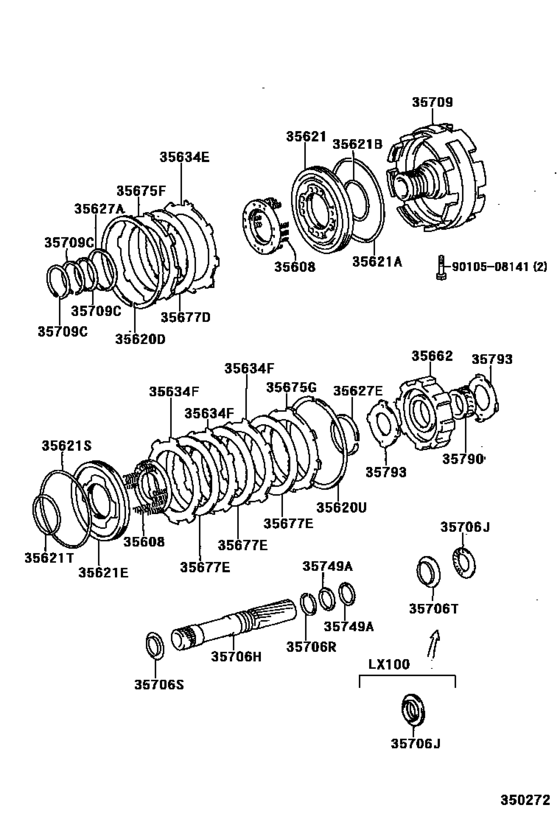

Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC) 33

#	OEM	Part name
35608	35608-20010	Spring Sub-Assy, 2Nd Brake Piston Return
35608	35608-22010	Spring Sub-Assy, 2Nd Brake Piston Return
35620	90521-99139	Ring, Hole Snap (For Overdrive Brake Return Spring Seat)
35621	35624-22010	Piston, Brake, No.1
35621	90301-99110	Ring, O (For Brake Piston Outer)
35621	90301-99192	Ring, O (For Overdrive Direct Clutch Piston)
35621	90301-56007	Ring, O (For Underdrive Clutch Piston)
35621	90301-57188	Ring, O (For Underdrive Clutch Piston)
35621	35621-30010	Piston, Brake, No.1
35621	90301-99007	Ring, O (For Brake Piston Outer)
35621	90301-99107	Ring (For Rear Brake Piston Outer)
35627	90520-52262	Ring, Shaft Snap (For Underdrive Return Spring)
35634	35634-22060	Plate, Clutch (For Overdrive)
35634	35648-30020	Plate, Clutch (For Rear Brake)
35662	35662-30010	Hub, Brake
35675	35675-22010	Flange, Overdrive Clutch
35675	35675-22140	Flange, Overdrive Clutch
35675	34625-22010	Flange, Overdrive Brake, No.1
35675	35676-22030	Flange, Overdrive Brake
35677	35677-30140	Disc, Clutch (For Overdrive)
35677	35677-22070	Disc, Clutch (For Rear Brake)
35706	35706-22011	Gear Sub-Assy, Planetary Sun
35706	90374-23012	Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)
35706	90520-34260	Ring, Shaft Snap (For Sun Gear Front)
35706	35789-22030	Race, Thrust Bearing(For Overdrive)
35706	35789-43020	Race, Thrust Bearing (For Planetary Sun Gear Front)
35706	35789-22010	Race, Thrust Bearing(For Overdrive Planetary Gear)
35709	35709-12011	Support Sub-Assy, Center
35709	35617-16010	Ring, Oil Seal (For Overdrive Case)
35749	35749-22010	Ring, Sun Gear Shaft Oil Seal
35790	35791-30020	Clutch, 1Way, No.1(For Overdrive)
35793	35793-22011	Retainer, 1 Way Clutch
9010508141	90105-08141	New Genuine Part

OEM	Part name	Category
34625-22010	Flange, Overdrive Brake, No.1	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
35608-20010	Spring Sub-Assy, 2Nd Brake Piston Return	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
35608-22010	Spring Sub-Assy, 2Nd Brake Piston Return	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
35617-16010	Ring, Oil Seal (For Overdrive Case)	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
35621-30010	Piston, Brake, No.1	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
35624-22010	Piston, Brake, No.1	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
35634-22060	Plate, Clutch (For Overdrive)	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
35648-30020	Plate, Clutch (For Rear Brake)	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
35662-30010	Hub, Brake	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
35675-22010	Flange, Overdrive Clutch	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
35675-22140	Flange, Overdrive Clutch	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
35676-22030	Flange, Overdrive Brake	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
35677-22070	Disc, Clutch (For Rear Brake)	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
35677-30140	Disc, Clutch (For Overdrive)	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
35706-22011	Gear Sub-Assy, Planetary Sun	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
35709-12011	Support Sub-Assy, Center	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
35749-22010	Ring, Sun Gear Shaft Oil Seal	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
35789-22010	Race, Thrust Bearing(For Overdrive Planetary Gear)	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
35789-22030	Race, Thrust Bearing(For Overdrive)	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
35789-43020	Race, Thrust Bearing (For Planetary Sun Gear Front)	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
35791-30020	Clutch, 1Way, No.1(For Overdrive)	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
35793-22011	Retainer, 1 Way Clutch	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
90105-08141	New Genuine Part	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
90301-56007	Ring, O (For Underdrive Clutch Piston)	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
90301-57188	Ring, O (For Underdrive Clutch Piston)	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
90301-99007	Ring, O (For Brake Piston Outer)	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
90301-99107	Ring (For Rear Brake Piston Outer)	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
90301-99110	Ring, O (For Brake Piston Outer)	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
90301-99192	Ring, O (For Overdrive Direct Clutch Piston)	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
90374-23012	Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
90520-34260	Ring, Shaft Snap (For Sun Gear Front)	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
90520-52262	Ring, Shaft Snap (For Underdrive Return Spring)	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
90521-99139	Ring, Hole Snap (For Overdrive Brake Return Spring Seat)	Center Support & Planetary Sun Gear (Atm) ([09.1996 - ] A42DE,A43D,A42D (9609- )GX100,LX100,SX100..4FC)
