SX100

Toyota CHASER · 1997 · 4,264 parts · 190 categories

4,264 items

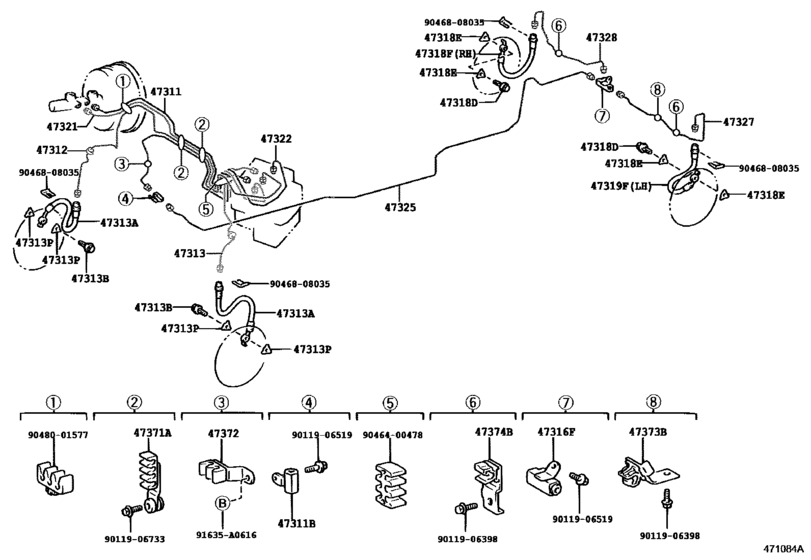

Brake Tube & Clamp ([04.1997 - ] (9704- )SX100) 27

#	OEM	Part name
47311	47311-22520	Tube, Front Brake, No.1
47311	90412-10213	Way(For Front Brake Tube)
47312	47312-22280	Tube, Front Brake, No.2
47313	47313-22460	Tube, Front Brake, No.3
47313	90947-02889	Hose, Flexible, No.1(For Front)
47313	90401-10042	Bolt, Union(For Front Flexible Hose)
47313	47389-30010	Gasket(For Clutch Master Cylinder To Flexible Hose Tube)
47316	90413-10280	Way, 3(For Rear Brake Tube)
47318	90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)
47318	90947-02840	Hose, Flexible(For Rear Rh)
47321	47321-22290	Tube, Rear Brake, No.1
47322	47322-22360	Tube, Rear Brake, No.2
47325	47325-22120	Tube, Rear Brake, No.5
47327	47327-22150	Tube, Rear Brake, No.7
47328	47328-22150	Tube, Rear Brake, No.8
47371	47371-22430	Clamp, Brake Tube, No.1
47372	47371-22560	Clamp, Brake Tube, No.2
47373	47371-22420	Clamp, Brake Tube, No.1
47374	47371-22530	Clamp, Brake Tube, No.2
91635	91635-A0616	BOLT WWASHER
9011906398	90119-06398	BOLT WWASHER
9011906519	90119-06519	New Genuine Part
9011906733	90119-06733	New Genuine Part
9046400478	90464-00478	Clamp, Brake Tube, No.3
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9048001577	90480-01577	GROMMET

OEM	Part name	Category
47311-22520	Tube, Front Brake, No.1	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
47312-22280	Tube, Front Brake, No.2	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
47313-22460	Tube, Front Brake, No.3	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
47321-22290	Tube, Rear Brake, No.1	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
47322-22360	Tube, Rear Brake, No.2	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
47325-22120	Tube, Rear Brake, No.5	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
47327-22150	Tube, Rear Brake, No.7	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
47328-22150	Tube, Rear Brake, No.8	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
47371-22420	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
47371-22430	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
47371-22530	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
47371-22560	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
47389-30010	Gasket(For Clutch Master Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
90119-06398	BOLT WWASHER	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
90119-06519	New Genuine Part	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
90119-06733	New Genuine Part	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
90401-10015	Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
90401-10042	Bolt, Union(For Front Flexible Hose)	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
90412-10213	Way(For Front Brake Tube)	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
90413-10280	Way, 3(For Rear Brake Tube)	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
90464-00478	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
90468-08035	CLIP	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
90480-01577	GROMMET	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
90947-02840	Hose, Flexible(For Rear Rh)	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
90947-02889	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
91635-A0616	BOLT WWASHER	Brake Tube & Clamp ([04.1997 - ] (9704- )SX100)
