Search › Model › SX100
SX100

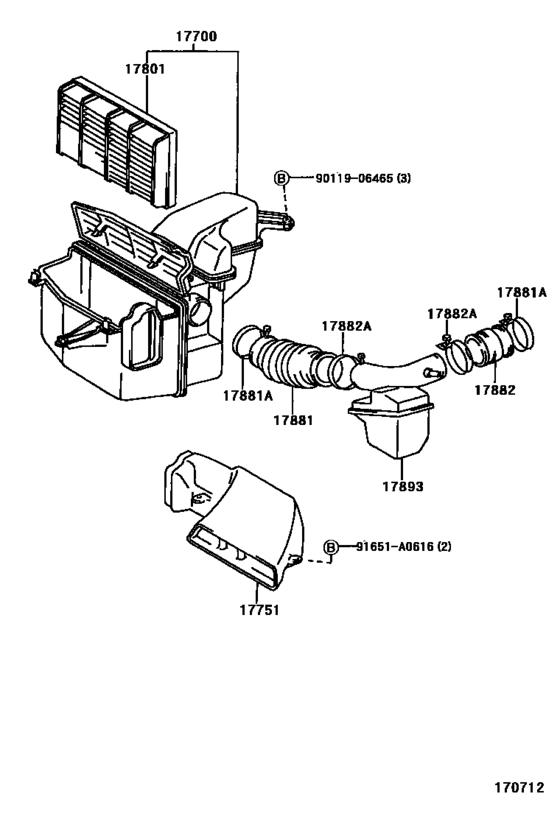

Air Cleaner ([04.1997 - ] (9704- )4SFE) 9
| # | OEM | Part name |
|---|---|---|
| 17700 | 17700-74670 | Cleaner Assy, Air |
| 17751 | 17751-74020 | Inlet, Air Cleaner, No.1 |
| 17801 | 17801-46060 | Element Sub-Assy, Air Cleaner Filter |
| 17881 | 17881-74470 | Hose, Air Cleaner, No.1 |
| 17881 | 96111-10710 | Clamp(For Air Cleaner Inlet Duct) |
| 17882 | 17882-74310 | Hose, Air Cleaner, No.2 |
| 17893 | 17893-74360 | Resonator, Intake Air |
| 91651 | 91651-A0616 | BOLTWWASHER |
| 9011906465 | 90119-06465 | BOLT |
| OEM | Part name | Category |
|---|---|---|
| 17700-74670 | Cleaner Assy, Air | Air Cleaner ([04.1997 - ] (9704- )4SFE) |
| 17751-74020 | Inlet, Air Cleaner, No.1 | Air Cleaner ([04.1997 - ] (9704- )4SFE) |
| 17801-46060 | Element Sub-Assy, Air Cleaner Filter | Air Cleaner ([04.1997 - ] (9704- )4SFE) |
| 17881-74470 | Hose, Air Cleaner, No.1 | Air Cleaner ([04.1997 - ] (9704- )4SFE) |
| 17882-74310 | Hose, Air Cleaner, No.2 | Air Cleaner ([04.1997 - ] (9704- )4SFE) |
| 17893-74360 | Resonator, Intake Air | Air Cleaner ([04.1997 - ] (9704- )4SFE) |
| 90119-06465 | BOLT | Air Cleaner ([04.1997 - ] (9704- )4SFE) |
| 91651-A0616 | BOLTWWASHER | Air Cleaner ([04.1997 - ] (9704- )4SFE) |
| 96111-10710 | Clamp(For Air Cleaner Inlet Duct) | Air Cleaner ([04.1997 - ] (9704- )4SFE) |
