Search › Model › SW413

SW413

Suzuki KEI-SWIFT · 3,210 parts · 160 categories

3,210 items

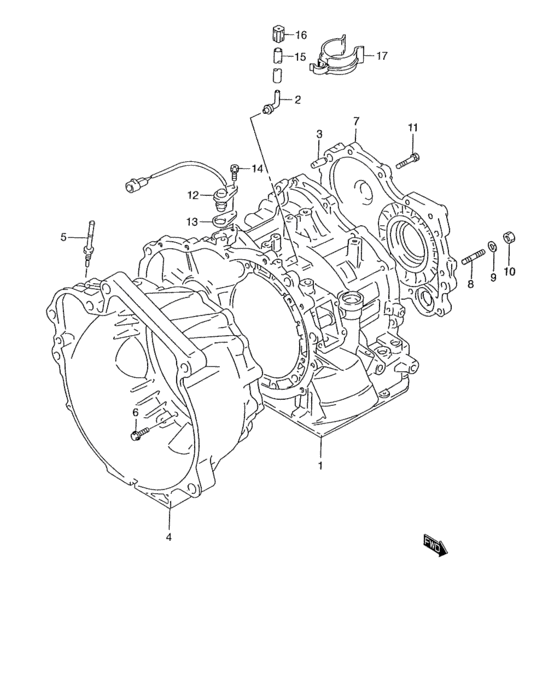

At tm case (AT) 21

#	OEM	Part name
1	24710-62B03-000	CASE ASSY,T/M
1	24710-52G00-000	CASE ASSY,T/M
2	24717-83C00-000	PLUG,BREATHER
2	24717-52G00-000	PLUG,BREATHER
3	24791-82300-000	PIN,TRANSMISSION CASE KNOCK
4	24721-62B22-000	HOUSING,TORQUE CONVERTER
5	24722-62B21-000	PIPE,ATF COOLER RETURN
6	09117-08089-000	BOLT(8X35)
7	24730-82320-000	COVER,T/M,RR
8	24889-82300-000	BOLT,T/M RR COVER STUD
9	09162-08008-000	WASHER,LOCK - Lock washer
10	08310-00083-000	Nut
10	08310-0008B-000	NUT
10	08310-0008A-000	NUT - Nut, bead stopper
12	26141-62D01-000	SENSOR,SPEED
13	26142-62E20-000	SPACER,SPEED SENSOR
14	09137-06015-000	BOLT(6X16)
15	09359-50823-600	HOSE(5X8.2X600) - Hose, fuel (conn to filter)
15	09359-50824-600	Hose(5X8.2X600)
16	27991-65D01-000	PLUG,BREATHER
17	09408-00161-000	CLAMP

OEM	Part name	Category
08310-00083-000	Nut	At tm case (AT)
08310-0008A-000	NUT - Nut, bead stopper	At tm case (AT)
08310-0008B-000	NUT	At tm case (AT)
09117-08089-000	BOLT(8X35)	At tm case (AT)
09137-06015-000	BOLT(6X16)	At tm case (AT)
09162-08008-000	WASHER,LOCK - Lock washer	At tm case (AT)
09359-50823-600	HOSE(5X8.2X600) - Hose, fuel (conn to filter)	At tm case (AT)
09359-50824-600	Hose(5X8.2X600)	At tm case (AT)
09408-00161-000	CLAMP	At tm case (AT)
24710-52G00-000	CASE ASSY,T/M	At tm case (AT)
24710-62B03-000	CASE ASSY,T/M	At tm case (AT)
24717-52G00-000	PLUG,BREATHER	At tm case (AT)
24717-83C00-000	PLUG,BREATHER	At tm case (AT)
24721-62B22-000	HOUSING,TORQUE CONVERTER	At tm case (AT)
24722-62B21-000	PIPE,ATF COOLER RETURN	At tm case (AT)
24730-82320-000	COVER,T/M,RR	At tm case (AT)
24791-82300-000	PIN,TRANSMISSION CASE KNOCK	At tm case (AT)
24889-82300-000	BOLT,T/M RR COVER STUD	At tm case (AT)
26141-62D01-000	SENSOR,SPEED	At tm case (AT)
26142-62E20-000	SPACER,SPEED SENSOR	At tm case (AT)
27991-65D01-000	PLUG,BREATHER	At tm case (AT)
