Search › Model › SW413
SW413

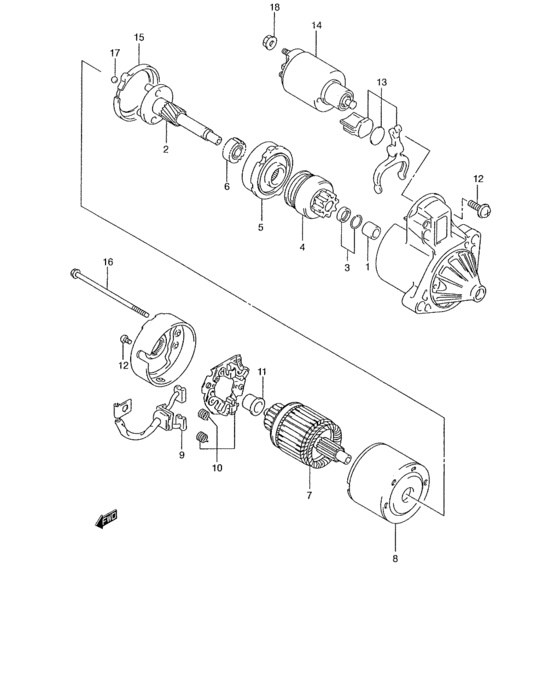

A starting motor (AT) 24
| # | OEM | Part name |
|---|---|---|
| 0 | 31100-860D2-000 | Motor assy, starter |
| 0 | 31100-860D2-REM | New Genuine Part |
| 1 | 31152-79030-000 | BEARING,FRONT |
| 2 | 31341-60A10-000 | SHAFT,GEAR |
| 3 | 31313-86030-000 | STOPPER SET |
| 3 | 31314-86030-000 | Stopper Set |
| 4 | 31320-86030-000 | CLUTCH,OVER RUNNING |
| 5 | 31343-50F40-000 | GEAR,INTERNAL |
| 6 | 31344-86030-000 | GEAR,PLNTY |
| 7 | 31311-86032-000 | Armature |
| 8 | 31110-86031-000 | YOKE ASSY |
| 9 | 31131-86030-000 | BRUSH ASSY |
| 10 | 31173-60A20-000 | HOLDER ASSY,BRUSH |
| 11 | 31172-64B60-000 | BEARING,REAR |
| 12 | 31136-79030-000 | SCREW ASSY |
| 12 | 31175-79030-000 | Screw Set |
| 13 | 31191-86030-000 | LEVER ASSY |
| 14 | 31220-86030-000 | SWITCH ASSY |
| 15 | 31345-86030-000 | Packing |
| 15 | 31345-60A00-000 | PACKING |
| 16 | 31261-86030-000 | Bolt |
| 17 | 31193-86030-000 | BALL |
| 18 | 08316-10083-000 | Nut |
| 18 | 08316-1008B-000 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 08316-10083-000 | Nut | A starting motor (AT) |
| 08316-1008B-000 | NUT | A starting motor (AT) |
| 31100-860D2-000 | Motor assy, starter | A starting motor (AT) |
| 31100-860D2-REM | New Genuine Part | A starting motor (AT) |
| 31110-86031-000 | YOKE ASSY | A starting motor (AT) |
| 31131-86030-000 | BRUSH ASSY | A starting motor (AT) |
| 31136-79030-000 | SCREW ASSY | A starting motor (AT) |
| 31152-79030-000 | BEARING,FRONT | A starting motor (AT) |
| 31172-64B60-000 | BEARING,REAR | A starting motor (AT) |
| 31173-60A20-000 | HOLDER ASSY,BRUSH | A starting motor (AT) |
| 31175-79030-000 | Screw Set | A starting motor (AT) |
| 31191-86030-000 | LEVER ASSY | A starting motor (AT) |
| 31193-86030-000 | BALL | A starting motor (AT) |
| 31220-86030-000 | SWITCH ASSY | A starting motor (AT) |
| 31261-86030-000 | Bolt | A starting motor (AT) |
| 31311-86032-000 | Armature | A starting motor (AT) |
| 31313-86030-000 | STOPPER SET | A starting motor (AT) |
| 31314-86030-000 | Stopper Set | A starting motor (AT) |
| 31320-86030-000 | CLUTCH,OVER RUNNING | A starting motor (AT) |
| 31341-60A10-000 | SHAFT,GEAR | A starting motor (AT) |
| 31343-50F40-000 | GEAR,INTERNAL | A starting motor (AT) |
| 31344-86030-000 | GEAR,PLNTY | A starting motor (AT) |
| 31345-60A00-000 | PACKING | A starting motor (AT) |
| 31345-86030-000 | Packing | A starting motor (AT) |
