Search › Model › SW21

SW21

Toyota MR-2-MR-S · 1990 · 6,352 parts · 203 categories

6,352 items

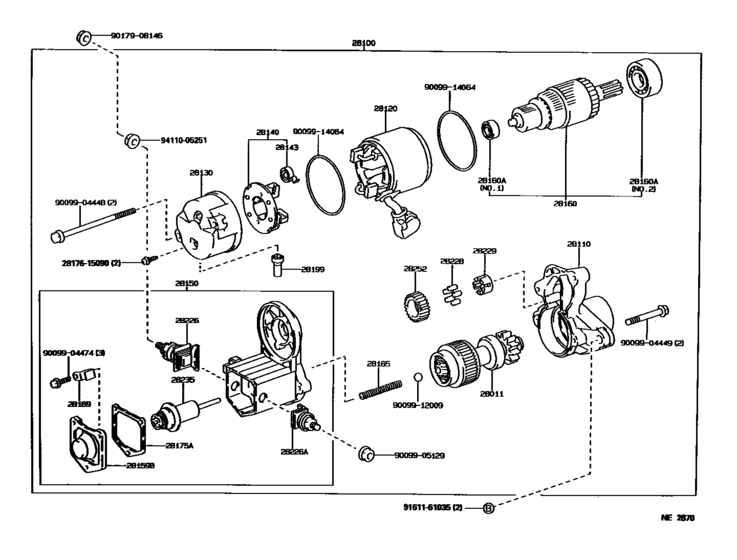

Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE) 59

#	OEM	Part name
28011	28011-74011	Clutch Sub-Assy, Starter
28011	28011-74060	Clutch Sub-Assy, Starter
28011	28011-74070	Clutch Sub-Assy, Starter
28100	28100-74050	Starter Assy
28100	28100-74070	Starter Assy
28110	28110-62020	Housing Assy, Starter Drive
28110	28110-74070	Housing Assy, Starter Drive
28120	28120-65030	Yoke Assy, Starter
28120	28120-74070	Yoke Assy, Starter
28130	28130-62020	Frame Assy, Starter Commutator End
28130	28130-74070	Frame Assy, Starter Commutator End
28140	28140-74020	Holder Assy, Starter Brush
28140	28140-74070	Holder Assy, Starter Brush
28143	90099-17112	Spring, Starter Brush
28150	28150-74020	Switch Assy, Magnet Starter
28150	28150-74070	Switch Assy, Magnet Starter
28159	28159-10040	Cover, Magnet Switch
28159	28159-55050	Cover, Starter Protector
28160	28160-65031	Armature Assy, Starter
28160	28160-74070	Armature Assy, Starter
28160	90099-10143	Bearing, Starter Armature
28160	90099-10144	Bearing, Starter Armature
28160	90099-10196	Bearing, Starter Armature
28160	90099-10197	Bearing, Starter Armature
28160	90099-65030	Bearing, Starter Armature
28165	28165-74010	Spring, Starter Magnet Switch Return
28165	28165-74070	Spring, Starter Magnet Switch Return
28169	28169-10040	Clamp, Starter Motor Lead Wire
28169	28169-55050	Clamp, Starter Motor Lead Wire
28175	28175-10040	Gasket, Magnet Switch Cover
28175	28175-55050	Gasket, Magnet Switch Cover
28199	28199-15090	Cover, Starter End Frame
28199	28199-74070	Cover, Starter End Frame
28199	28199-74110	Cover, Starter End Frame
28226	28226-16130	Starter Kit, Battery Terminal
28226	28226-72080	Starter Kit, Battery Terminal
28226	28226-72010	Starter Kit, Motor Terminal
28226	28226-74070	Starter Kit, Battery Terminal
28228	28228-26040	Roller, Starter Idle Gear Clutch
28229	28229-26040	Retainer, Starter Idle Gear
28229	28229-74070	Retainer, Starter Idle Gear
28235	28235-74060	Plunger, Magnet Switch
28235	28235-74130	Plunger, Magnet Switch
28252	28254-54070	Pinion, Starter Drive
28252	28254-74070	Pinion, Starter Drive
2817615090	28176-15090	Screw, Starter
2817615090	28176-87701	Screw, Starter
9009904448	90099-04448	Bolt, Starter
9009904449	90099-04449	New Genuine Part
9009904474	90099-04474	New Genuine Part
9009905129	90099-05129	Nut (For Front Wiper Arm Setting)
9009912009	90099-12009	Ball, Starter Clutch
9009914064	90099-14064	Rubber(For Starter Yoke)
9017908146	90179-08146	Nut
9017908146	90179-08204	Nut
9161161035	91611-61035	BOLT
9161161035	91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)
9411005251	94110-05251	New Genuine Part
9411005251	90099-05251	New Genuine Part

OEM	Part name	Category
28011-74011	Clutch Sub-Assy, Starter	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28011-74060	Clutch Sub-Assy, Starter	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28011-74070	Clutch Sub-Assy, Starter	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28100-74050	Starter Assy	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28100-74070	Starter Assy	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28110-62020	Housing Assy, Starter Drive	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28110-74070	Housing Assy, Starter Drive	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28120-65030	Yoke Assy, Starter	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28120-74070	Yoke Assy, Starter	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28130-62020	Frame Assy, Starter Commutator End	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28130-74070	Frame Assy, Starter Commutator End	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28140-74020	Holder Assy, Starter Brush	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28140-74070	Holder Assy, Starter Brush	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28150-74020	Switch Assy, Magnet Starter	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28150-74070	Switch Assy, Magnet Starter	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28159-10040	Cover, Magnet Switch	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28159-55050	Cover, Starter Protector	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28160-65031	Armature Assy, Starter	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28160-74070	Armature Assy, Starter	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28165-74010	Spring, Starter Magnet Switch Return	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28165-74070	Spring, Starter Magnet Switch Return	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28169-10040	Clamp, Starter Motor Lead Wire	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28169-55050	Clamp, Starter Motor Lead Wire	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28175-10040	Gasket, Magnet Switch Cover	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28175-55050	Gasket, Magnet Switch Cover	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28176-15090	Screw, Starter	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28176-87701	Screw, Starter	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28199-15090	Cover, Starter End Frame	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28199-74070	Cover, Starter End Frame	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28199-74110	Cover, Starter End Frame	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28226-16130	Starter Kit, Battery Terminal	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28226-72010	Starter Kit, Motor Terminal	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28226-72080	Starter Kit, Battery Terminal	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28226-74070	Starter Kit, Battery Terminal	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28228-26040	Roller, Starter Idle Gear Clutch	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28229-26040	Retainer, Starter Idle Gear	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28229-74070	Retainer, Starter Idle Gear	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28235-74060	Plunger, Magnet Switch	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28235-74130	Plunger, Magnet Switch	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28254-54070	Pinion, Starter Drive	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
28254-74070	Pinion, Starter Drive	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
90099-04448	Bolt, Starter	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
90099-04449	New Genuine Part	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
90099-04474	New Genuine Part	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
90099-05129	Nut (For Front Wiper Arm Setting)	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
90099-05251	New Genuine Part	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
90099-10143	Bearing, Starter Armature	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
90099-10144	Bearing, Starter Armature	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
90099-10196	Bearing, Starter Armature	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
90099-10197	Bearing, Starter Armature	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
90099-12009	Ball, Starter Clutch	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
90099-14064	Rubber(For Starter Yoke)	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
90099-17112	Spring, Starter Brush	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
90099-65030	Bearing, Starter Armature	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
90179-08146	Nut	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
90179-08204	Nut	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
91611-61035	BOLT	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
91612-61035	Bolt(For Hybrid Vehicle Transaxle & Engine Setting)	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
94110-05251	New Genuine Part	Starter ([01.1990 - ] 12V 1.4KW (9001- )5SFE)
