Search › Model › SW20

SW20

Toyota MR-2-MR-S · 1989 · 5,467 parts · 204 categories

5,467 items

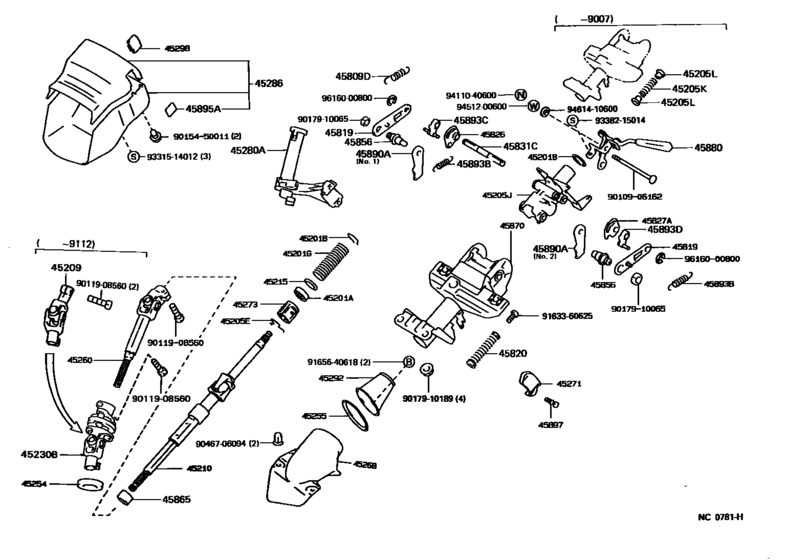

Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W) 91

#	OEM	Part name
45201	90363-18005	Bearing(For Steering Main Shaft)
45201	90520-17042	Ring, Shaft Snap(For Steering Main Shaft)
45201	90501-40017	Spring, Compression(For Steering Main Shaft)
45205	90521-01006	Ring, Snap(For Steering Column Tube)
45205	45205-20260	Tube Sub-Assy, Steering Column, Upper
45210	45210-17040	Shaft Assy, Steering Main
45210	45210-17041	Shaft Assy, Steering Main
45215	45215-12010	Collar, Main Shaft Bearing Thrust
45230	45230-17010	Joint Assy, Steering Shaft Universal
45230	45230-17020	Joint Assy, Steering Shaft Universal
45254	45254-17020	Shield, Steering Column Hole
45254	45254-17030	Shield, Steering Column Hole
45255	45255-17010	Plate, Steering Column Hole Cover
45260	45260-17100	Shaft Assy, Steering Intermediate, No.2
45260	45260-17110	Shaft Assy, Steering Intermediate, No.2
45268	45268-17010	Cover, Steering Inter Shaft Dust Seal
45271	45271-12060	Clamp, Steering Column, Upper
45273	45273-20011	Bush, Steering Main Shaft
45280	45280-20500	Bracket Assy, Steering Column, Upper
45286	45287-17911-01	Cover, Steering Column
45286	45287-17911-04	Cover, Steering Column
45286	45287-17916-22	Cover, Steering Column
45292	45292-17010	Seal, Main Shaft Lower Dust
45298	45298-17010-01	Plug, Steering Column Cover
45298	45298-20010-C0	Plug, Steering Column Cover
45298	45298-17010-04	Plug, Steering Column Cover
45809	90507-07003	Spring, Tension W/damper(For Adjuster Memory Cover)
45819	45819-22040	Retainer, Tilt Lever
45819	45819-22060	Retainer, Tilt Lever
45820	45820-12020	Spring Assy, Tilt Steering Support
45820	45820-17010	Spring Assy, Tilt Steering Support
45820	45820-32020	Spring Assy, Tilt Steering Support
45826	45826-22050	Lever, Steering Tilt
45827	45827-22030	Lever, Steering Tilt Sub
45831	45831-22020	Bolt, Tilt Lever Lock, No.1
45856	45856-17010	Bolt, Tilt Steering, No.2
45856	45856-22010	Bolt, Tilt Steering, No.1
45856	45856-17020	Bolt, Tilt Steering, No.2
45865	45865-20010	Collar, Steering Main Shaft
45870	45870-17030	Tube Assy, Steering Column
45880	45880-20010	Lever Assy, Steering Tilt
45890	45890-20110	Pawl Assy, Tilt Steering
45890	45890-22090	Pawl Assy, Tilt Steering
45893	90507-08010	Spring, Tension(For Steering Tilt Lever)
45893	90507-10019	Spring, Tension(For Tilt Steering Pawl Stopper)
45893	45893-22030	Stopper, Tilt Steering Pawl
45893	45893-22040	Stopper, Tilt Steering Pawl
45893	45893-22050	Stopper, Tilt Steering Pawl
45893	45893-22060	Stopper, Tilt Steering Pawl
45893	45893-22070	Stopper, Tilt Steering Pawl
45893	45893-24010	Stopper, Tilt Steering Pawl
45893	45893-24020	Stopper, Tilt Steering Pawl
45893	45893-24030	Stopper, Tilt Steering Pawl
45893	45893-24040	Stopper, Tilt Steering Pawl
45893	45893-24050	Stopper, Tilt Steering Pawl
45893	45893-24060	Stopper, Tilt Steering Pawl
45893	45893-24070	Stopper, Tilt Steering Pawl
45893	45893-20260	Stopper, Tilt Steering Pawl
45893	45893-20270	Stopper, Tilt Steering Pawl
45893	45893-20280	Stopper, Tilt Steering Pawl
45893	45893-20290	Stopper, Tilt Steering Pawl
45893	45893-20300	Stopper, Tilt Steering Pawl
45893	45893-20310	Stopper, Tilt Steering Pawl
45893	45893-20320	Stopper, Tilt Steering Pawl
45893	45893-22080	Stopper, Tilt Steering Pawl
45893	45893-22090	Stopper, Tilt Steering Pawl
45893	45893-22100	Stopper, Tilt Steering Pawl
45893	45893-22110	Stopper, Tilt Steering Pawl
45893	45893-22120	Stopper, Tilt Steering Pawl
45895	45895-20090	Plate, Tilt Steering Caution
45895	45895-20100	Plate, Tilt Steering Caution - TILT LEVER INSTRUCTION
45897	45897-12020	Bolt, Steering Lock Set
9010906162	90109-06162	Bolt(For Steering Tilt Lever)
9011908560	90119-08560	Bolt, Hexagon
9011908560	90080-11555	Bolt w-washer
9015450011	90154-50011	New Genuine Part
9017910065	90179-10065	Nut, Master Cylinder Push Rod Clevis Lock
9017910189	90179-10189	New Genuine Part
9046706094	90467-06094	Clip(For Cowl Side Trim)
9163360625	91633-60625	Screw(For Steering Column Tube)
9163360625	91631-60622	Screw
9165640618	91656-40618	Bolt (For Rear Differential Breather Plug Oil Deflector)
9165640618	91651-60614	Bolt
9331514012	93315-14012	Screw with washer
9338215014	93382-15014	Screw(For Steering Tilt Lever)
9338215014	93383-55014	Screw(For Steering Tilt Lever)
9411040600	94110-40600	Nut, Rock
9451200600	94512-00600	Washer, Seal(For Head Cover Set)
9461410600	94614-10600	Washer (For Primary Regulator Valve)
9461410600	94613-10601	Washer (For Primary Regulator Valve)
9616000800	96160-00800	Ring, E(For Counter Weight)

OEM	Part name	Category
45205-20260	Tube Sub-Assy, Steering Column, Upper	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45210-17040	Shaft Assy, Steering Main	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45210-17041	Shaft Assy, Steering Main	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45215-12010	Collar, Main Shaft Bearing Thrust	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45230-17010	Joint Assy, Steering Shaft Universal	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45230-17020	Joint Assy, Steering Shaft Universal	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45254-17020	Shield, Steering Column Hole	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45254-17030	Shield, Steering Column Hole	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45255-17010	Plate, Steering Column Hole Cover	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45260-17100	Shaft Assy, Steering Intermediate, No.2	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45260-17110	Shaft Assy, Steering Intermediate, No.2	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45268-17010	Cover, Steering Inter Shaft Dust Seal	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45271-12060	Clamp, Steering Column, Upper	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45273-20011	Bush, Steering Main Shaft	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45280-20500	Bracket Assy, Steering Column, Upper	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45287-17911-01	Cover, Steering Column	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45287-17911-04	Cover, Steering Column	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45287-17916-22	Cover, Steering Column	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45292-17010	Seal, Main Shaft Lower Dust	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45298-17010-01	Plug, Steering Column Cover	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45298-17010-04	Plug, Steering Column Cover	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45298-20010-C0	Plug, Steering Column Cover	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45819-22040	Retainer, Tilt Lever	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45819-22060	Retainer, Tilt Lever	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45820-12020	Spring Assy, Tilt Steering Support	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45820-17010	Spring Assy, Tilt Steering Support	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45820-32020	Spring Assy, Tilt Steering Support	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45826-22050	Lever, Steering Tilt	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45827-22030	Lever, Steering Tilt Sub	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45831-22020	Bolt, Tilt Lever Lock, No.1	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45856-17010	Bolt, Tilt Steering, No.2	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45856-17020	Bolt, Tilt Steering, No.2	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45856-22010	Bolt, Tilt Steering, No.1	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45865-20010	Collar, Steering Main Shaft	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45870-17030	Tube Assy, Steering Column	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45880-20010	Lever Assy, Steering Tilt	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45890-20110	Pawl Assy, Tilt Steering	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45890-22090	Pawl Assy, Tilt Steering	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45893-20260	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45893-20270	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45893-20280	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45893-20290	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45893-20300	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45893-20310	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45893-20320	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45893-22030	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45893-22040	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45893-22050	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45893-22060	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45893-22070	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45893-22080	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45893-22090	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45893-22100	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45893-22110	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45893-22120	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45893-24010	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45893-24020	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45893-24030	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45893-24040	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45893-24050	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45893-24060	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45893-24070	Stopper, Tilt Steering Pawl	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45895-20090	Plate, Tilt Steering Caution	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45895-20100	Plate, Tilt Steering Caution - TILT LEVER INSTRUCTION	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
45897-12020	Bolt, Steering Lock Set	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
90080-11555	Bolt w-washer	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
90109-06162	Bolt(For Steering Tilt Lever)	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
90119-08560	Bolt, Hexagon	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
90154-50011	New Genuine Part	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
90179-10065	Nut, Master Cylinder Push Rod Clevis Lock	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
90179-10189	New Genuine Part	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
90363-18005	Bearing(For Steering Main Shaft)	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
90467-06094	Clip(For Cowl Side Trim)	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
90501-40017	Spring, Compression(For Steering Main Shaft)	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
90507-07003	Spring, Tension W/damper(For Adjuster Memory Cover)	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
90507-08010	Spring, Tension(For Steering Tilt Lever)	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
90507-10019	Spring, Tension(For Tilt Steering Pawl Stopper)	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
90520-17042	Ring, Shaft Snap(For Steering Main Shaft)	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
90521-01006	Ring, Snap(For Steering Column Tube)	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
91631-60622	Screw	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
91633-60625	Screw(For Steering Column Tube)	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
91651-60614	Bolt	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
91656-40618	Bolt (For Rear Differential Breather Plug Oil Deflector)	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
93315-14012	Screw with washer	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
93382-15014	Screw(For Steering Tilt Lever)	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
93383-55014	Screw(For Steering Tilt Lever)	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
94110-40600	Nut, Rock	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
94512-00600	Washer, Seal(For Head Cover Set)	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
94613-10601	Washer (For Primary Regulator Valve)	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
94614-10600	Washer (For Primary Regulator Valve)	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
96160-00800	Ring, E(For Counter Weight)	Steering Column & Shaft ([12.1989 - 11.1993] (8912-9311)G,W)
