Search › Model › SW20

SW20

Toyota MR-2-MR-S · 1989 · 5,467 parts · 204 categories

5,467 items

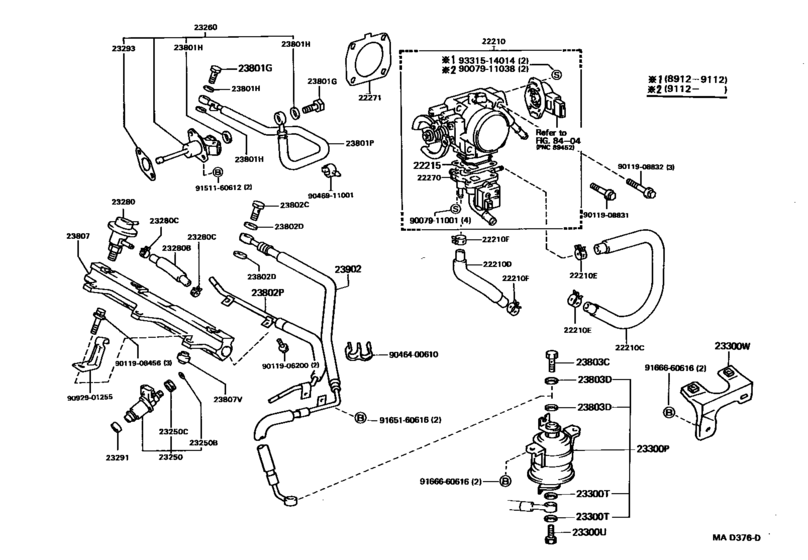

Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE) 59

#	OEM	Part name
22210	22210-74750	Body Assy, Throttle
22210	22210-7A070	Body Assy, Throttle
22210	22210-7A570	Body Assy, Throttle
22210	16264-88361	Hose, Water By-Pass, No.1
22210	16267-88460	Hose, Water By-Pass, No.1
22210	16264-88460	Hose, Water By-Pass, No.1
22210	16267-88361	Hose, Water By-Pass, No.2
22210	90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)
22210	96135-51300	Clamp, Hose
22210	90467-13128	Clamp Or Clip, Hose(For Water By-Pass Hose)
22215	22215-74380	Gasket, Throttle Body Cover
22270	22270-74070	Valve Assy, Idle Speed Control(For Thlottle Body)
22270	22270-74220	Valve Assy, Idle Speed Control(For Thlottle Body)
22270	22270-74330	Valve Assy, Idle Speed Control(For Thlottle Body)
22271	22271-74050	Gasket, Throttle Body
22271	22271-88460	Gasket, Throttle Body
22271	22271-88461	Gasket, Throttle Body
23250	23209-74080	Injector Assy, Fuel
23250	23209-74160	Injector Assy, Fuel
23250	90301-07001	Ring, O(For Fuel Injector)
23250	90301-07024	Ring, O(For Fuel Injector)
23250	90480-13005	Grommet(For Fuel Injector)
23260	23260-79165	Injector Assy, Cold Start Fuel
23280	23280-74080	Regulator Assy, Fuel Pressure
23280	23280-74120	Regulator Assy, Fuel Pressure
23280	23271-88461	Hose, Fuel Pressure Regulator Return
23280	90447-12051	Hose, Fuel Pressure Regulator Return
23280	90467-11065	Clip(For Fuel Hose No.2)
23291	23291-41010	Insulator, Injector Vibration
23293	23293-88360	Gasket(For Oil Strainer)
23300	23300-79275	Filter, Fuel(For Efi)
23300	90430-12026	Gasket
23300	90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)
23300	96341-11200	Bolt, Union(For Turbo Oil Inlet Pipe)
23300	23264-74050	Bracket, Fuel Filter
23801	90401-08003	Bolt, Union
23801	90430-08012	Gasket
23801	23801-88361	Pipe Sub-Assy, Fuel, No.1
23802	23903-88360	Tube Sub-Assy, Fuel, No.3
23802	23903-88461	Tube Sub-Assy, Fuel, No.3
23807	23814-88361	Pipe Sub-Assy, Fuel Delivery
23807	23814-88461	Pipe Sub-Assy, Fuel Delivery
23807	90561-08024	Spacer, No.1(For Delivery Pipe)
23807	90561-08051	Spacer, No.1(For Delivery Pipe)
23902	23902-88360	Tube Sub-Assy, Fuel
23902	23902-88461	Tube Sub-Assy, Fuel
9007911001	90079-11001	SCREW
9007911038	90079-11038	New Genuine Part
9011906200	90119-06200	New Genuine Part
9011908456	90119-08456	New Genuine Part
9011908831	90119-08831	New Genuine Part
9011908832	90119-08832	New Genuine Part
9046400610	90464-00610	New Genuine Part
9046911001	90469-11001	New Genuine Part
9092901255	90929-01255	New Genuine Part
9151160612	91511-60612	BOLT
9165160616	91651-60616	BOLT
9166660616	91666-60616	New Genuine Part
9331514014	93315-14014	SCREW

OEM	Part name	Category
16264-88361	Hose, Water By-Pass, No.1	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
16264-88460	Hose, Water By-Pass, No.1	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
16267-88361	Hose, Water By-Pass, No.2	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
16267-88460	Hose, Water By-Pass, No.1	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
22210-74750	Body Assy, Throttle	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
22210-7A070	Body Assy, Throttle	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
22210-7A570	Body Assy, Throttle	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
22215-74380	Gasket, Throttle Body Cover	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
22270-74070	Valve Assy, Idle Speed Control(For Thlottle Body)	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
22270-74220	Valve Assy, Idle Speed Control(For Thlottle Body)	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
22270-74330	Valve Assy, Idle Speed Control(For Thlottle Body)	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
22271-74050	Gasket, Throttle Body	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
22271-88460	Gasket, Throttle Body	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
22271-88461	Gasket, Throttle Body	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
23209-74080	Injector Assy, Fuel	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
23209-74160	Injector Assy, Fuel	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
23260-79165	Injector Assy, Cold Start Fuel	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
23264-74050	Bracket, Fuel Filter	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
23271-88461	Hose, Fuel Pressure Regulator Return	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
23280-74080	Regulator Assy, Fuel Pressure	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
23280-74120	Regulator Assy, Fuel Pressure	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
23291-41010	Insulator, Injector Vibration	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
23293-88360	Gasket(For Oil Strainer)	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
23300-79275	Filter, Fuel(For Efi)	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
23801-88361	Pipe Sub-Assy, Fuel, No.1	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
23814-88361	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
23814-88461	Pipe Sub-Assy, Fuel Delivery	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
23902-88360	Tube Sub-Assy, Fuel	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
23902-88461	Tube Sub-Assy, Fuel	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
23903-88360	Tube Sub-Assy, Fuel, No.3	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
23903-88461	Tube Sub-Assy, Fuel, No.3	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
90079-11001	SCREW	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
90079-11038	New Genuine Part	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
90119-06200	New Genuine Part	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
90119-08456	New Genuine Part	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
90119-08831	New Genuine Part	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
90119-08832	New Genuine Part	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
90301-07001	Ring, O(For Fuel Injector)	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
90301-07024	Ring, O(For Fuel Injector)	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
90401-08003	Bolt, Union	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
90401-12097	Bolt, Union(For Turbo Oil Inlet Pipe)	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
90430-08012	Gasket	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
90430-12026	Gasket	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
90447-12051	Hose, Fuel Pressure Regulator Return	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
90464-00610	New Genuine Part	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
90467-11065	Clip(For Fuel Hose No.2)	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
90467-13001	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
90467-13128	Clamp Or Clip, Hose(For Water By-Pass Hose)	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
90469-11001	New Genuine Part	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
90480-13005	Grommet(For Fuel Injector)	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
90561-08024	Spacer, No.1(For Delivery Pipe)	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
90561-08051	Spacer, No.1(For Delivery Pipe)	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
90929-01255	New Genuine Part	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
91511-60612	BOLT	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
91651-60616	BOLT	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
91666-60616	New Genuine Part	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
93315-14014	SCREW	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
96135-51300	Clamp, Hose	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
96341-11200	Bolt, Union(For Turbo Oil Inlet Pipe)	Fuel Injection System ([12.1989 - 11.1993] (8912-9311)3SGE)
