Search › Model › SW20

SW20

Toyota MR-2-MR-S · 1989 · 5,467 parts · 204 categories

5,467 items

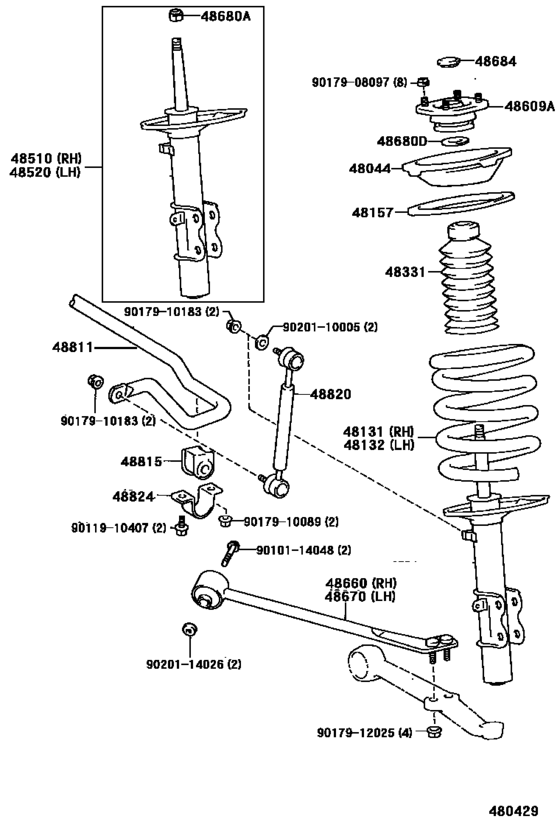

Front Spring & Shock Absorber ([12.1991 - ] (9112- )) 37

#	OEM	Part name
48044	48044-17020	Seat Sub- Assy, Front Spring, No.1
48131	48131-17440	Spring, Front Coil, Rh
48131	48131-17570	Spring, Front Coil, Rh
48157	48157-17020	Insulator, Front Coil Spring, Upper
48331	48331-17030	Bumper, Front Spring, No.1
48510	48510-17090	Absorber Assy, Shock, Front Rh
48510	48510-19336	Absorber Assy, Shock, Front Rh
48510	48510-17110	Absorber Assy, Shock, Front Rh
48510	48510-19315	Absorber Assy, Shock, Front Rh
48510	48510-19335	Absorber Assy, Shock, Front Rh
48520	48520-17090	Absorber Assy, Shock, Front Lh
48520	48520-19056	Absorber Assy, Shock, Front Lh
48520	48520-17110	Absorber Assy, Shock, Front Lh
48520	48520-19035	Absorber Assy, Shock, Front Lh
48520	48520-19055	Absorber Assy, Shock, Front Lh
48609	48609-17030	Support Sub-Assy, Front Suspension
48609	48609-17040	Support Sub-Assy, Front Suspension
48660	48660-17040	Bar Assy, Strut, Rh
48670	48670-17040	Bar Assy, Strut, Lh
48680	94182-11400	Nut(For Idler Arm Support)
48680	90303-22049	Seal, Dust(For Front Suspension Support)
48684	48684-14030	Cover, Bearing Dust
48811	48811-17110	Bar, Stabilizer, Front
48811	48811-17130	Bar, Stabilizer, Front
48815	48815-17100	Bush, Front Stabilizer Bar, No.1
48815	48815-17120	Bush, Front Stabilizer Bar, No.1
48820	48820-17030	Link Assy, Front Stabilizer
48820	48820-17040	Link Assy, Front Stabilizer
48824	48824-17021	Bracket, Stabilizer, Front
9010114048	90101-14048	New Genuine Part
9011910407	90119-10407	Bolt (For Front Lower Ball Joint)
9017908097	90179-08097	Nut(For Front Suspension Support)
9017910089	90179-10089	Nut(For Front Suspension Support)
9017910183	90179-10183	Nut(For Front Stabilizer Link)
9017912025	90179-12025	Nut (For Rear Axle Carrier)
9020110005	90201-10005	Washer, Plate(For Cylinder Head Set)
9020114026	90201-14026	WASHER PLATE

OEM	Part name	Category
48044-17020	Seat Sub- Assy, Front Spring, No.1	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
48131-17440	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
48131-17570	Spring, Front Coil, Rh	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
48157-17020	Insulator, Front Coil Spring, Upper	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
48331-17030	Bumper, Front Spring, No.1	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
48510-17090	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
48510-17110	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
48510-19315	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
48510-19335	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
48510-19336	Absorber Assy, Shock, Front Rh	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
48520-17090	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
48520-17110	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
48520-19035	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
48520-19055	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
48520-19056	Absorber Assy, Shock, Front Lh	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
48609-17030	Support Sub-Assy, Front Suspension	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
48609-17040	Support Sub-Assy, Front Suspension	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
48660-17040	Bar Assy, Strut, Rh	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
48670-17040	Bar Assy, Strut, Lh	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
48684-14030	Cover, Bearing Dust	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
48811-17110	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
48811-17130	Bar, Stabilizer, Front	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
48815-17100	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
48815-17120	Bush, Front Stabilizer Bar, No.1	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
48820-17030	Link Assy, Front Stabilizer	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
48820-17040	Link Assy, Front Stabilizer	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
48824-17021	Bracket, Stabilizer, Front	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
90101-14048	New Genuine Part	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
90119-10407	Bolt (For Front Lower Ball Joint)	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
90179-08097	Nut(For Front Suspension Support)	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
90179-10089	Nut(For Front Suspension Support)	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
90179-10183	Nut(For Front Stabilizer Link)	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
90179-12025	Nut (For Rear Axle Carrier)	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
90201-10005	Washer, Plate(For Cylinder Head Set)	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
90201-14026	WASHER PLATE	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
90303-22049	Seal, Dust(For Front Suspension Support)	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))
94182-11400	Nut(For Idler Arm Support)	Front Spring & Shock Absorber ([12.1991 - ] (9112- ))

Source: Public OEM parts-catalog data
Variants: 2 / 34
Category: 204
Collected: 2026-08-04
