SV620

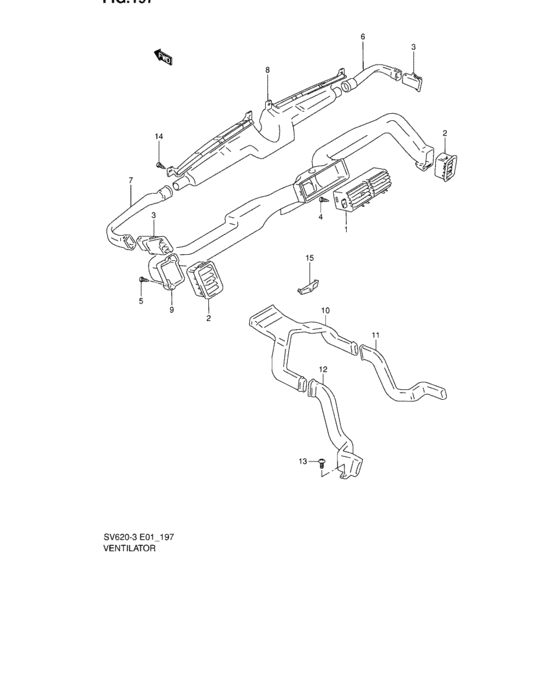

Ventilator (VENTILATOR) 16
| # | OEM | Part name |
|---|---|---|
| 1 | 73610-77E00-T01 | LOUVER, CTR VENT (GRAY) |
| 2 | 73620-77E00-T01 | LOUVER,SIDE VENT (GRAY) |
| 3 | 73671-83010-T01 | NOZZLE,SIDE DEMISTER |
| 4 | 03541-05163-000 | Screw |
| 4 | 03541-0516A-000 | SCREW |
| 6 | 73681-77E00-000 | DUCT,DEMISTER,R |
| 7 | 73691-77E00-000 | DUCT,DEMISTER,L |
| 8 | 74615-60A00-000 | DUCT,DEFROSTER |
| 9 | 74621-77E10-000 | DUCT,VENT |
| 9 | 74621-77E00-000 | DUCT,VENT |
| 10 | 74631-60A10-000 | DUCT,RR |
| 11 | 74632-60A00-000 | HOSE,RR,R |
| 12 | 74633-60A00-000 | HOSE,RR,L |
| 13 | 03142-05123-000 | Screw - Screw, belt cooling duct |
| 13 | 03141-0512A-000 | SCREW - Screw, belt cooling duct |
| 15 | 74911-64A00-000 | CAP,HEATER |
| OEM | Part name | Category |
|---|---|---|
| 03141-0512A-000 | SCREW - Screw, belt cooling duct | Ventilator (VENTILATOR) |
| 03142-05123-000 | Screw - Screw, belt cooling duct | Ventilator (VENTILATOR) |
| 03541-05163-000 | Screw | Ventilator (VENTILATOR) |
| 03541-0516A-000 | SCREW | Ventilator (VENTILATOR) |
| 73610-77E00-T01 | LOUVER, CTR VENT (GRAY) | Ventilator (VENTILATOR) |
| 73620-77E00-T01 | LOUVER,SIDE VENT (GRAY) | Ventilator (VENTILATOR) |
| 73671-83010-T01 | NOZZLE,SIDE DEMISTER | Ventilator (VENTILATOR) |
| 73681-77E00-000 | DUCT,DEMISTER,R | Ventilator (VENTILATOR) |
| 73691-77E00-000 | DUCT,DEMISTER,L | Ventilator (VENTILATOR) |
| 74615-60A00-000 | DUCT,DEFROSTER | Ventilator (VENTILATOR) |
| 74621-77E00-000 | DUCT,VENT | Ventilator (VENTILATOR) |
| 74621-77E10-000 | DUCT,VENT | Ventilator (VENTILATOR) |
| 74631-60A10-000 | DUCT,RR | Ventilator (VENTILATOR) |
| 74632-60A00-000 | HOSE,RR,R | Ventilator (VENTILATOR) |
| 74633-60A00-000 | HOSE,RR,L | Ventilator (VENTILATOR) |
| 74911-64A00-000 | CAP,HEATER | Ventilator (VENTILATOR) |
