Search › Model › SV620
SV620

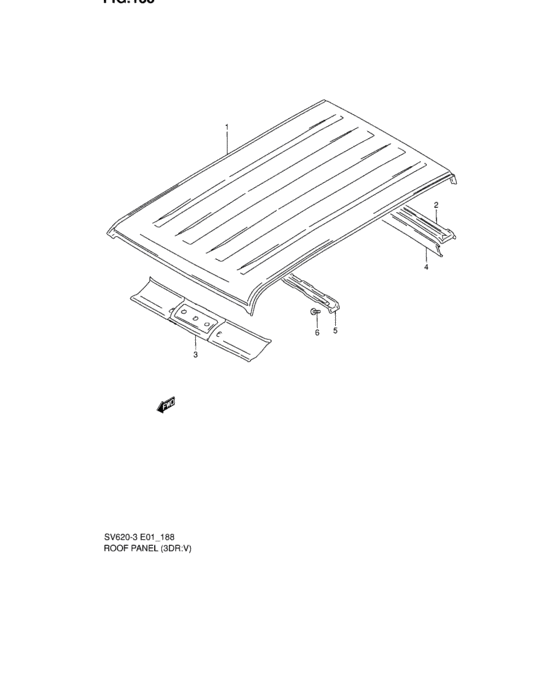

Roof panel (3DR:V) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 65111-61A10-000 | PANEL,ROOF |
| 2 | 65120-61A00-000 | EXT,ROOF RR |
| 3 | 65130-61A20-000 | PANEL,ROOF FRONT INNER |
| 4 | 65141-61A00-000 | PANEL,ROOF BACK INNER |
| 5 | 65981-61A10-000 | REINFORCEMENT,ROOF PANEL |
| 6 | 02142-06103-000 | Screw |
| 6 | 02142-0610B-000 | SCREW - Stopper, cl rlse cam shaft |
| 6 | 02142-0610A-000 | SCREW |
| OEM | Part name | Category |
|---|---|---|
| 02142-06103-000 | Screw | Roof panel (3DR:V) |
| 02142-0610A-000 | SCREW | Roof panel (3DR:V) |
| 02142-0610B-000 | SCREW - Stopper, cl rlse cam shaft | Roof panel (3DR:V) |
| 65111-61A10-000 | PANEL,ROOF | Roof panel (3DR:V) |
| 65120-61A00-000 | EXT,ROOF RR | Roof panel (3DR:V) |
| 65130-61A20-000 | PANEL,ROOF FRONT INNER | Roof panel (3DR:V) |
| 65141-61A00-000 | PANEL,ROOF BACK INNER | Roof panel (3DR:V) |
| 65981-61A10-000 | REINFORCEMENT,ROOF PANEL | Roof panel (3DR:V) |
