SV620

Suzuki VITARA · 5,465 parts · 253 categories

5,465 items

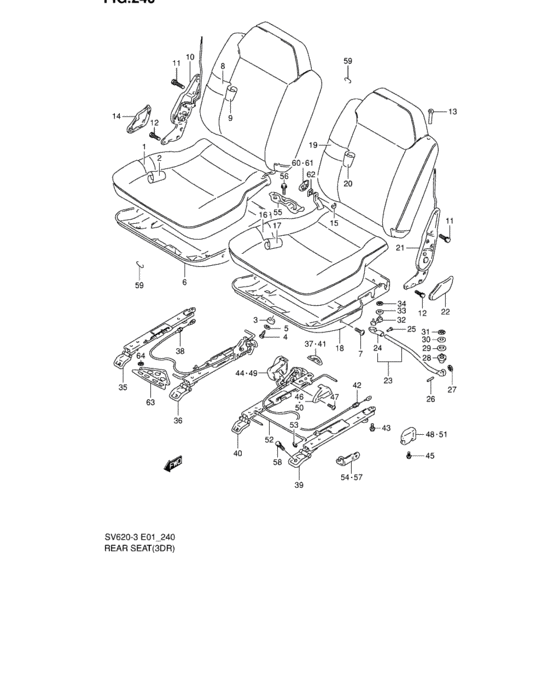

Rear seat (3DR) 122

#	OEM	Part name
1	87105-60A10-000	クッションサブアッシ,リヤシート,ライト
1	87105-60A51-000	CUSHION SUB ASSY,RR SEAT,R
2	87180-60A50-H8K	Cover, cushion rh
2	87180-60A50-K1U	Cover, cushion rh
2	87180-60A50-H8J	Cover, cushion rh
2	87180-60A50-J5A	トリム,リヤクッション,ライト
3	87291-60A10-000	CUSHION,RR SEAT
4	03242-05163-000	Screw
4	03241-0516A-000	SCREW
5	08322-01053-000	Washer
5	08322-0105B-000	WASHER
5	08322-0105A-000	WASHER - Washer, front
6	87191-63A10-T01	ボード,リヤシートクッションアンダ,ライト(グレー)
6	87191-70E00-T01	BOARD,RR SEAT CUSH UND,R
7	87198-56B10-000	SCREW,REAR SEAT CUSHION BOARD
8	87305-60A10-000	バックサブアッシ,リヤシート,ライト
8	87305-70E00-000	BACK S/ASSY,RR SEAT,R
9	87380-70E10-H8K	Cover, back rh
9	87380-70E10-K1U	Cover, back rh
9	87380-70E00-H8K	Cover, back rh
9	87380-70E00-K1U	Cover, back rh
9	87380-70E10-H8J	Cover, back rh
9	87380-70E10-J5A	トリム,リヤバック,ライト
9	87380-70E00-H8J	Cover, back rh
9	87380-70E00-J5A	Cover, back rh
10	87210-60A12-5PK	RECLINING,RR SEAT,R
10	87210-70E00-000	RECLINING ASSY,RR SEAT,R
11	01570-08163-000	Bolt - Bolt, upper
11	01570-0816A-000	Bolt
13	87211-60A10-T01	KNOB,RR SEAT RECLINING
13	87211-70E00-T01	KNOB,RR RECL
14	87221-70E00-5PK	COVER,RR SEAT RECLINING LWR,R
15	08332-11086-000	E ring
15	08332-1108A-000	E RING
16	87106-60A10-000	CUSHION SUB ASSY,REAR SEAT,L
16	87106-60A51-000	CUSHION SUB ASSY,RR SEAT,L
17	87580-60A50-H8K	Cover, cushion lh
17	87580-60A50-K1U	Cover, cushion lh
17	87580-60A50-H8J	Cover, cushion lh
17	87580-60A50-J5A	トリム,リヤクッション,レフト
18	87591-63A10-T01	ボード,リヤシートクッションアンダ,レフト(グレー)
18	87591-70E00-T01	BOARD,RR SEAT CUSH UND,L
19	87306-60A10-000	BACK S/ASSY,RR SEAT,L
19	87306-70E00-000	BACK S/ASSY,RR SEAT,L
20	87780-70E10-H8K	Cover, back lh
20	87780-70E10-K1U	Cover, back lh
20	87780-70E00-H8K	Cover, back lh
20	87780-70E00-K1U	Cover, back lh
20	87780-70E10-H8J	Cover, back lh
20	87780-70E10-J5A	トリム,リヤバック,レフト
20	87780-70E00-H8J	Cover, back lh
20	87780-70E00-J5A	Cover, back lh
21	87610-60A12-5PK	RECLINING,RR SEAT,L
21	87610-70E00-000	RECLINING ASSY,RR SEAT,L
22	87621-70E00-5PK	COVER,RR SEAT RECLINING LWR,L
23	87270-60A11-000	STOPPER,REAR SEAT
23	87270-70E00-000	STOPPER,REAR SEAT
24	87275-60A11-000	HOLDER,STOPPER ROD
25	87276-60A10-000	PIN,HOLDER
26	87278-60A11-000	PIN,REAR SEAT STOPPER
27	09148-03011-000	NUT
28	87144-60A10-000	PIN,REAR SEAT STOPPER ROD
29	87277-60A10-000	WASHER,STOPPER ROD PIN
30	08322-01083-000	WASHER
30	08322-0108B-000	WASHER
30	08322-0108A-000	WASHER
31	09148-08002-000	NUT
32	87279-60A11-000	HOLDER,RR SEAT STOPPER
33	08322-01063-000	Washer
33	08322-0106B-000	WASHER
34	09148-06005-000	Nut seat moldin
34	09148-06008-000	NUT - Nut, adjuster knob
35	87810-60A02-000	Adjuster, rh seat outside
35	87810-70E00-000	ADJUSTER,RR SEAT SLIDE OUTER,R
36	87820-60A03-000	Adjuster, rh seat inside
36	87820-70E00-000	ADJUSTER,RR SEAT SLIDE INNER,R
37	87836-60A00-5PK	KNOB,LOCK LEVER,R
38	87825-60A00-000	CABLE ASSY,RR SEAT LOCK
39	87910-60A02-000	ADJUSTER,RR SEAT SLIDE OUTER,L
39	87910-70E00-000	ADJUSTER,RR SEAT SLIDE OUTER,L
40	87920-60A03-000	Adjuster, lh seat inside
40	87920-70E00-000	ADJUSTER,RR SEAT SLIDE INNER,L
41	87936-60A00-5PK	KNOB,LOCK LEVER,L
43	01570-08253-000	Bolt, upper
43	01570-0825B-000	Bolt
43	01570-0825A-000	Bolt
44	87831-60A10-5PK	COVER,RR SEAT LOCK OUTER,R
44	87831-70E00-5PK	COVER,RR SEAT LOCK OUT,R
45	03242-05103-000	Screw
45	03242-0510B-000	SCREW
45	03241-0510A-000	SCREW
46	87834-60A10-5PK	COVER,RR SEAT LOCK INNER,R
46	87834-70E00-5PK	COVER,RR SEAT LOCK INN,R
47	03241-04123-000	Screw
47	03242-0412B-000	SCREW
48	87835-60A10-5PK	COVER,RR SEAT OUTER LOCK,R
48	87835-70E00-5PK	COVER,RR SEAT OUTER LOCK,R
49	87931-60A10-5PK	COVER,RR SEAT LOCK OUTER,L
49	87931-70E00-5PK	COVER,RR SEAT LOCK OUT,L
50	87934-60A10-5PK	COVER,RR SEAT LOCK INNER,L
50	87934-70E00-5PK	COVER,RR SEAT LOCK INN,L
51	87935-60A10-5PK	COVER,RR SEAT OUTER LOCK,L
51	87935-70E00-5PK	COVER,RR SEAT OUTER LOCK,L
52	87899-60A10-000	ROD,RR SEAT SLIDE ADJUSTER
53	08332-11056-000	E ring
53	08332-1105A-000	E RING
54	87840-60A10-000	STRIKER,SEAT LOCK OUTER,R
54	87840-70E00-000	STRIKER,SEAT LOCK OUTER,R
55	87890-60A11-000	STRIKER,RR SEAT LOCK
55	87890-70E00-000	STRIKER,RR SEAT LOCK
56	01550-10203-000	Bolt - Bolt, lower
56	01550-1020A-000	Bolt - Bolt, bal sprocket
57	87940-60A10-000	STRIKER,SEAT LOCK OUTER,L
57	87940-70E00-000	STRIKER,SEAT LOCK OUTER,L
58	01550-08163-000	Bolt, holder
58	01550-0816B-000	Bolt
58	01550-0816A-000	Bolt - Bolt, rear
59	09387-19001-000	RING
60	87399-70E00-000	PROTECTOR,RR SEAT BACK HINGE,R
61	87799-70E00-000	PROTECTOR,RR SEAT BACK HINGE,L
62	87299-70E00-000	PROTECTOR,RR SEAT CUSH HINGE
63	87199-60A11-000	SUPPROT,RR SEAT LOCK CABLE FR

OEM	Part name	Category
01550-08163-000	Bolt, holder	Rear seat (3DR)
01550-0816A-000	Bolt - Bolt, rear	Rear seat (3DR)
01550-0816B-000	Bolt	Rear seat (3DR)
01550-10203-000	Bolt - Bolt, lower	Rear seat (3DR)
01550-1020A-000	Bolt - Bolt, bal sprocket	Rear seat (3DR)
01570-08163-000	Bolt - Bolt, upper	Rear seat (3DR)
01570-0816A-000	Bolt	Rear seat (3DR)
01570-08253-000	Bolt, upper	Rear seat (3DR)
01570-0825A-000	Bolt	Rear seat (3DR)
01570-0825B-000	Bolt	Rear seat (3DR)
03241-04123-000	Screw	Rear seat (3DR)
03241-0510A-000	SCREW	Rear seat (3DR)
03241-0516A-000	SCREW	Rear seat (3DR)
03242-0412B-000	SCREW	Rear seat (3DR)
03242-05103-000	Screw	Rear seat (3DR)
03242-0510B-000	SCREW	Rear seat (3DR)
03242-05163-000	Screw	Rear seat (3DR)
08322-01053-000	Washer	Rear seat (3DR)
08322-0105A-000	WASHER - Washer, front	Rear seat (3DR)
08322-0105B-000	WASHER	Rear seat (3DR)
08322-01063-000	Washer	Rear seat (3DR)
08322-0106B-000	WASHER	Rear seat (3DR)
08322-01083-000	WASHER	Rear seat (3DR)
08322-0108A-000	WASHER	Rear seat (3DR)
08322-0108B-000	WASHER	Rear seat (3DR)
08332-11056-000	E ring	Rear seat (3DR)
08332-1105A-000	E RING	Rear seat (3DR)
08332-11086-000	E ring	Rear seat (3DR)
08332-1108A-000	E RING	Rear seat (3DR)
09148-03011-000	NUT	Rear seat (3DR)
09148-06005-000	Nut seat moldin	Rear seat (3DR)
09148-06008-000	NUT - Nut, adjuster knob	Rear seat (3DR)
09148-08002-000	NUT	Rear seat (3DR)
09387-19001-000	RING	Rear seat (3DR)
87105-60A10-000	クッションサブアッシ,リヤシート,ライト	Rear seat (3DR)
87105-60A51-000	CUSHION SUB ASSY,RR SEAT,R	Rear seat (3DR)
87106-60A10-000	CUSHION SUB ASSY,REAR SEAT,L	Rear seat (3DR)
87106-60A51-000	CUSHION SUB ASSY,RR SEAT,L	Rear seat (3DR)
87144-60A10-000	PIN,REAR SEAT STOPPER ROD	Rear seat (3DR)
87180-60A50-H8J	Cover, cushion rh	Rear seat (3DR)
87180-60A50-H8K	Cover, cushion rh	Rear seat (3DR)
87180-60A50-J5A	トリム,リヤクッション,ライト	Rear seat (3DR)
87180-60A50-K1U	Cover, cushion rh	Rear seat (3DR)
87191-63A10-T01	ボード,リヤシートクッションアンダ,ライト(グレー)	Rear seat (3DR)
87191-70E00-T01	BOARD,RR SEAT CUSH UND,R	Rear seat (3DR)
87198-56B10-000	SCREW,REAR SEAT CUSHION BOARD	Rear seat (3DR)
87199-60A11-000	SUPPROT,RR SEAT LOCK CABLE FR	Rear seat (3DR)
87210-60A12-5PK	RECLINING,RR SEAT,R	Rear seat (3DR)
87210-70E00-000	RECLINING ASSY,RR SEAT,R	Rear seat (3DR)
87211-60A10-T01	KNOB,RR SEAT RECLINING	Rear seat (3DR)
87211-70E00-T01	KNOB,RR RECL	Rear seat (3DR)
87221-70E00-5PK	COVER,RR SEAT RECLINING LWR,R	Rear seat (3DR)
87270-60A11-000	STOPPER,REAR SEAT	Rear seat (3DR)
87270-70E00-000	STOPPER,REAR SEAT	Rear seat (3DR)
87275-60A11-000	HOLDER,STOPPER ROD	Rear seat (3DR)
87276-60A10-000	PIN,HOLDER	Rear seat (3DR)
87277-60A10-000	WASHER,STOPPER ROD PIN	Rear seat (3DR)
87278-60A11-000	PIN,REAR SEAT STOPPER	Rear seat (3DR)
87279-60A11-000	HOLDER,RR SEAT STOPPER	Rear seat (3DR)
87291-60A10-000	CUSHION,RR SEAT	Rear seat (3DR)
87299-70E00-000	PROTECTOR,RR SEAT CUSH HINGE	Rear seat (3DR)
87305-60A10-000	バックサブアッシ,リヤシート,ライト	Rear seat (3DR)
87305-70E00-000	BACK S/ASSY,RR SEAT,R	Rear seat (3DR)
87306-60A10-000	BACK S/ASSY,RR SEAT,L	Rear seat (3DR)
87306-70E00-000	BACK S/ASSY,RR SEAT,L	Rear seat (3DR)
87380-70E00-H8J	Cover, back rh	Rear seat (3DR)
87380-70E00-H8K	Cover, back rh	Rear seat (3DR)
87380-70E00-J5A	Cover, back rh	Rear seat (3DR)
87380-70E00-K1U	Cover, back rh	Rear seat (3DR)
87380-70E10-H8J	Cover, back rh	Rear seat (3DR)
87380-70E10-H8K	Cover, back rh	Rear seat (3DR)
87380-70E10-J5A	トリム,リヤバック,ライト	Rear seat (3DR)
87380-70E10-K1U	Cover, back rh	Rear seat (3DR)
87399-70E00-000	PROTECTOR,RR SEAT BACK HINGE,R	Rear seat (3DR)
87580-60A50-H8J	Cover, cushion lh	Rear seat (3DR)
87580-60A50-H8K	Cover, cushion lh	Rear seat (3DR)
87580-60A50-J5A	トリム,リヤクッション,レフト	Rear seat (3DR)
87580-60A50-K1U	Cover, cushion lh	Rear seat (3DR)
87591-63A10-T01	ボード,リヤシートクッションアンダ,レフト(グレー)	Rear seat (3DR)
87591-70E00-T01	BOARD,RR SEAT CUSH UND,L	Rear seat (3DR)
87610-60A12-5PK	RECLINING,RR SEAT,L	Rear seat (3DR)
87610-70E00-000	RECLINING ASSY,RR SEAT,L	Rear seat (3DR)
87621-70E00-5PK	COVER,RR SEAT RECLINING LWR,L	Rear seat (3DR)
87780-70E00-H8J	Cover, back lh	Rear seat (3DR)
87780-70E00-H8K	Cover, back lh	Rear seat (3DR)
87780-70E00-J5A	Cover, back lh	Rear seat (3DR)
87780-70E00-K1U	Cover, back lh	Rear seat (3DR)
87780-70E10-H8J	Cover, back lh	Rear seat (3DR)
87780-70E10-H8K	Cover, back lh	Rear seat (3DR)
87780-70E10-J5A	トリム,リヤバック,レフト	Rear seat (3DR)
87780-70E10-K1U	Cover, back lh	Rear seat (3DR)
87799-70E00-000	PROTECTOR,RR SEAT BACK HINGE,L	Rear seat (3DR)
87810-60A02-000	Adjuster, rh seat outside	Rear seat (3DR)
87810-70E00-000	ADJUSTER,RR SEAT SLIDE OUTER,R	Rear seat (3DR)
87820-60A03-000	Adjuster, rh seat inside	Rear seat (3DR)
87820-70E00-000	ADJUSTER,RR SEAT SLIDE INNER,R	Rear seat (3DR)
87825-60A00-000	CABLE ASSY,RR SEAT LOCK	Rear seat (3DR)
87831-60A10-5PK	COVER,RR SEAT LOCK OUTER,R	Rear seat (3DR)
87831-70E00-5PK	COVER,RR SEAT LOCK OUT,R	Rear seat (3DR)
87834-60A10-5PK	COVER,RR SEAT LOCK INNER,R	Rear seat (3DR)
87834-70E00-5PK	COVER,RR SEAT LOCK INN,R	Rear seat (3DR)
87835-60A10-5PK	COVER,RR SEAT OUTER LOCK,R	Rear seat (3DR)
87835-70E00-5PK	COVER,RR SEAT OUTER LOCK,R	Rear seat (3DR)
87836-60A00-5PK	KNOB,LOCK LEVER,R	Rear seat (3DR)
87840-60A10-000	STRIKER,SEAT LOCK OUTER,R	Rear seat (3DR)
87840-70E00-000	STRIKER,SEAT LOCK OUTER,R	Rear seat (3DR)
87890-60A11-000	STRIKER,RR SEAT LOCK	Rear seat (3DR)
87890-70E00-000	STRIKER,RR SEAT LOCK	Rear seat (3DR)
87899-60A10-000	ROD,RR SEAT SLIDE ADJUSTER	Rear seat (3DR)
87910-60A02-000	ADJUSTER,RR SEAT SLIDE OUTER,L	Rear seat (3DR)
87910-70E00-000	ADJUSTER,RR SEAT SLIDE OUTER,L	Rear seat (3DR)
87920-60A03-000	Adjuster, lh seat inside	Rear seat (3DR)
87920-70E00-000	ADJUSTER,RR SEAT SLIDE INNER,L	Rear seat (3DR)
87931-60A10-5PK	COVER,RR SEAT LOCK OUTER,L	Rear seat (3DR)
87931-70E00-5PK	COVER,RR SEAT LOCK OUT,L	Rear seat (3DR)
87934-60A10-5PK	COVER,RR SEAT LOCK INNER,L	Rear seat (3DR)
87934-70E00-5PK	COVER,RR SEAT LOCK INN,L	Rear seat (3DR)
87935-60A10-5PK	COVER,RR SEAT OUTER LOCK,L	Rear seat (3DR)
87935-70E00-5PK	COVER,RR SEAT OUTER LOCK,L	Rear seat (3DR)
87936-60A00-5PK	KNOB,LOCK LEVER,L	Rear seat (3DR)
87940-60A10-000	STRIKER,SEAT LOCK OUTER,L	Rear seat (3DR)
87940-70E00-000	STRIKER,SEAT LOCK OUTER,L	Rear seat (3DR)
