SV620

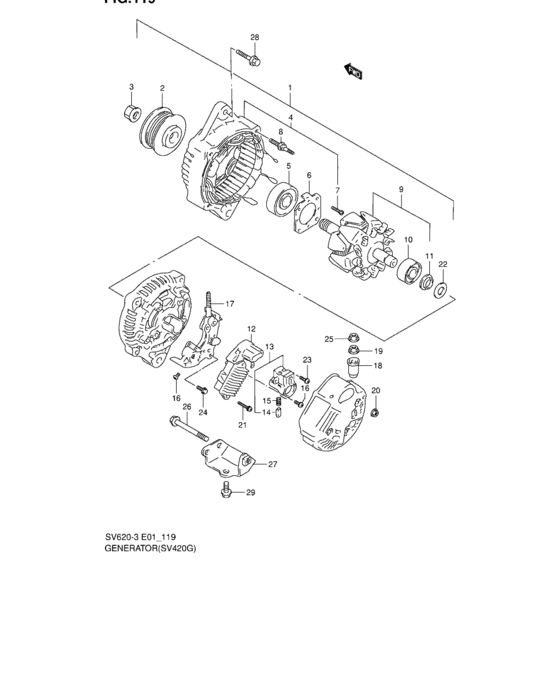

Generator (SV420G) 47
| # | OEM | Part name |
|---|---|---|
| 1 | 31400-77E23-000 | GENERATOR ASSY |
| 1 | 31400-77E23-REM | Alternator |
| 1 | 31400-77E25-000 | GENERATOR ASSY |
| 2 | 31171-77E20-000 | PULLEY |
| 3 | 31775-86510-000 | NUT |
| 4 | 31580-60G12-000 | Frame assy,drive end |
| 4 | 31580-60G30-000 | FRAME ASSY,DRIVE END |
| 5 | 31582-75F00-000 | Bearing |
| 5 | 31582-60G14-000 | BEARING,BALL |
| 6 | 31585-82111-000 | RETAINER,BEARING |
| 7 | 02112-04163-000 | Screw |
| 7 | 02112-0416A-000 | SCREW |
| 8 | 31587-82110-000 | Bolt |
| 9 | 31710-60G12-000 | Rotor assy |
| 9 | 31710-60G30-000 | ROTOR ASSY |
| 10 | 31612-75F00-000 | Bearing |
| 10 | 31612-60G14-000 | BEARING |
| 11 | 31613-82610-000 | COVER,BEARING |
| 12 | 32500-60G10-000 | REGULATOR ASSY |
| 12 | 32500-60G13-000 | REGULATOR ASSY,GENERATOR |
| 13 | 31656-60G10-000 | HOLDER ASSY,BRUSH |
| 14 | 31631-82610-000 | BRUSH |
| 15 | 31635-82610-000 | SPRING,BRUSH |
| 16 | 02112-04063-000 | Screw |
| 16 | 02112-0406B-000 | SCREW |
| 17 | 31621-75F00-000 | HOLDER ASSY,RECTIFIER |
| 18 | 31514-82610-000 | INSULATOR,TERMINAL |
| 19 | 08361-15063-000 | Nut |
| 19 | 08361-1506A-000 | NUT |
| 20 | 08316-10053-000 | Nut |
| 20 | 08316-1005A-000 | NUT |
| 21 | 02112-74253-000 | SCREW |
| 21 | 32642-80G10-000 | SCREW |
| 22 | 31615-60G10-000 | WASHER |
| 23 | 31517-75F00-000 | SCREW |
| 24 | 31599-75F00-000 | Bolt |
| 25 | 08316-10063-000 | Nut |
| 25 | 08316-1006B-000 | NUT |
| 26 | 01550-10853-000 | Bolt |
| 26 | 01550-1085A-000 | Bolt |
| 27 | 11551-77EA0-000 | BRACKET,GENERATOR |
| 28 | 01550-08253-000 | Bolt, rear |
| 28 | 01550-0825B-000 | Bolt |
| 28 | 01550-0825A-000 | Bolt |
| 29 | 01550-10253-000 | Bolt - Bolt, rr swgarm bracket |
| 29 | 01550-1025B-000 | Bolt - Bolt, rr swgarm bracket, l |
| 29 | 01550-1025A-000 | Bolt - Bolt, drive gear |
| OEM | Part name | Category |
|---|---|---|
| 01550-08253-000 | Bolt, rear | Generator (SV420G) |
| 01550-0825A-000 | Bolt | Generator (SV420G) |
| 01550-0825B-000 | Bolt | Generator (SV420G) |
| 01550-10253-000 | Bolt - Bolt, rr swgarm bracket | Generator (SV420G) |
| 01550-1025A-000 | Bolt - Bolt, drive gear | Generator (SV420G) |
| 01550-1025B-000 | Bolt - Bolt, rr swgarm bracket, l | Generator (SV420G) |
| 01550-10853-000 | Bolt | Generator (SV420G) |
| 01550-1085A-000 | Bolt | Generator (SV420G) |
| 02112-04063-000 | Screw | Generator (SV420G) |
| 02112-0406B-000 | SCREW | Generator (SV420G) |
| 02112-04163-000 | Screw | Generator (SV420G) |
| 02112-0416A-000 | SCREW | Generator (SV420G) |
| 02112-74253-000 | SCREW | Generator (SV420G) |
| 08316-10053-000 | Nut | Generator (SV420G) |
| 08316-1005A-000 | NUT | Generator (SV420G) |
| 08316-10063-000 | Nut | Generator (SV420G) |
| 08316-1006B-000 | NUT | Generator (SV420G) |
| 08361-15063-000 | Nut | Generator (SV420G) |
| 08361-1506A-000 | NUT | Generator (SV420G) |
| 11551-77EA0-000 | BRACKET,GENERATOR | Generator (SV420G) |
| 31171-77E20-000 | PULLEY | Generator (SV420G) |
| 31400-77E23-000 | GENERATOR ASSY | Generator (SV420G) |
| 31400-77E23-REM | Alternator | Generator (SV420G) |
| 31400-77E25-000 | GENERATOR ASSY | Generator (SV420G) |
| 31514-82610-000 | INSULATOR,TERMINAL | Generator (SV420G) |
| 31517-75F00-000 | SCREW | Generator (SV420G) |
| 31580-60G12-000 | Frame assy,drive end | Generator (SV420G) |
| 31580-60G30-000 | FRAME ASSY,DRIVE END | Generator (SV420G) |
| 31582-60G14-000 | BEARING,BALL | Generator (SV420G) |
| 31582-75F00-000 | Bearing | Generator (SV420G) |
| 31585-82111-000 | RETAINER,BEARING | Generator (SV420G) |
| 31587-82110-000 | Bolt | Generator (SV420G) |
| 31599-75F00-000 | Bolt | Generator (SV420G) |
| 31612-60G14-000 | BEARING | Generator (SV420G) |
| 31612-75F00-000 | Bearing | Generator (SV420G) |
| 31613-82610-000 | COVER,BEARING | Generator (SV420G) |
| 31615-60G10-000 | WASHER | Generator (SV420G) |
| 31621-75F00-000 | HOLDER ASSY,RECTIFIER | Generator (SV420G) |
| 31631-82610-000 | BRUSH | Generator (SV420G) |
| 31635-82610-000 | SPRING,BRUSH | Generator (SV420G) |
| 31656-60G10-000 | HOLDER ASSY,BRUSH | Generator (SV420G) |
| 31710-60G12-000 | Rotor assy | Generator (SV420G) |
| 31710-60G30-000 | ROTOR ASSY | Generator (SV420G) |
| 31775-86510-000 | NUT | Generator (SV420G) |
| 32500-60G10-000 | REGULATOR ASSY | Generator (SV420G) |
| 32500-60G13-000 | REGULATOR ASSY,GENERATOR | Generator (SV420G) |
| 32642-80G10-000 | SCREW | Generator (SV420G) |
