SV620

Suzuki VITARA · 5,465 parts · 253 categories
SV620 ×

← Back to categories

5,465 items

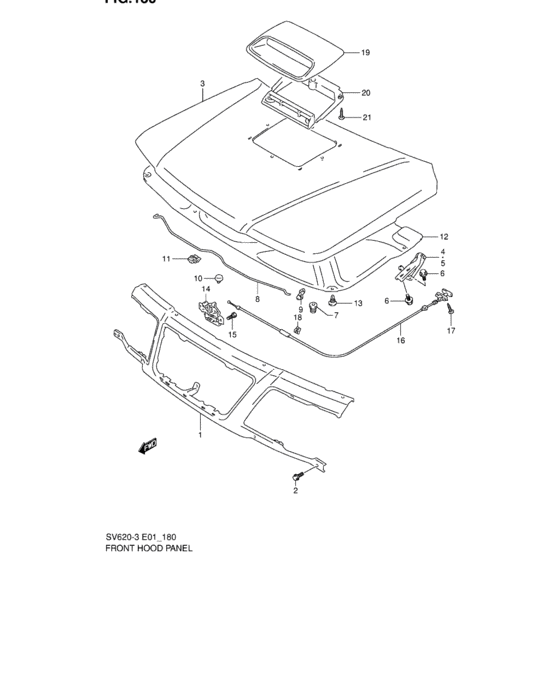

Front hood panel (FRONT HOOD PANEL) 35
#OEMPart name
1 58110-77E01-000 PANEL,FRONT
2 02162-06123-000 Bolt (6x12)
2 02162-0612B-000 SCREW - Bolt
2 02162-0612A-000 SCREW - Bolt, bracket
3 58300-77810-000 PANEL SET FRT HOODR S DOT
3 58300-77811-000 PANEL SET,FRONT HOOD
3 58300-77E30-000 PANEL ASSY,FRONT HOOD
4 58410-79E00-000 HINGE,FR HOOD,R
5 58430-79E00-000 HINGE,FR HOOD,L
6 01580-06163-000 Bolt - Bolt, rear
6 01580-0616A-000 Bolt
7 72372-82000-000 CUSHION,BACK DR SIDE
8 72431-60A02-000 STAY,FRONT HOOD
9 09209-14001-000 LINKAGE
10 09321-10023-000 CUSHION
11 09403-07311-000 CLAMP
12 75270-77E00-000 SILENCER,FRONT HOOD
12 75270-77E10-000 SILENCER,FRONT HOOD
13 09409-06309-5ES CLIP(BLACK)
14 82110-65D01-000 LATCH HOOD
14 82110-65D03-000 LATCH,HOOD
14 82110-65D11-000 LATCH HOOD
14 82110-65D13-000 LATCH,HOOD
15 01580-06123-000 Bolt
15 01580-0612B-000 Bolt
15 01580-0612A-000 Bolt
16 82160-77E00-000 CABLE,HOOD LATCH RELEASE
17 02142-05123-000 Screw 5x12
17 02142-0512A-000 SCREW - Screw, lower
18 09403-06410-000 CLAMP
19 72491-77E00-000 INTAKE,FR HOOD
20 72492-77E00-0CB DUCT,FR HOOD INTAKE
21 03541-05103-000 Screw5 x 10
21 03541-0510B-000 SCREW
21 03541-0510A-000 SCREW - Screw, rr cover
